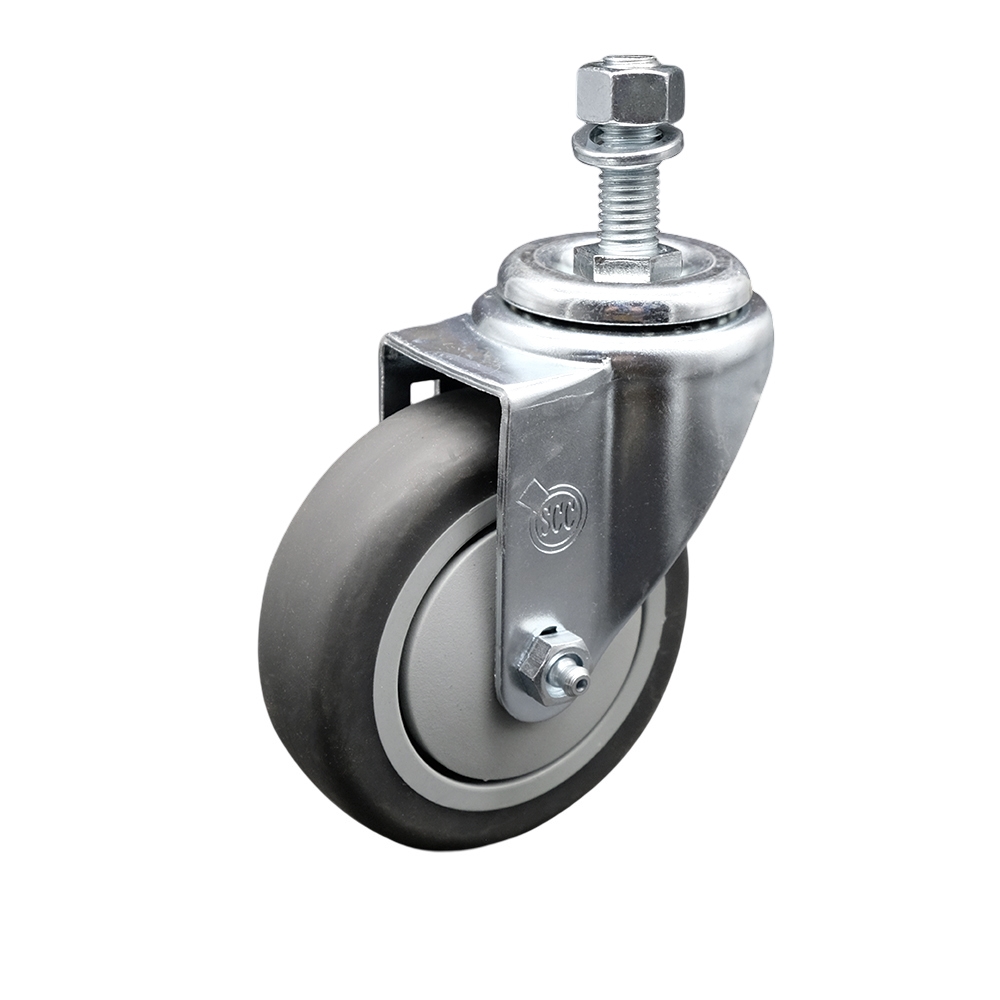

Thermoplastic Rubber Swivel Threaded Stem Caster - 4" x 1.25" Gray Wheel and 12MM Metric Stem - 250 lbs Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-TS20S414-TPRB-M1215

Condition

new

Quantity

1

UPC

670533929811

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

1.55 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

250

Color

Swivel - No Brake - Gray

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Threaded Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Swivels

Yes

Size

4" Wheel

Stem

12MM-1.75 x 1-1/2" Threaded Stem

Stem Diameter

12MM

Stem Length

1.5

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

1.5

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Tread on Polyolefin Core

Wheel Size

4" x 1-1/4"

Wheel Type

Thermoplastic Rubber

Description

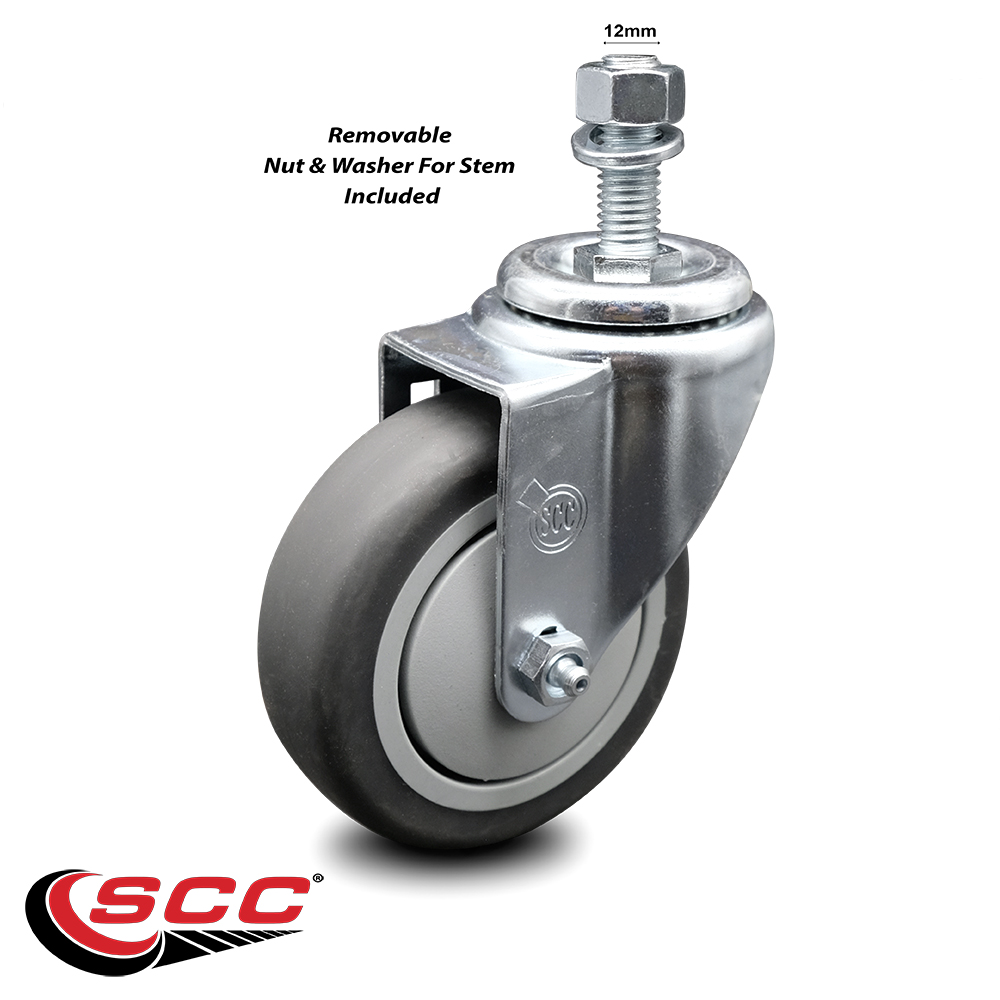

Listing is for one (1) Service Caster Series #20 swivel caster with a 4" diameter by 1-1/4" wide thermoplastic rubber wheel and a 12mm-1.75 X 1-1/2" metric threaded stem capable of supporting 250 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 thermoplastic rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the soft, quiet and non-marking thermoplastic rubber wheels perform especially well on hard surfaces such as concrete, tile, and wood. They are resistant to water, oil, and grease and will keep you safely moving forward. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. • Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5" & 6": 300 lbs Capacity/Caster • All casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. • Brake options include a top lock brake (TLB), a total lock brake (TTL), or a posi lock brake (PLB). The top lock brake (TLB) and the posi lock brake (PLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
