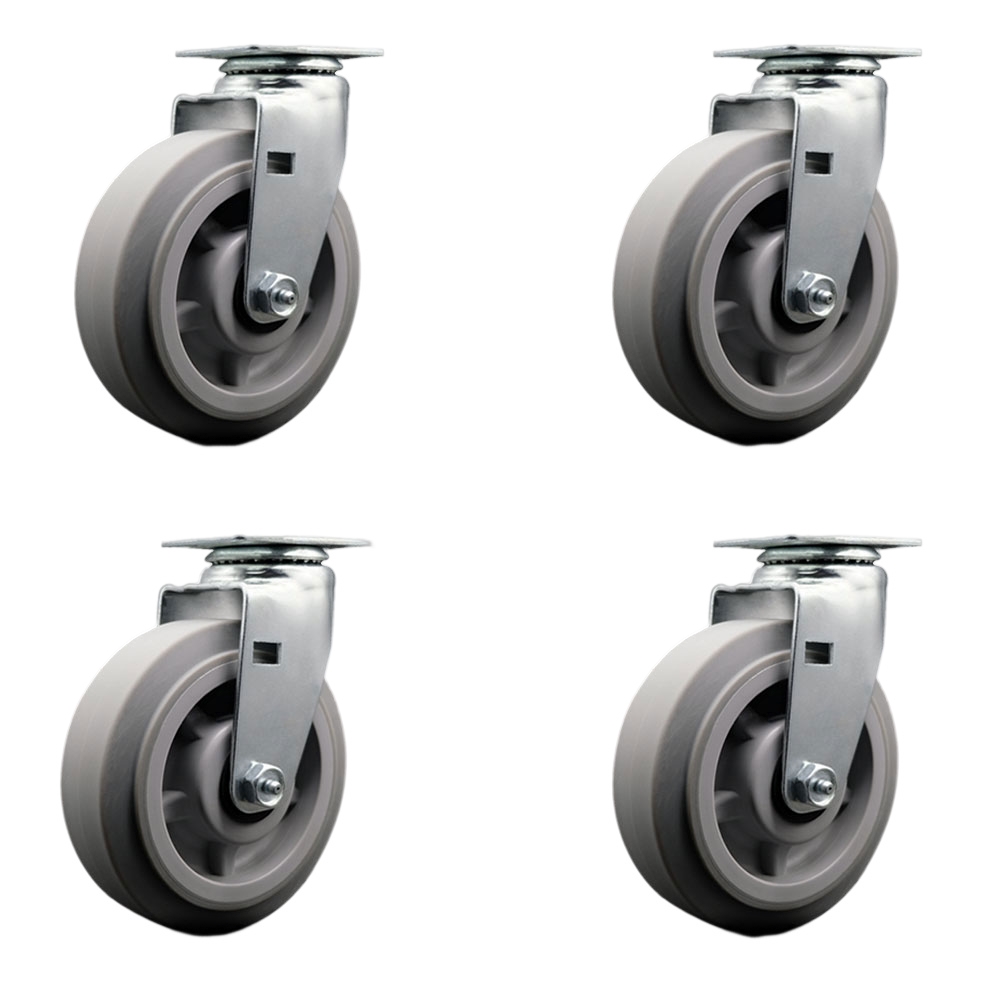

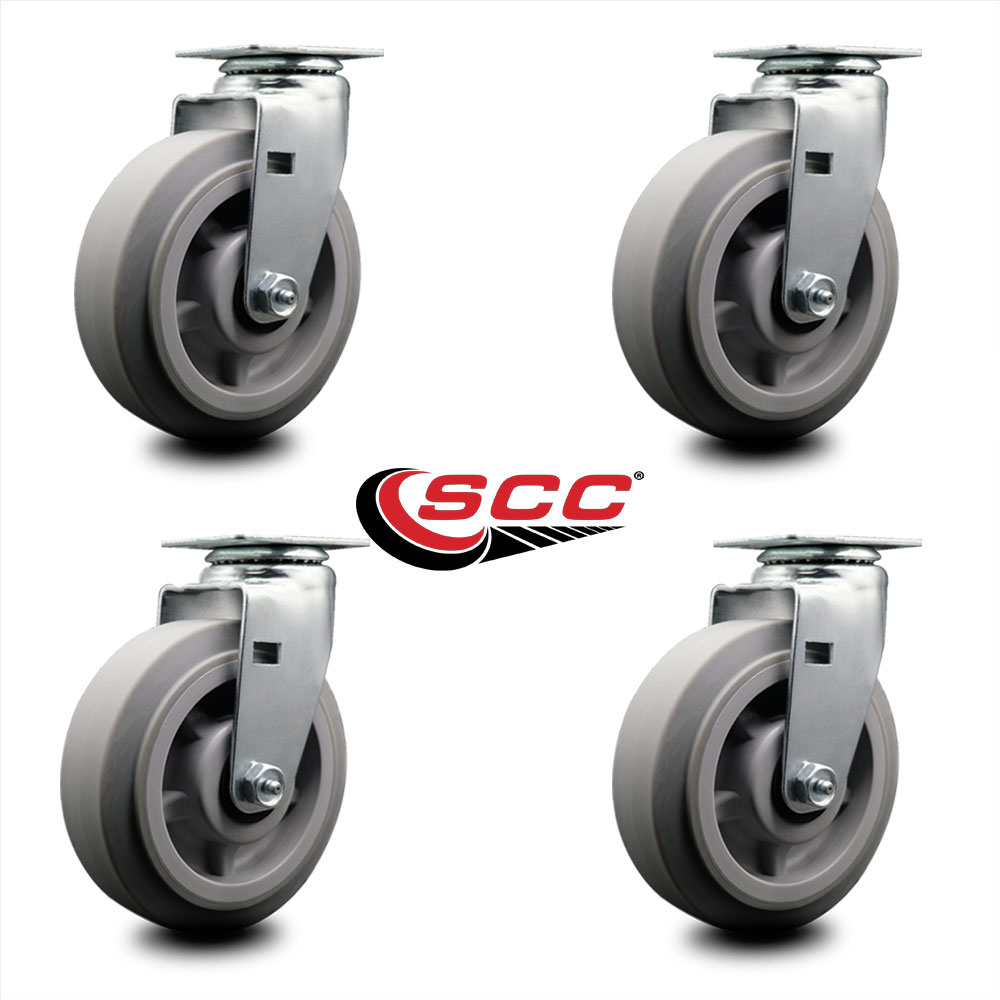

Swivel Top Plate Caster Set – Gray 6 Inch by 2 Inch Thermoplastic Rubber Flat Tread Wheel – Roller Bearing – 1,800 lbs. Total Capacity – Includes 4 Swivel Casters – Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-20S620-TPRRF-4

Condition

new

Quantity

4

UPC

734005076738

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

16 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

1800

Color

4 Swivel - No Brakes - Gray

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

6" Wheel

Top Plate Size

2-3/8" x 3-5/8"

Tread Width

2

Tread Width UofM

inches

Type

(4) Swivel casters

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Tread on Polyolefin Core

Wheel Size

6" x 2"

Wheel Type

Thermoplastic Rubber

Description

Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) swivel casters with 6” diameter by 2” wide thermoplastic rubber flat tread wheel and roller bearings. Supports a total weight of 1,800lbs (350lbs/per caster). When searching for a reliable and durable solution for light and medium duty projects, consider Service Caster’s Series 20 top plate thermoplastic rubber flat tread on polyolefin core casters. The soft flat tread is made of thermoplastic rubber that is non-marking and non-marring, and on the polyolefin core provides a long lasting, high capacity wheel that is capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 20, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 4” Wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/2” mounting height. • Weight Capacity: 4": 300 lbs Capacity Per Caster; 5": 350 lbs Capacity Per Caster; 6": 450 lbs Capacity Per Caster • Top plate measures at 2-3/8" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.
