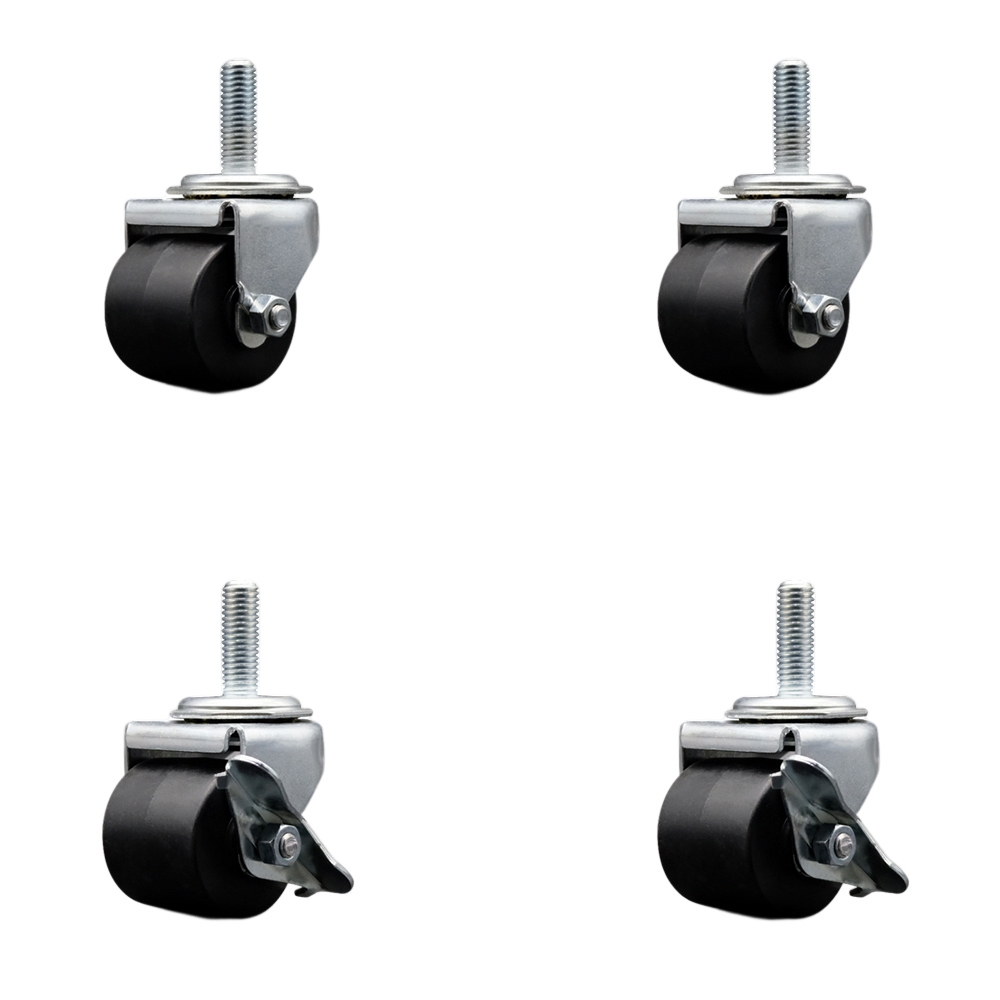

Swivel Threaded Stem Caster - 2 Inch Polyolefin Wheel - 1/2 Inch - 13 TPI by 1-1/2 Inch Threaded Stem - 1,200 lbs. Total Capacity - 2 Swivel Casters with Brakes and 2 Swivel Casters - Service Caster

Details

Manufacturer

Service Caster

Model

Series #04

SKU

SCC-TS04S211316-POS-121315-2-SLB-2

Condition

new

Quantity

4

UPC

734005083286

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

5 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

1200

Color

1/2" Stem - 4 Swivel w/2 Side Lock Brakes - Set of 4

Durometer

70D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

2-3/4"

Locking Type

Side Lock Brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyolefin

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

2-3/4"

Mounting Type

Threaded Stem

Plating/Coating

Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

Threaded Stem - 2" Wheel - Polyolefin

Stem

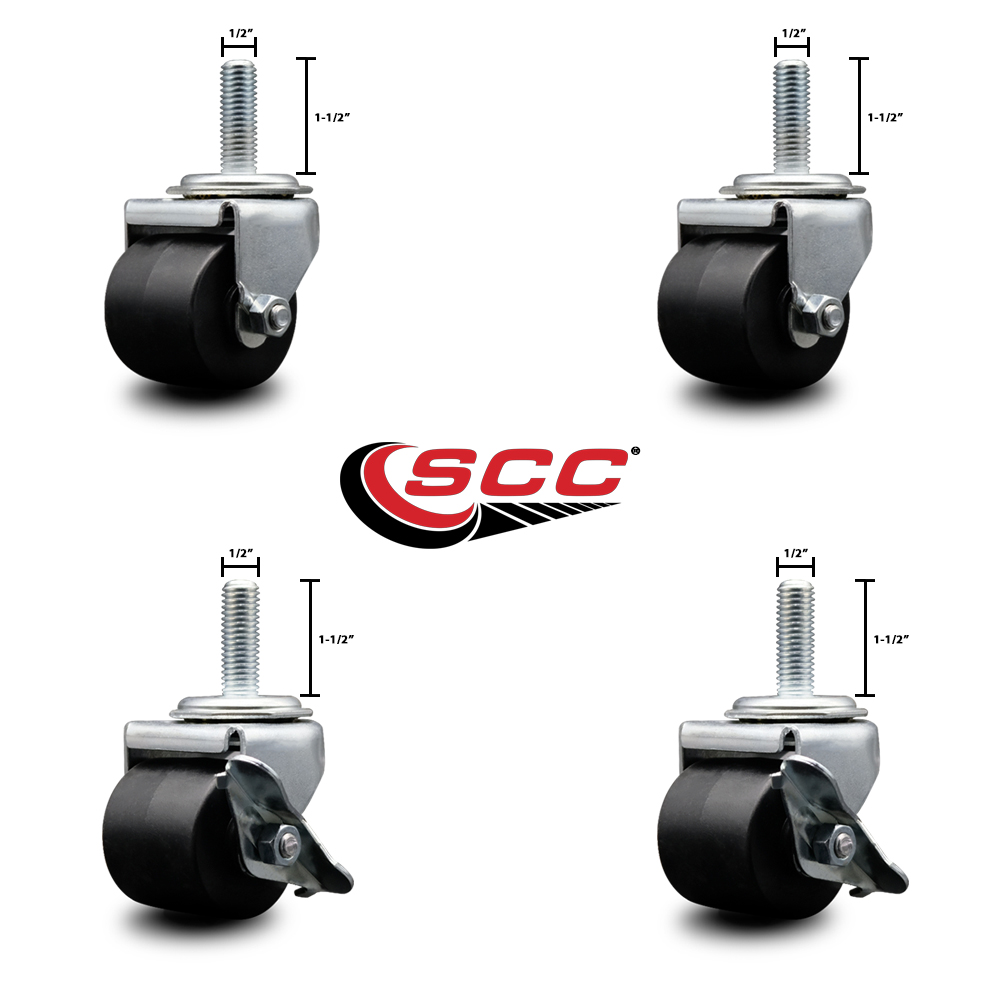

1/2"-13 diameter x 1-1/2" length threaded stem

Stem Diameter

1/2"

Stem Length

1.5

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

1.5

Type

(2) swivel casters & (2) swivel casters w/side lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

2

Wheel Diameter UofM

inches

Wheel Material

Polyolefin

Wheel Size

2"

Wheel Type

Polyolefin

Description

Listing is for four (4) Service Caster Series #04 heavy duty low profile business machine threaded stem swivel casters, two (2) swivel with brake casters and two (2) swivel casters. Features a 2" diameter by 1-13/16" wide polyolefin wheels and 1/2 inch diameter 13 TPI by 1-1/2 inch long threaded stems. Set of 4 supports 1,200 pounds (lbs.) (300 lbs./caster). When searching for a reliable and durable solution for your business machine needs, consider Service Caster’s low profile casters. The Service Caster 04 series is ideal for copiers, business machines, vending machines, displays, computer storage devices, and electronics cabinets. The low profile design allows for an unlimited amount of uses where casters are a necessity without raising the unit further than necessary. Mounting options include top plate, grip ring, standard and metric threaded stem sizes. Also, the innovative expanding stem, that can easily adapt to the inside diameter of an opening, allowing for a secure fit in round or square tubes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Wheel: 2" - Polyolefin • Weight Capacity: 300 lbs./caster • Threaded Stem Size: 1/2" diameter - 13 TPI x 1-1/2" length • Overall Height: 2-3/4"
