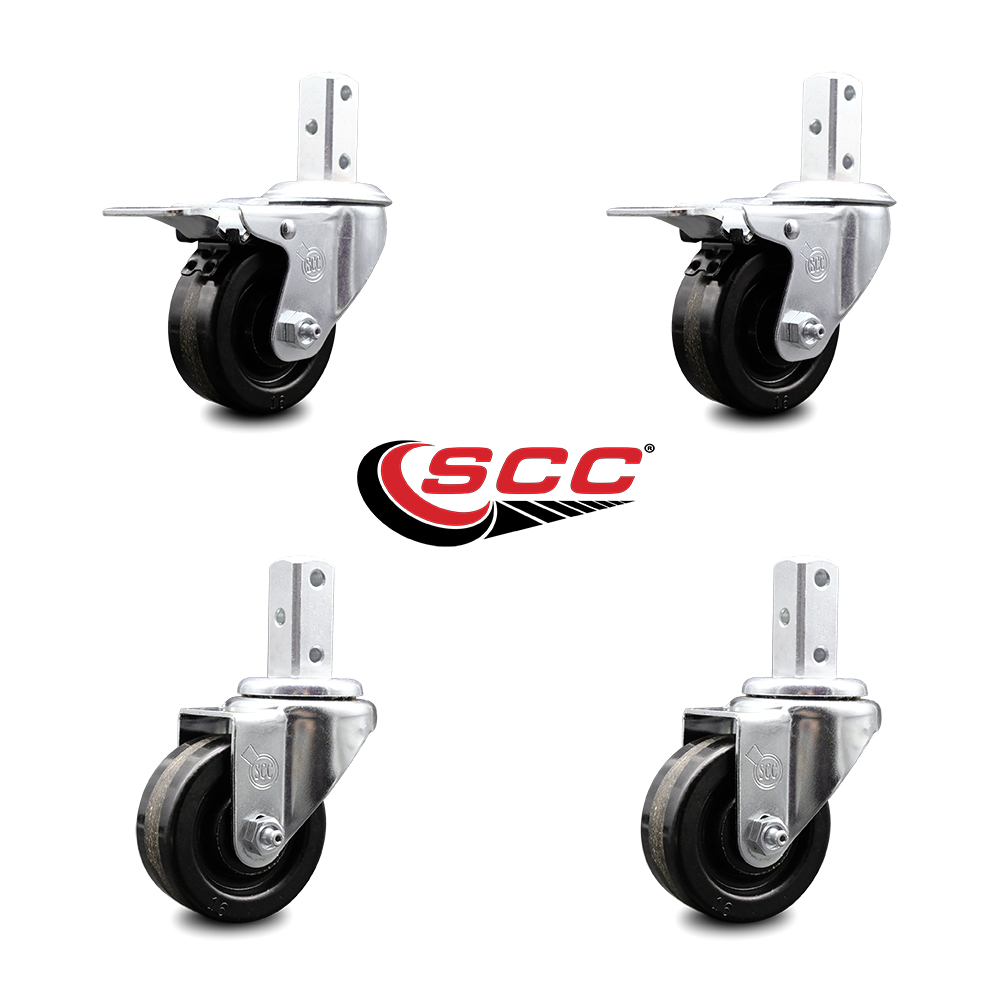

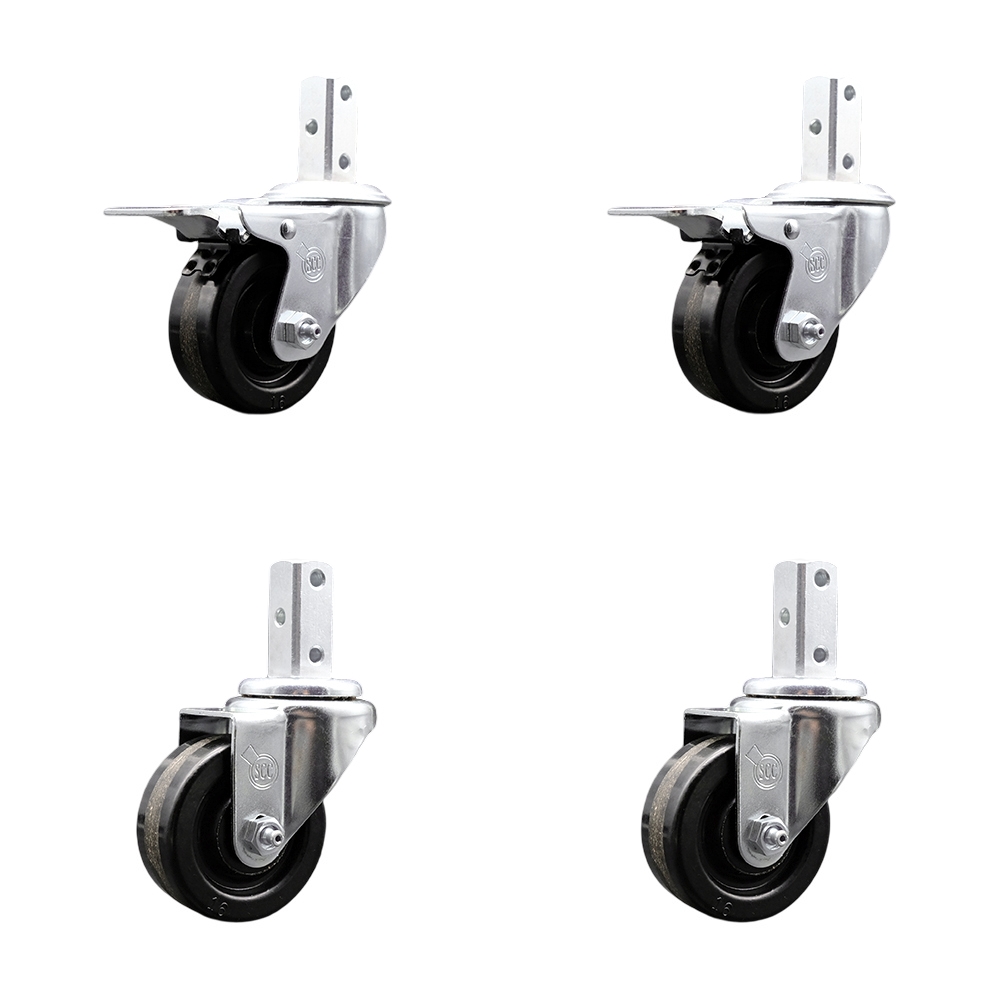

Swivel Square Stem Caster Set 4 w/3.5” x 1.25” Black Phenolic Wheel-7/8” x 2” Square Stem with (3) 17/64” Diameter Mounting Holes-Includes 2 Total Lock Brakes-1200lbs. Cpty/Caster-Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-SQTTL20S3514-PHS-78-2-S-2

Condition

new

Quantity

4

UPC

011586606425

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

10 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

1200

Color

4 Swivel w/2 Total Lock Brakes

Durometer

90D

Heat Capacity

-50 degrees F to 250 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

4-5/8"

Locking Type

Total lock brake

Lower Temperature

-50

Lower Temperature UofM

F

Material Type

Phenolic

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

4-5/8"

Mounting Type

Square Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

3.5" Wheel - 7/8" Stem

Stem

7/8" x 2" Square Stem

Stem Diameter

7/8"

Stem Length

2

Stem Length UofM

inches

Stem Type

Square Stem

Tread Width

1.25

Tread Width UofM

inches

Type

(2) swivel casters w/total lock brakes & (2) swivel casters

Wheel Bearing

Plain Bore

Wheel Diameter

3.5

Wheel Diameter UofM

inches

Wheel Material

Phenolic

Wheel Size

3-1/2" x 1-1/4"

Wheel Type

Phenolic

Description

Listing is for four (4) Service Caster Series #20 swivel casters, two (2) swivel & (2) swivel with total lock brakes, with a 3-1/2” diameter by 1-1/4” wide black phenolic wheels and a 7/8" square stem. Supports a total weight of 1,200lbs (300lbs/caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 square stem phenolic casters. The Service Caster Series 20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. The square stems are designed to be bolted or riveted onto the inside of angled iron legs or against any flat surface. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height. • Weight Capacity: 3",3.5", 4", 5", and 6": 300 lbs Capacity/Caster • All casters feature a 7/8” x 2” square stem with (3) 17/64” diameter mounting holes. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
