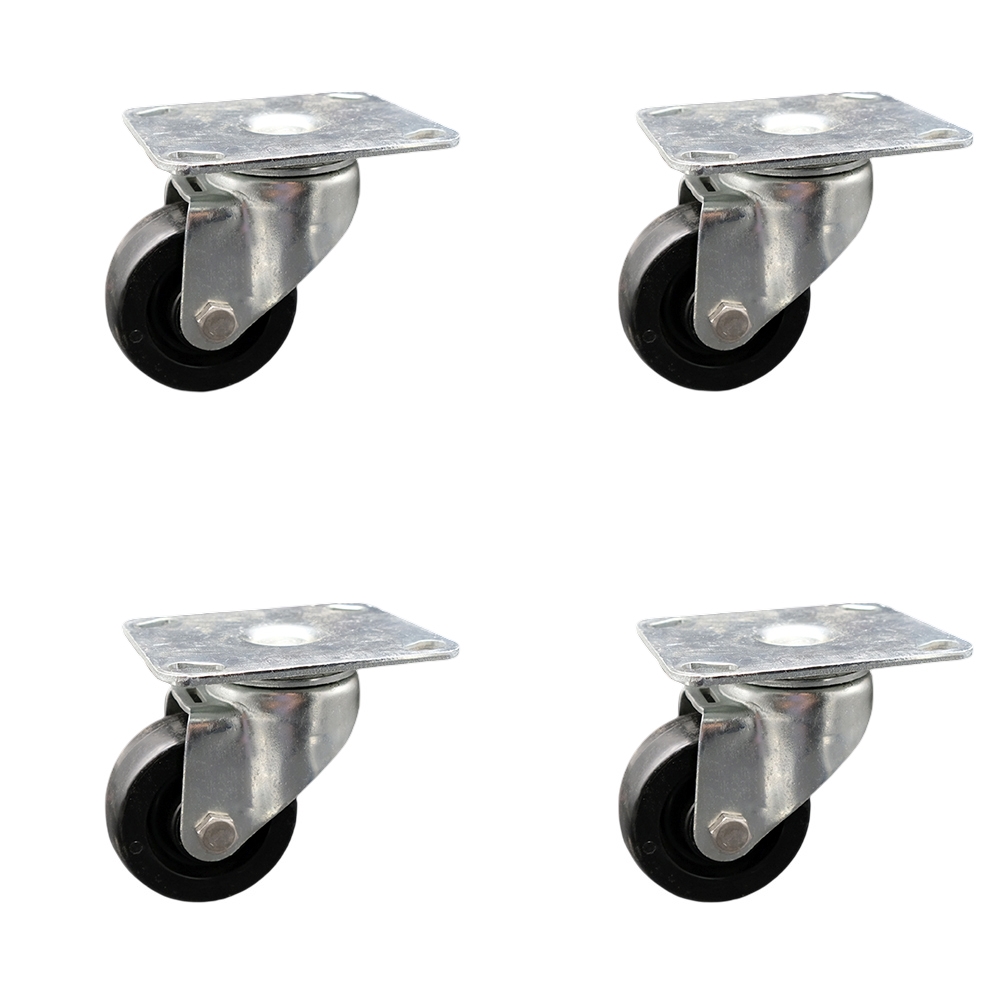

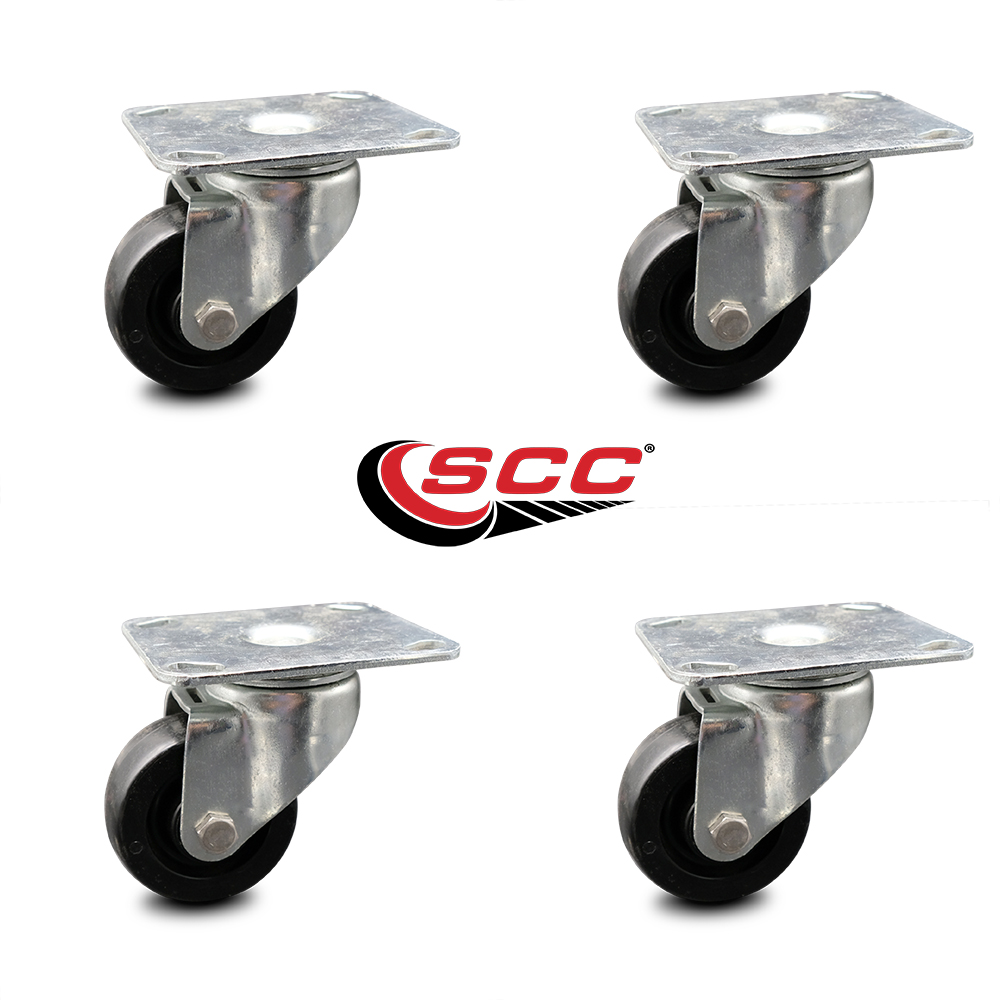

Browse / Parts & Components / Swivel Casters w/3” x 1.25” Black Polyolefin Wheels – Delrin Wheel Bearings – 3-3/4” x 4-3/8” Large Overall Top Plates – 800 lbs. Total Capacity – Set of 4 – Service Caster Brand
Swivel Casters w/3” x 1.25” Black Polyolefin Wheels – Delrin Wheel Bearings – 3-3/4” x 4-3/8” Large Overall Top Plates – 800 lbs. Total Capacity – Set of 4 – Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- SKU
- SCC-C20S314-POD-TP3-4
- Condition
- new
- Quantity
- 4
- UPC
- 011586600812
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 8 x 8 x 8 in
- Shipping weight
- 12 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Size
- 3/8" (hardware not included)
- Capacity
- 800
- Color
- Swivel - No Brake - Black - 4 PCS
- Durometer
- 70D
- Heat Capacity
- -45 degrees F to 180 degrees F
- Item Weight Unit of Measure
- pounds
- Load Height
- 4-1/8"
- Lower Temperature
- -45
- Lower Temperature UofM
- F
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 4-1/8"
- Mounting Type
- Top Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Plate
- Swivels
- Yes
- Size
- 3" Wheel
- Top Plate Size
- 3-3/4" x 4-3/8"
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- Swivel caster
- Wheel Bearing
- Delrin Bearing
- Wheel Diameter
- 3
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyolefin
- Wheel Size
- 3" x 1-1/4"
- Wheel Type
- Polyolefin
Description
Listing is for four (4) Service Caster Series #20 swivel casters with 3" diameter by 1-1/4" wide polyolefin wheels capable of supporting 200lbs./caster (800 lbs. Total Capacity). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 20 top plate polyolefin wheel casters. The Service Caster Series #20 features light weight polyolefin wheels that are resistant to shock, chemicals and abrasion, and finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 20, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Wheel Size: 3" x 1-1/4" • Weight Capacity: 200 lbs Capacity/Caster (800 lbs/set of 4) • Overall Height: 4-1/8" • Bolt Hole Dimensions: 2-5/8" to 3" x 3" to 3-5/8"
