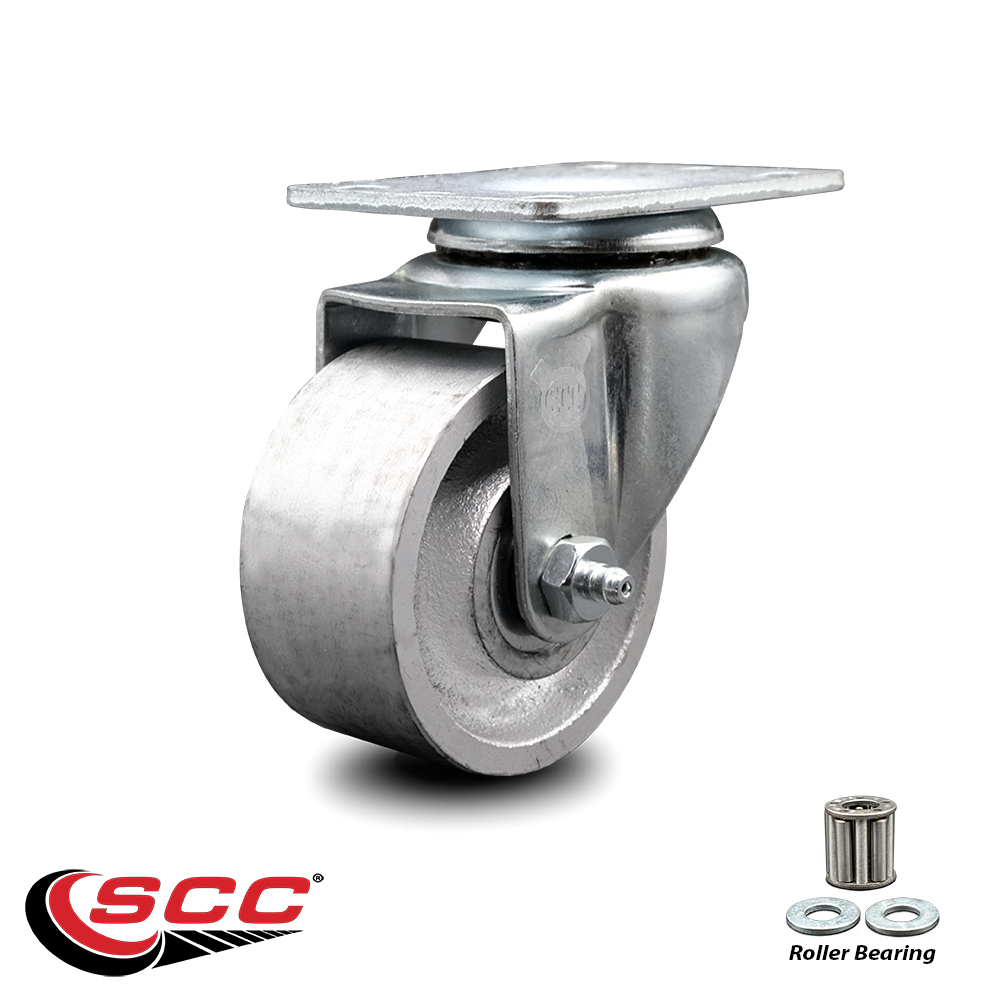

Swivel Caster with 3 Inch Semi Steel Cast Iron Wheel with Roller Bearing – 300 lbs. Capacity Per Caster – 3-1/8 Inch x 4-1/8 Inch Overall Top Plate – Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-20S315-SSR-TP2

Condition

new

Quantity

1

UPC

734005069594

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Capacity

300

Color

Swivel - No Brake - Silver

Durometer

90D

Heat Capacity

-45 degrees F to 600 degrees F

Item Weight Unit of Measure

pounds

Load Height

4-1/8"

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

600

Maximum Temperature UofM

F

Mounting Height

4-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

3" Wheel

Top Plate Size

3-1/8" x 4-1/8"

Tread Width

1.5

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Roller Bearing

Wheel Diameter

3

Wheel Diameter UofM

inches

Wheel Material

Semi Steel Cast Iron

Wheel Size

3" x 1-1/2"

Wheel Type

Semi Steel Cast Iron

Description

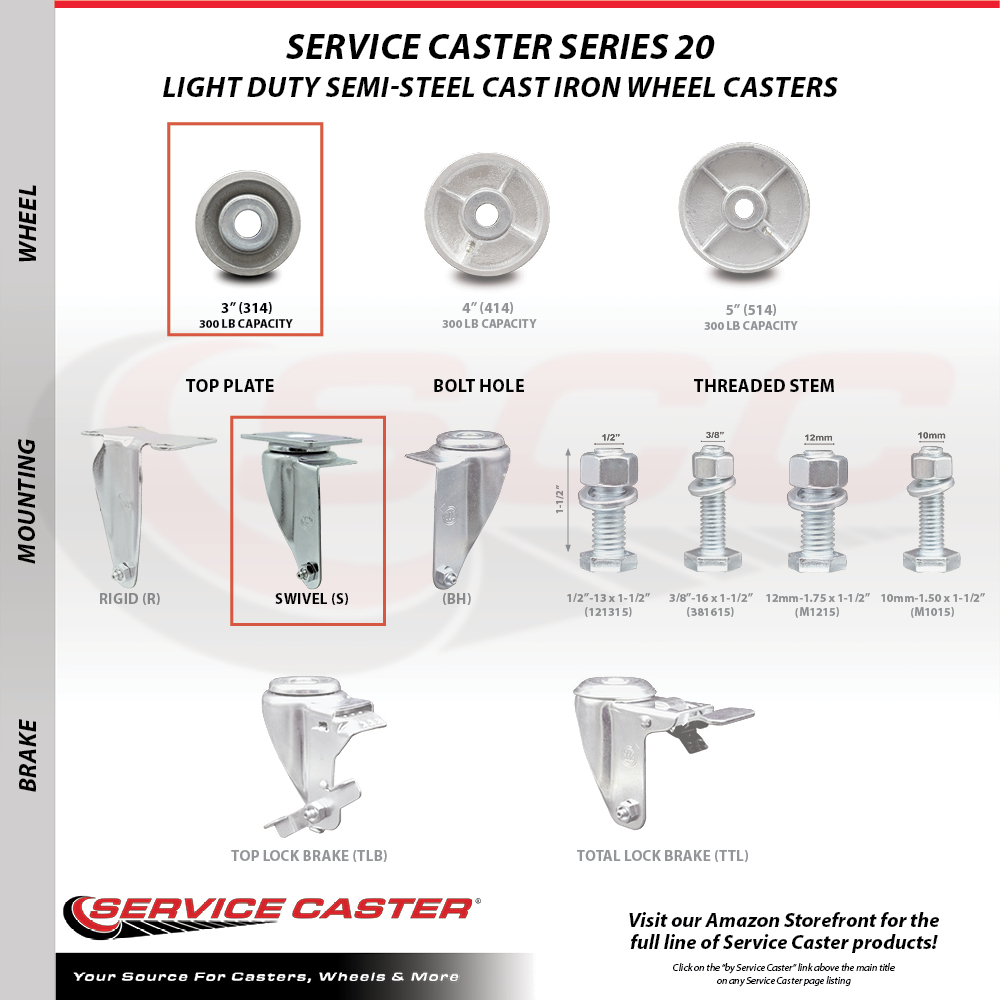

Listing is for one (1) Service Caster Series #20 swivel caster with a 3" diameter by 1-1/2" wide semi steel cast iron wheel capable of supporting 300lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 roller bearing semi-steel cast iron casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the semi-steel wheels are abrasion resistant and rugged, maintaining effortless rolling under heavier loads, and provides a cost-effective solution over steel wheels. The roller bearing is capable of carrying greater loads while also providing smoother rolling motion. It has a split outer race shell into which the roller assembly is inserted. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction (Note: roller bearing must be used with hardened spanner bushing or hardened shaft). Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height. • Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster • Top plate measures at 3-1/8" x 4-1/8" with a bolt hole pattern of 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" and can either be bolted or welded on. • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.
