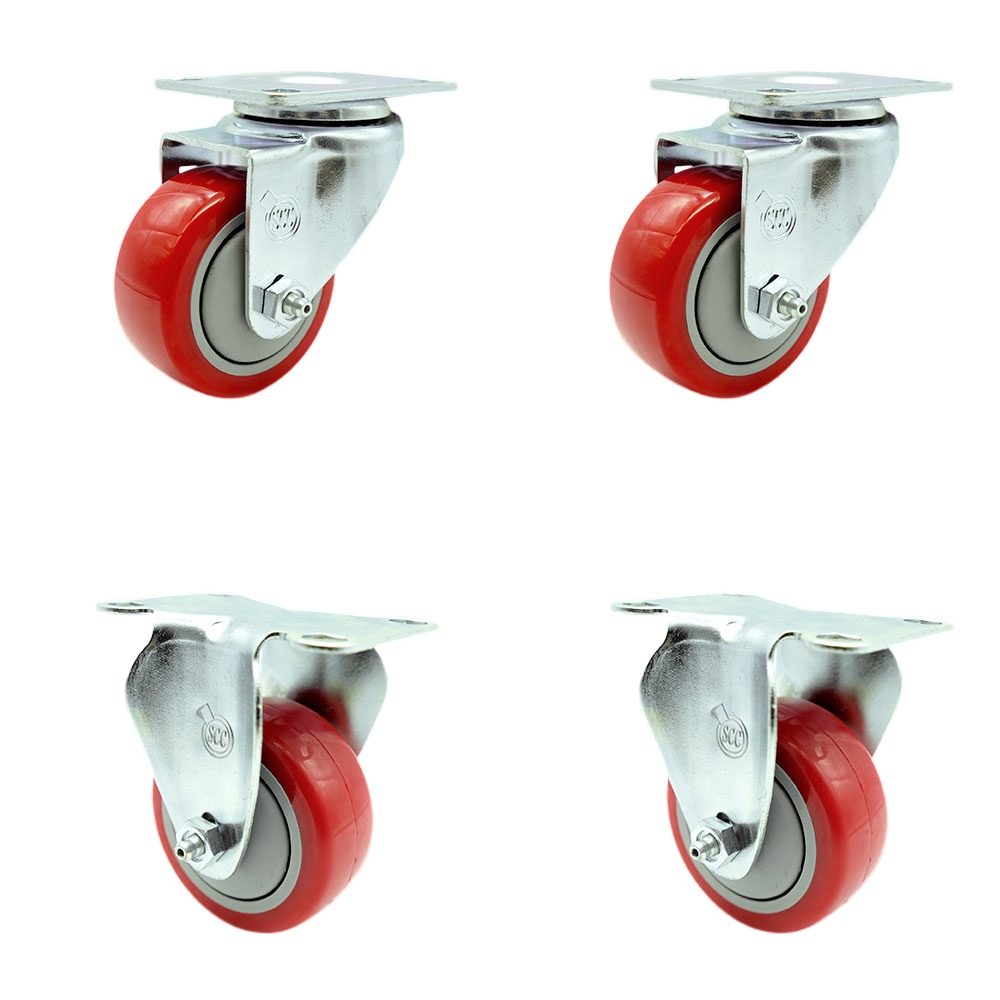

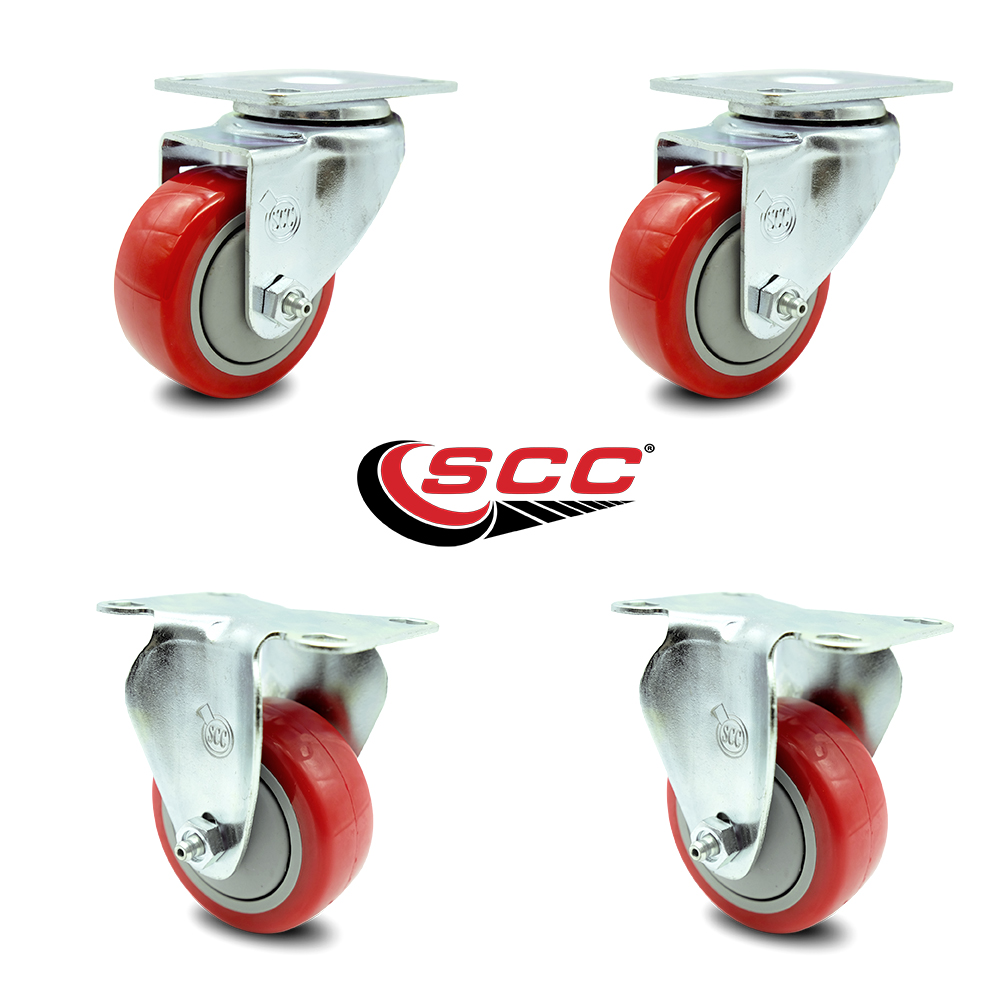

Swivel Caster Set of 4 with 2 Rigid Casters - 3 Inch Red Polyurethane Wheel – 300 lbs. Capacity Per Caster–3-1/8 Inch x 4-1/8 Inch Overall Top Plate–Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-20S314-PPUB-RED-TP2-2-R-2

Condition

new

Quantity

4

UPC

734005062915

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Capacity

1200

Color

2 Swivel - 2 Rigid - Red

Durometer

60D

Heat Capacity

-20 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

4-1/8"

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

4-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

3" Wheel

Top Plate Size

3-1/8" x 4-1/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(2) Swivel casters & (2) rigid casters

Wheel Bearing

Ball Bearing

Wheel Diameter

3

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

3" x 1-1/4"

Wheel Type

Polyurethane on Polyolefin

Description

Listing is for a set of four (4) Service Caster Series #20 casters, two (2) swivel and two (2) rigid casters, with 3" diameter by 1-1/4" wide red polyurethane wheels capable of supporting a total weight of 1,200 lbs. (300 lbs./caster). When searching for a reliable and durable solution to your caster needs, look no further than the Service Caster Series 20 top plate polyurethane casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood- rolling on a finely crafted ball bearing design that keeps you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4" and 5": 350 lbs Capacity/Caster • Top plate measures at 3-1/8" x 4-1/8" with a bolt hole pattern of 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" and can either be bolted or welded on. • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.
