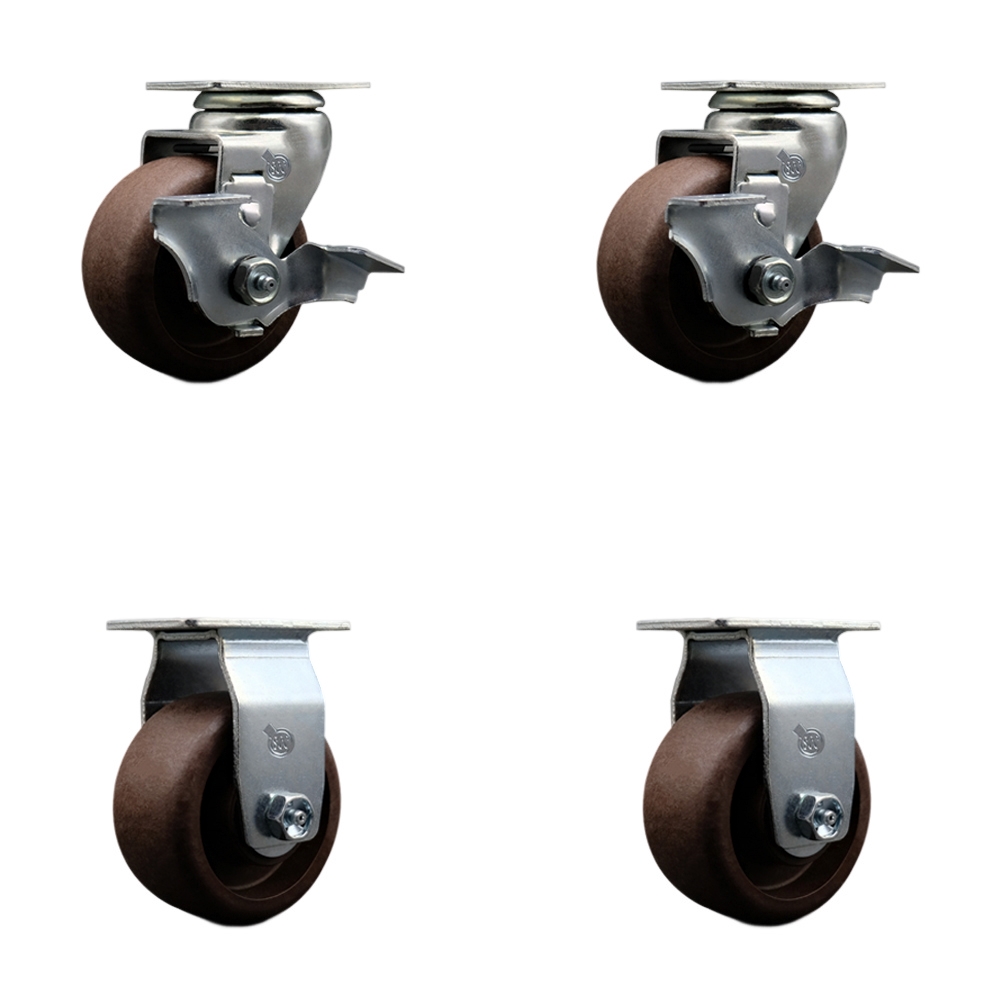

Swivel and Rigid Plate Caster Set–Brown 4 Inch by 2 Inch High Temp Glass Filled Nylon Wheel–Bronze Bearing–1,800lbs. Total Capacity–Includes 2 Locking Swivel and 2 Rigid Casters–Service Caster Brand

Details

Manufacturer

Service Caster

Model

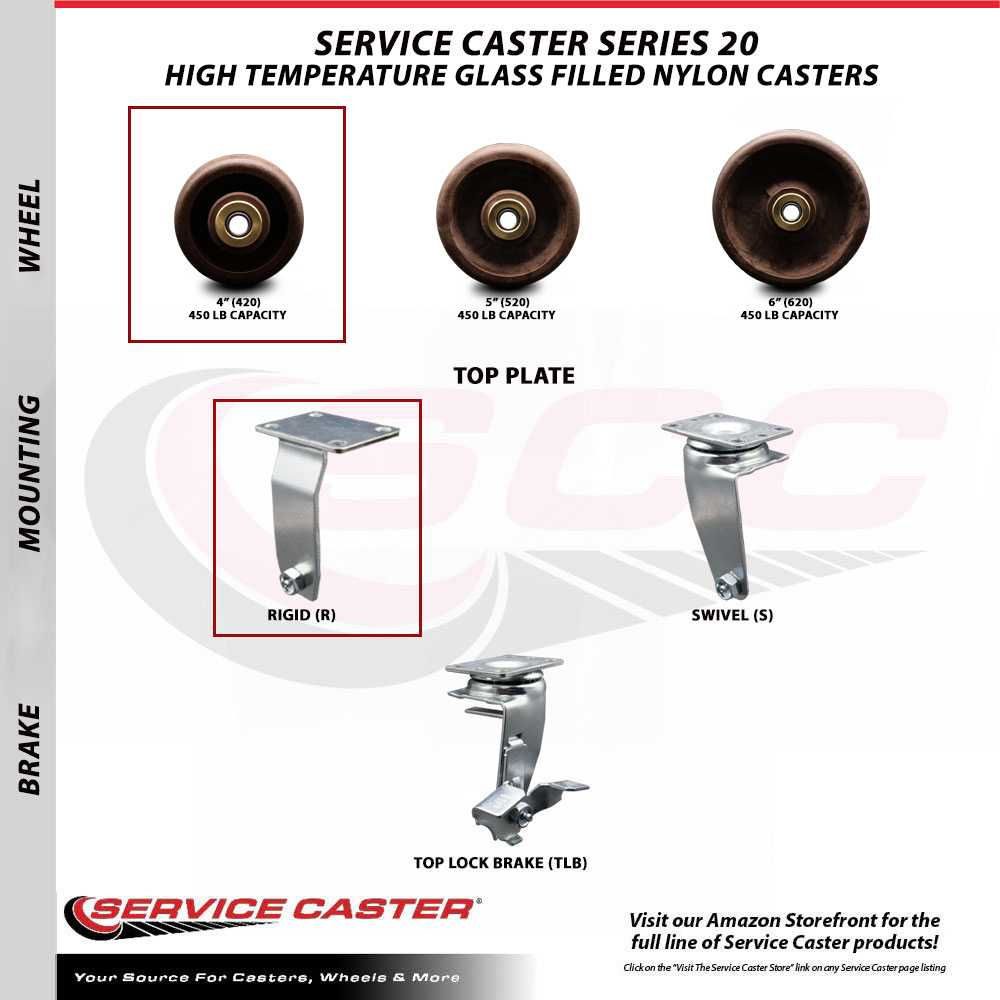

Series #20

SKU

SCC-20S420-GFNBZHT-TLB-2-R-2

Condition

new

Quantity

4

UPC

734005083569

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

19 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

1800

Color

2 Swivel w/2 Top Lock Brakes - 2 Rigid

Durometer

85D

Feature

2 casters with top lock brakes

Heat Capacity

-45 degrees F to 550 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

2 casters with top lock brakes

Lower Temperature

-45

Lower Temperature UofM

F

Material Type

High Temperature Glass Filled Nylon

Maximum Temperature

550

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Top Plate Size

2-3/8" x 3-5/8"

Tread Width

2

Tread Width UofM

inches

Type

(2) swivel casters w/top lock brakes & (2) rigid casters

Wheel Bearing

Bronze Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

High Temperature Glass Filled Nylon

Wheel Size

4" x 2"

Wheel Type

High Temperature Glass Filled Nylon

Description

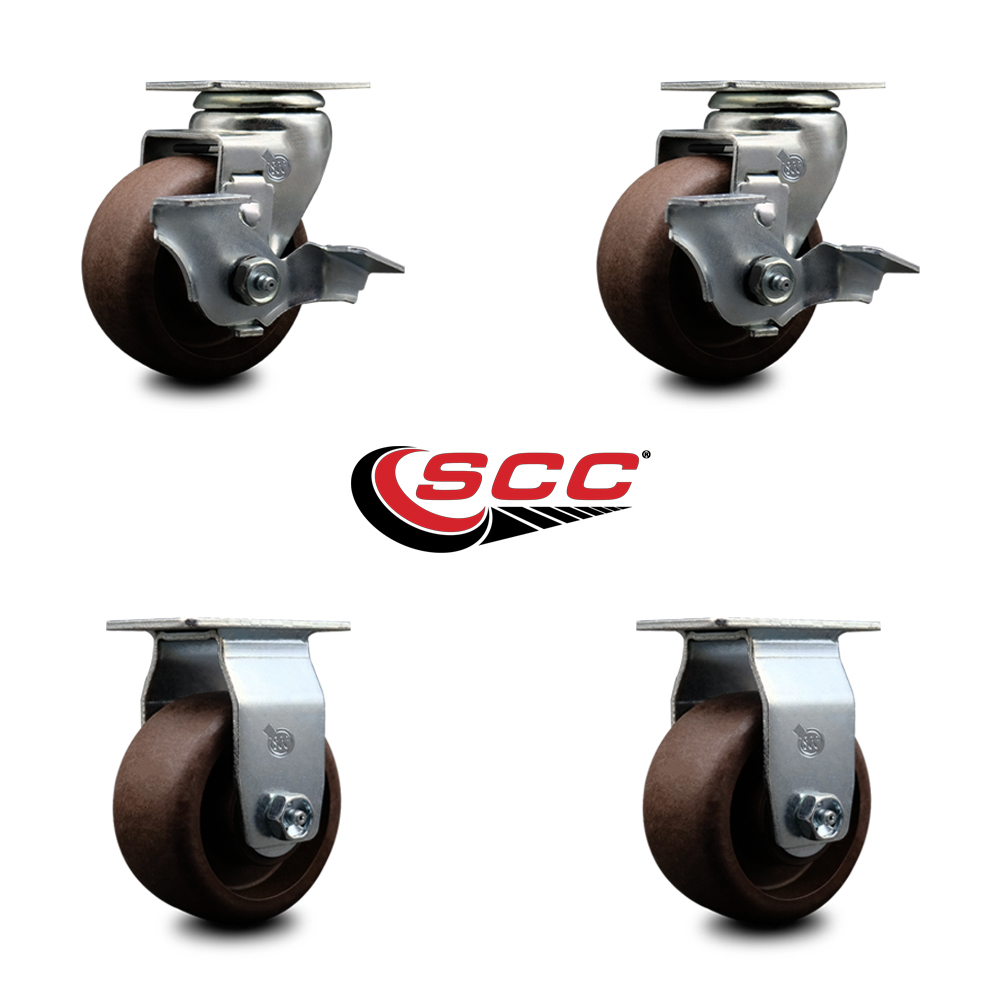

Listing is for a set of four (4) Service Caster Series #20 casters, two (2) rigid and two (2) swivel casters with top locking brakes, with 4" diameter by 2" wide high temperature glass filled nylon wheel with a bronze bearings capable of supporting a total weight of 1,800 lbs. (450 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 glass filled nylon high temperature casters. The Service Caster Series #20 is ideal for autoclaves, bakery overs and powder coating facilities. The zinc plated finish provides durability under any condition, and the high temp glass filled nylon wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 425°F continuous usage to 475°F to 550°F intermittent usage. The glass filled nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances, will not flat spot, and under normal operating conditions are maintenance free. Resistant to most chemical and oils, these glass filled nylon wheels will keep you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 4” Wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/2” mounting height. • Weight Capacity: 4", 5", 6": 450 lbs Capacity/Caster • Top plate measures at 2-3/8" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.
