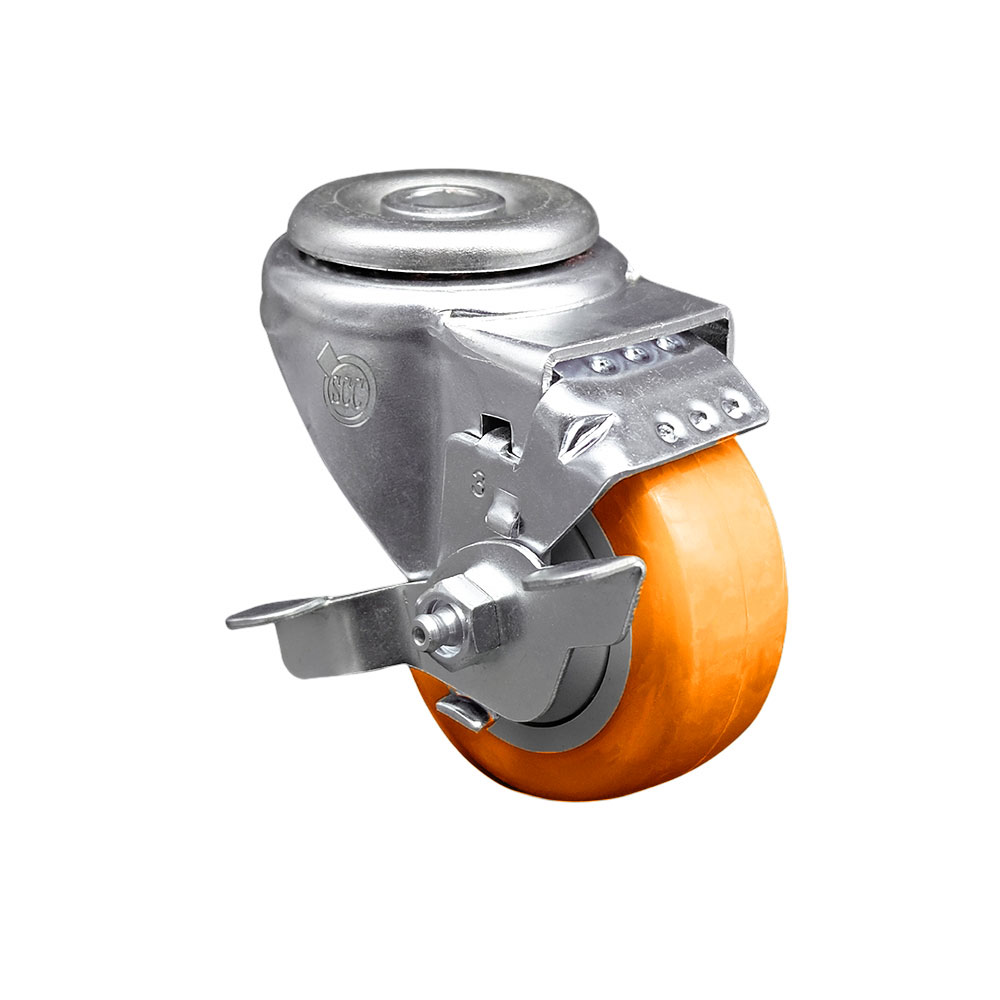

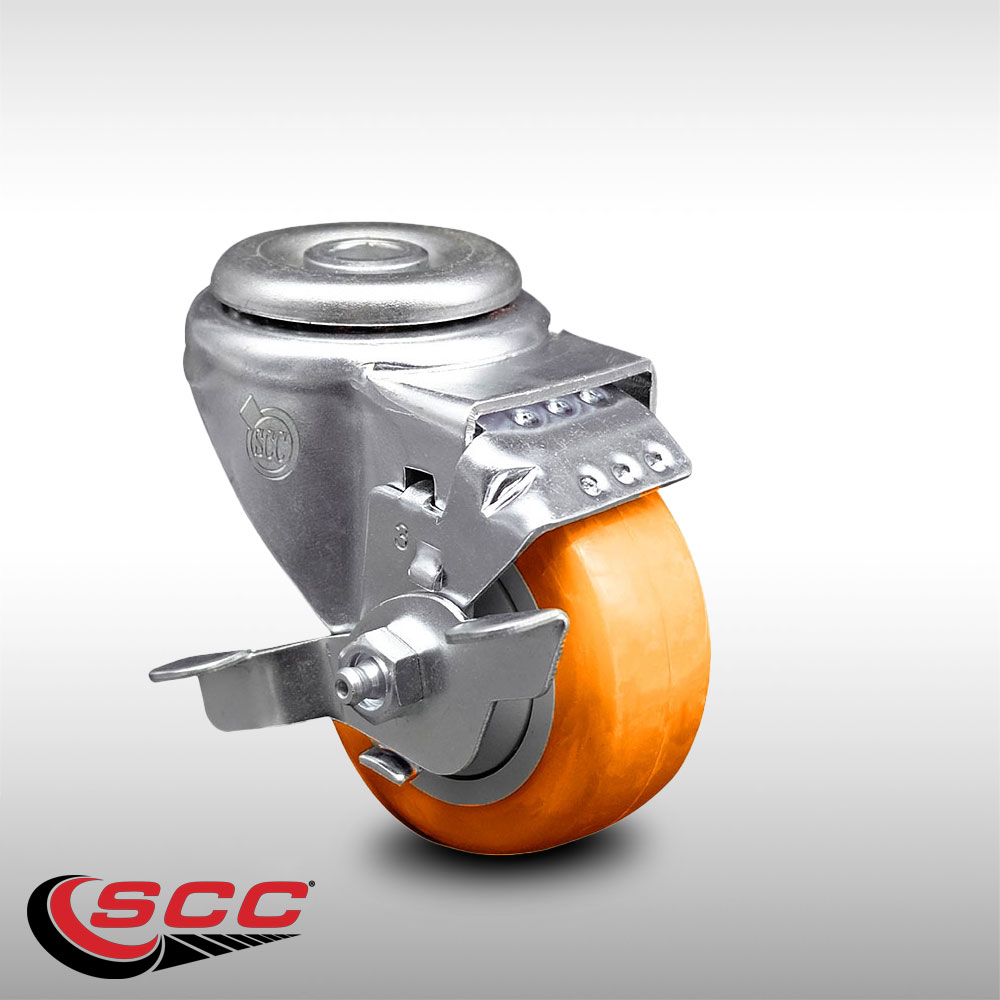

Stainless Steel Polyurethane Swivel Bolt Hole Caster w/3.5" x 1.25" Orange Wheel & Top Locking Brake - 300 lbs Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-SSBH20S3514-PPUB-ORG-TLB

Condition

new

Quantity

1

UPC

734005455106

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

3 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

300

Color

Swivel - Top Lock Brake - Orange

Durometer

60D

Feature

Top lock brake

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

4-5/8"

Locking Type

Top lock brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

4-5/8"

Mounting Type

Bolt Hole

Plating/Coating

Polished Stainless Steel

Locking Castersor Wheels

Yes

Swivels

Yes

Size

3.5" Wheel

Stain Resistant

Yes

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster w/top lock brake

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

3.5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

3-1/2" x 1-1/4"

Wheel Type

Polyurethane Tread on Polyolefin Core

Description

Listing is for one (1) Service Caster Series #20 stainless steel swivel caster with a 3-1/2" diameter by 1-1/4" wide orange polyurethane wheel and a 1/2" bolt hole with brake capable of supporting 300 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 stainless steel bolt hole polyurethane casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The bolt hole can accept a bolt or a customized stem, allowing for any type of mounting requirement. The polished stainless steel finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood. All rolling via a finely crafted ball bearing design that will keep you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Stainless Steel Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. Wheels are offered in five different colors – Gray, Blue, Black, Maroon, and Red. • Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster • All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement. • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
