Stainless Steel Hard Rubber Swivel Top Plate Caster Set of 4 w/4" x 1.25" Black Wheels - Includes 4 Swivel - 1200 lbs Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-SS20S414-HRS-4

Condition

new

Quantity

4

UPC

011586528048

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

9 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Capacity

300

Color

4 Swivel - No Brakes - Black

Durometer

55D

Heat Capacity

-40 degrees F to 160 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Lower Temperature

-40

Lower Temperature UofM

F

Material Type

Hard Rubber

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Top Plate

Plating/Coating

Polished Stainless Steel

Casters Mounting Method

Plate

Swivels

Yes

Size

4" Wheel

Stain Resistant

Yes

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(4) swivel casters

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Hard Rubber

Wheel Size

4" x 1-1/4"

Wheel Type

Hard Rubber

Description

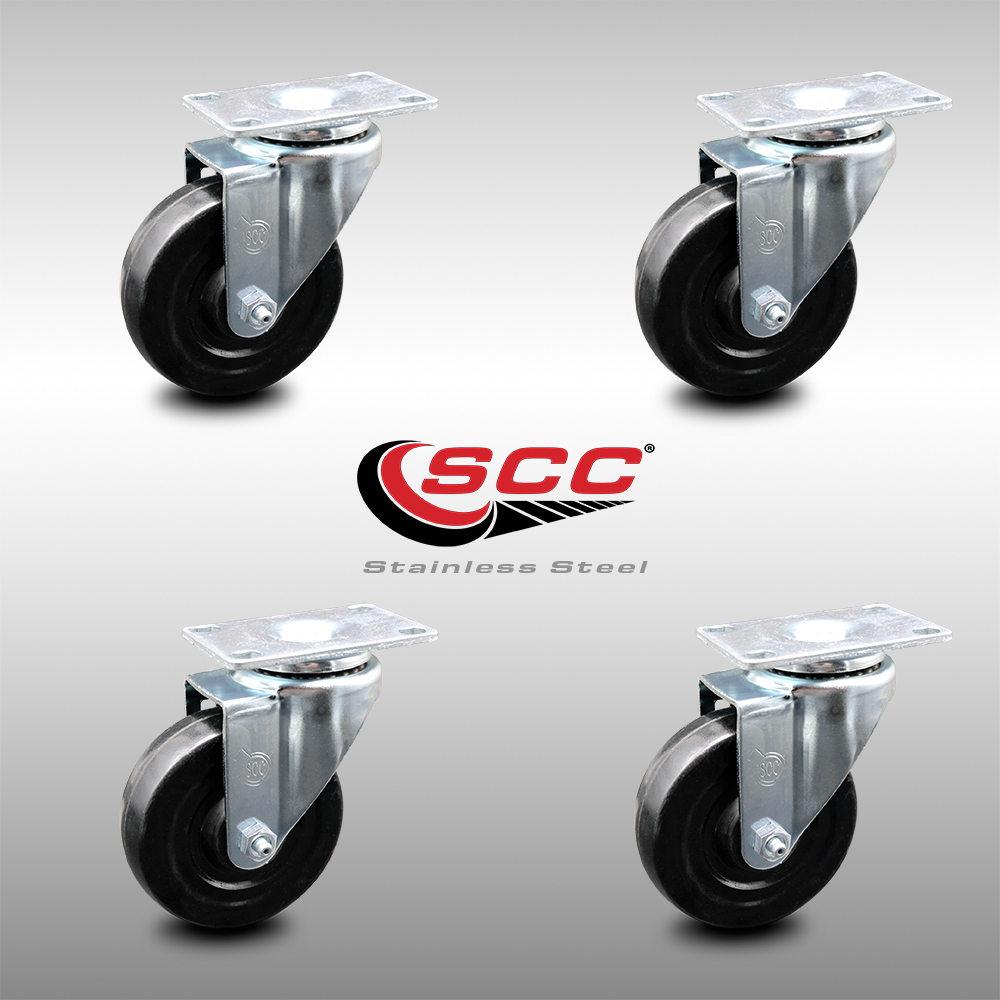

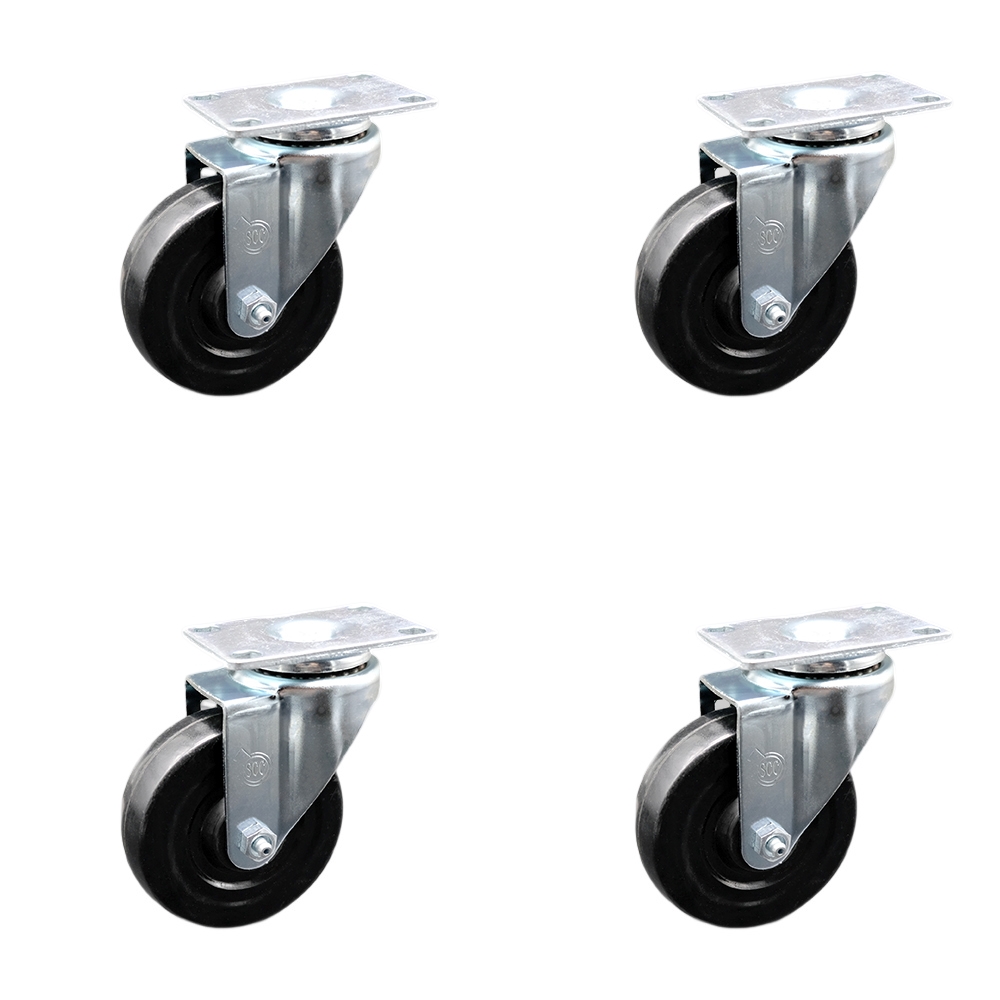

Listing is for a set of four (4) Service Caster Series #20 stainless steel swivel casters, four (4) swivel casters with 4” diameter by 1-1/4” wide hard rubber wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 hard rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The hard rubber wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Hard Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 3": 275 lbs Capacity/Caster; 3.5": 285 lbs Capacity/Caster; 4" and 5": 300 lbs Capacity/Caster • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
