Solid Polyurethane Swivel Top Plate Caster Set of 4 with 4 Inch Blue Caster Wheels - 316 Stainless Steel Casters - Includes 2 Swivel with Total Lock Brakes and 2 Rigid - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-SS316TTL20S414-SPUS-2-R-2

Condition

new

Quantity

4

UPC

011586611702

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

1200

Color

2 Swivel w/2 Total Lock Brakes - 2 Rigid

Durometer

60-65 D

Feature

2 casters with total lock brakes

Heat Capacity

-50 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

2 casters with total lock brakes

Lower Temperature

-50

Lower Temperature UofM

F

Material Type

Solid Polyurethane

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Top Plate

Plating/Coating

316 Polished Stainless Steel

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Stain Resistant

Yes

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(2) swivel casters w/total lock brakes & (2) rigid casters

Wheel Bearing

Plain Bore

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Solid Polyurethane

Wheel Size

4" x 1-1/4"

Wheel Type

Solid Polyurethane

Description

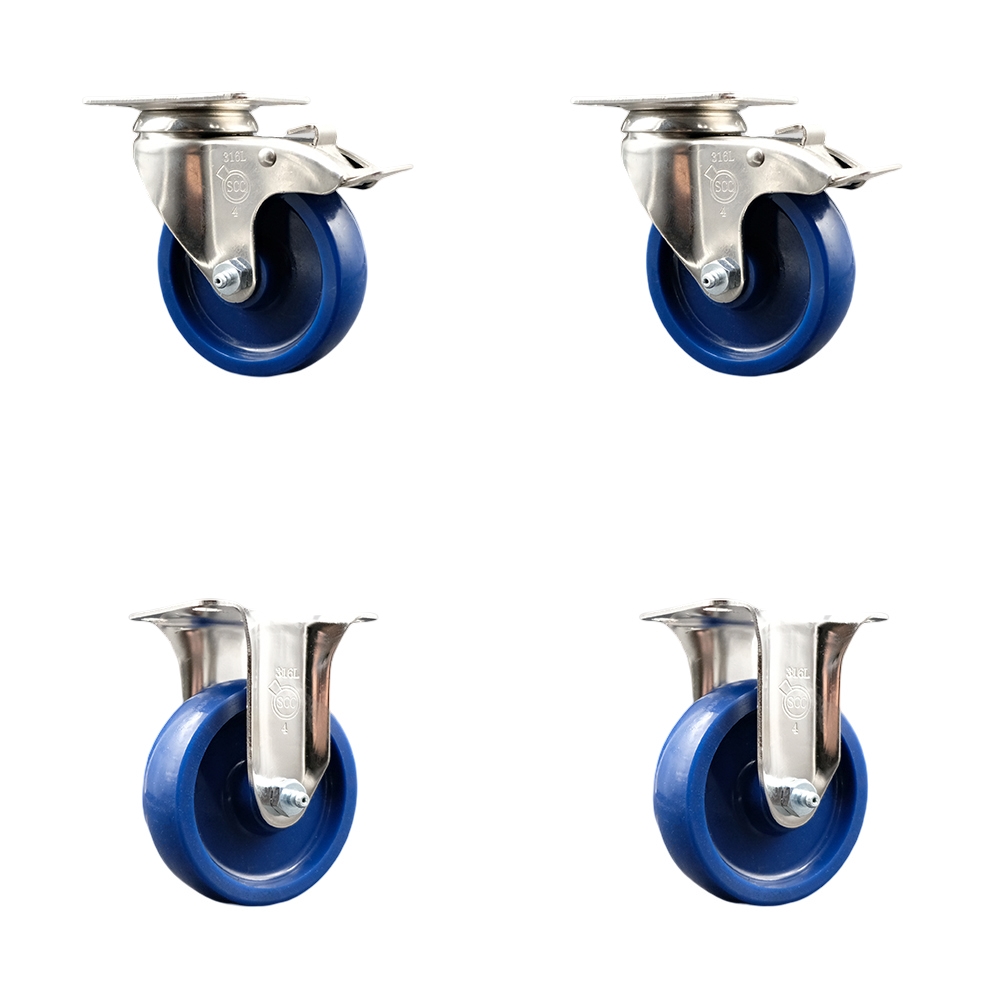

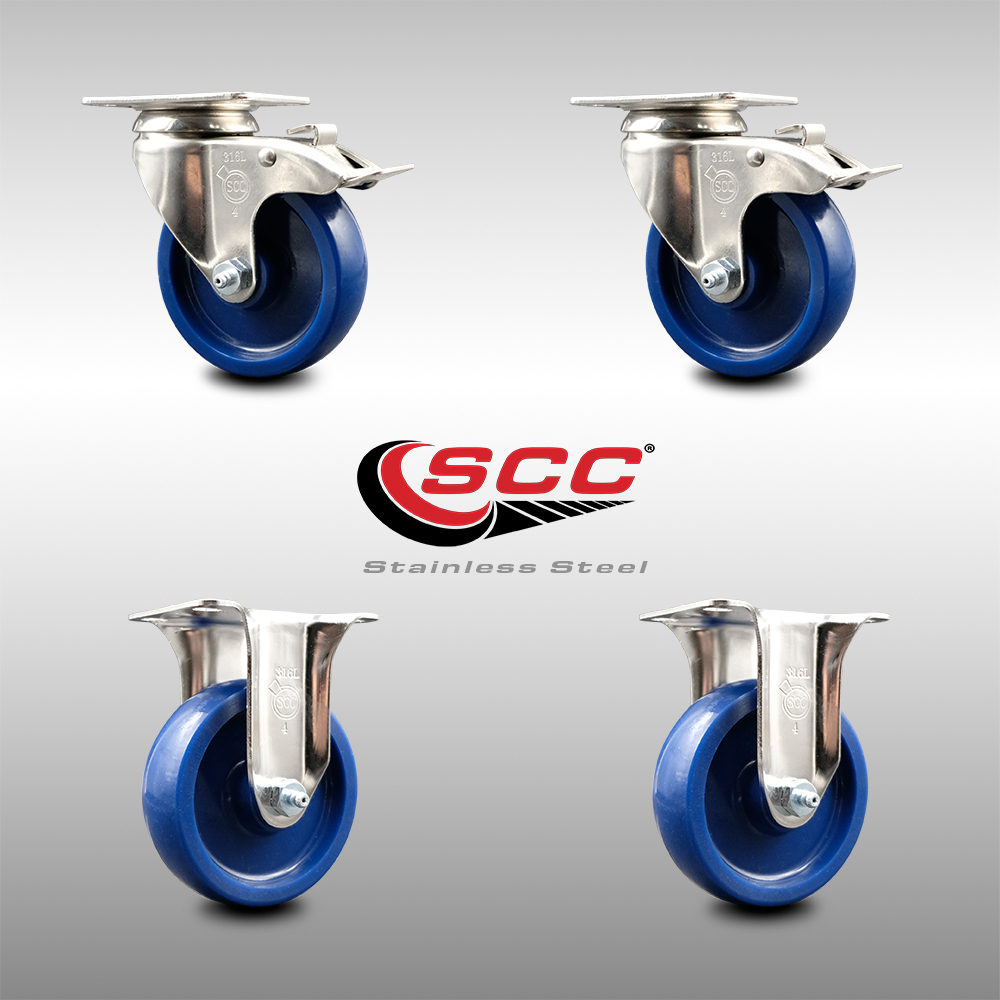

Listing is for a set of four (4) Service Caster Series #20 316 stainless steel casters, two (2) swivel total lock brake swivel casters and two (2) rigid casters, with 4” diameter by 1-1/4” wide blue solid polyurethane wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster's 316 stainless steel solid polyurethane wheel casters. Built with 316 stainless steel, which contains additional molybdenum and nickel content, makes this caster more corrosion resistant than standard 304 stainless steel. Molded as one solid piece, the non-marking, non-marring polyurethane wheel is free from debonding, and will not flatspot, as can occur with comparable polyurethane wheels, ensuring a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. • These Service Caster Series #20 316 Stainless Steel Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
