Solid Polyurethane Swivel Threaded Stem Caster Set of 4 w/3.5" x 1.25" Blue Wheels and 5/8" Stems - Includes 2 with Top Locking Brake - 1200 lbs Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-TS20S3514-SPUS-58212-2-TLB-2

Condition

new

Quantity

4

UPC

734005111415

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

1200

Color

4 Swivel w/2 Top Lock Brakes

Durometer

60-65D

Heat Capacity

-50 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

4-5/8"

Lower Temperature

-50

Lower Temperature UofM

F

Material Type

Solid Polyurethane

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

4-5/8"

Mounting Type

Threaded Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

3.5" Wheel

Stem

5/8"-11 x 2-1/2" Threaded Stem

Stem Diameter

5/8”

Stem Length

2.5

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

2.5

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Plain Bore

Wheel Diameter

3.5

Wheel Diameter UofM

inches

Wheel Material

Solid Polyurethane

Wheel Size

3-1/2" x 1-1/4"

Wheel Type

Solid Polyurethane

Description

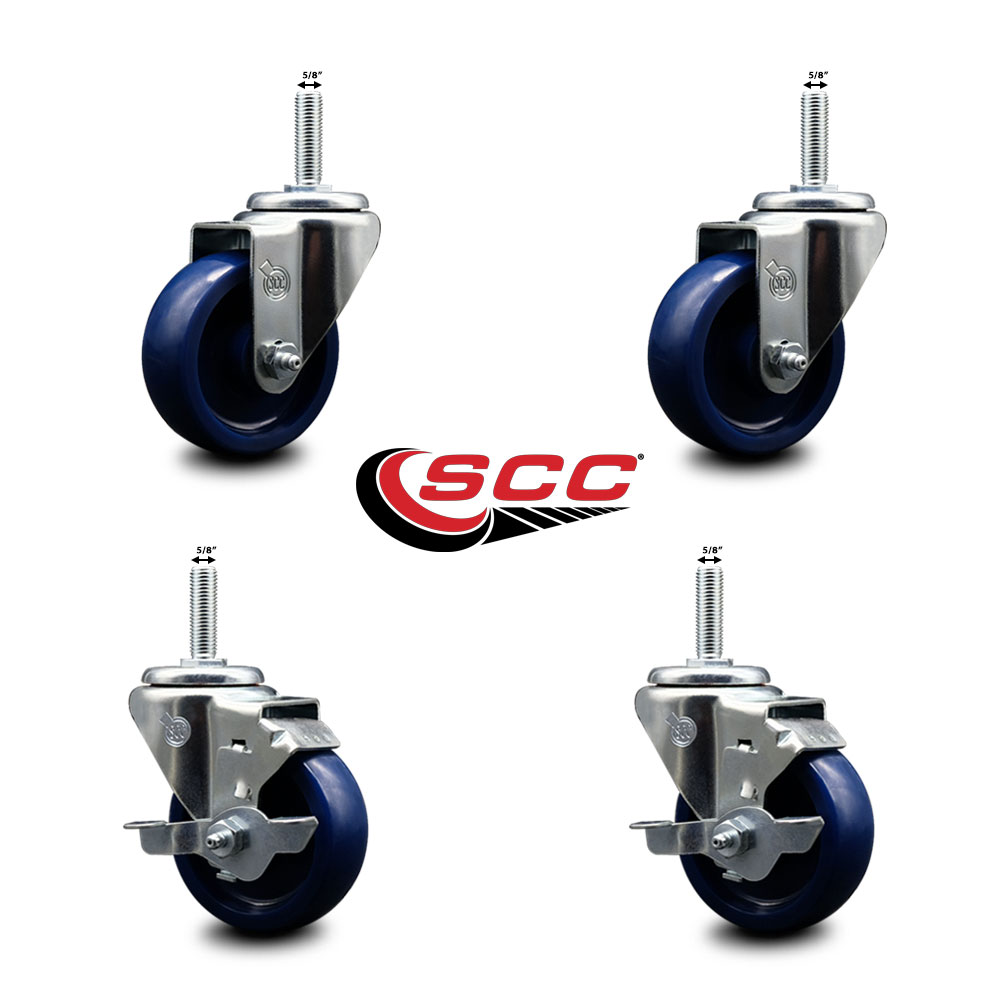

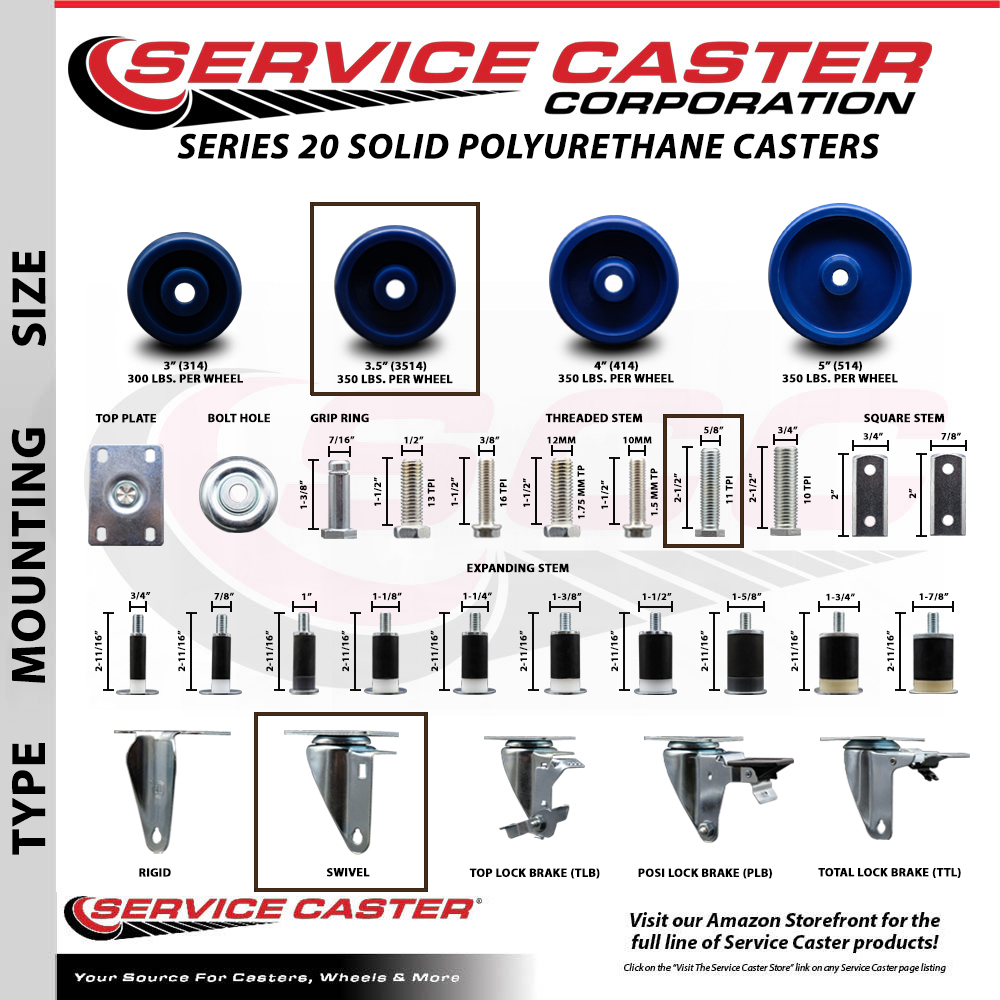

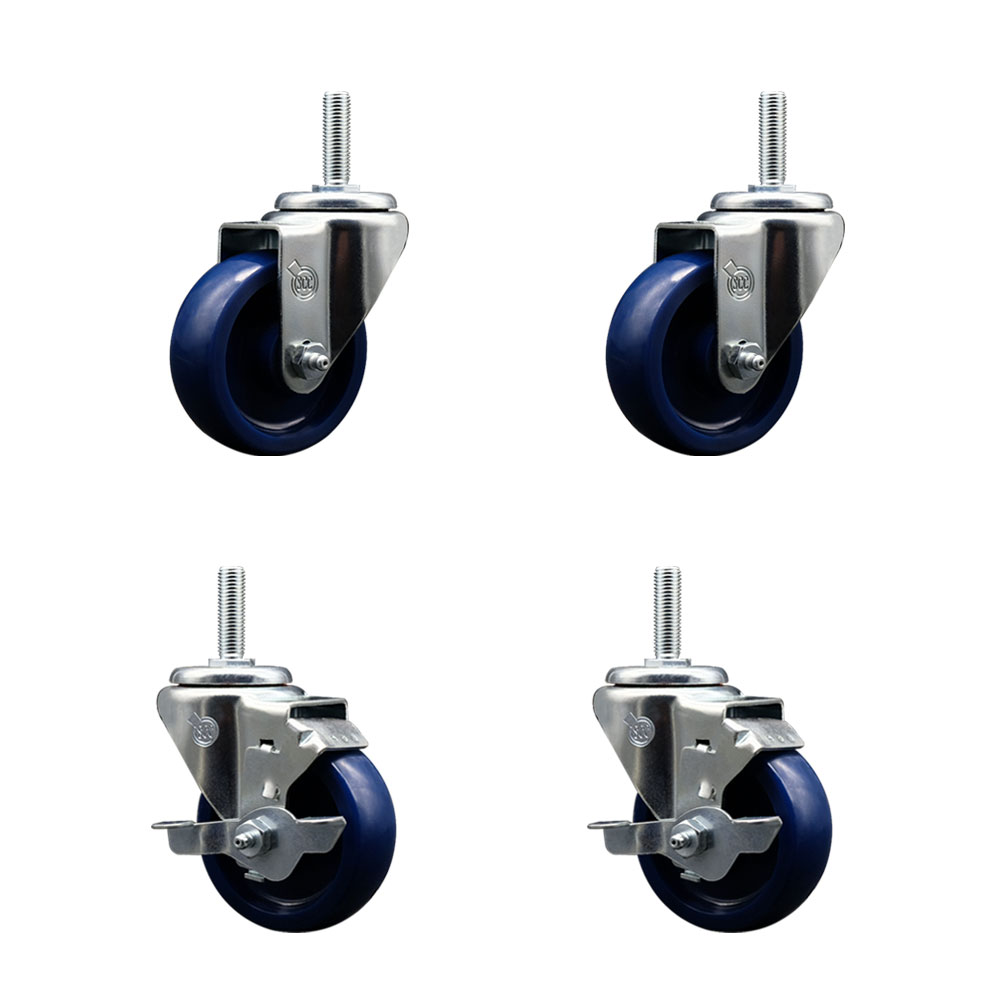

Listing is for a set of four (4) Service Caster Series #20 casters, two (2) swivel 5/8" threaded stem with brake casters and two (2) swivel casters, with 3-1/2” diameter by 1-1/4” wide solid polyurethane wheels. Supports a total weight of 1,200lbs (300lbs/per caster). The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition. And the non-marking, non-marring polyurethane wheel is molded as one solid piece, making it free from debonding. This ensures the wheel will not flat spot, as can occur with comparable polyurethane wheels, resulting in a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster • All casters feature a 5/8" diameter (11 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
