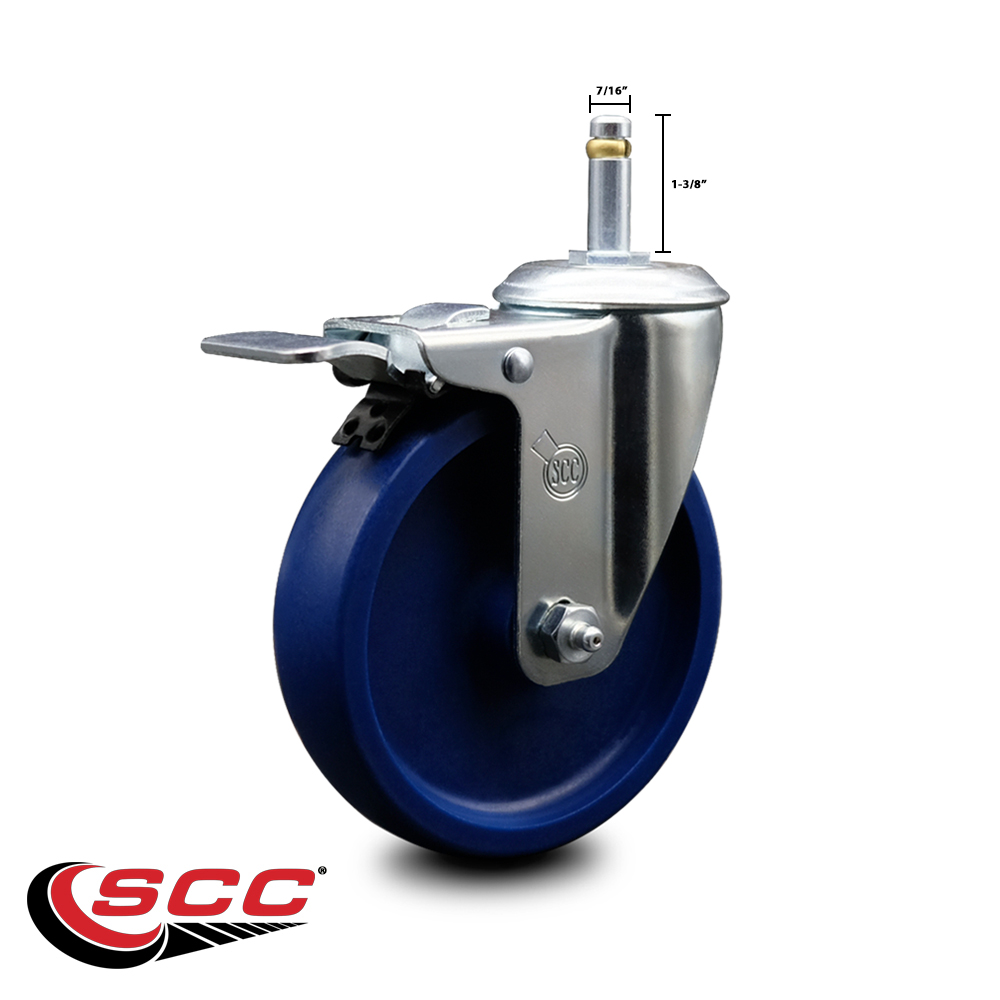

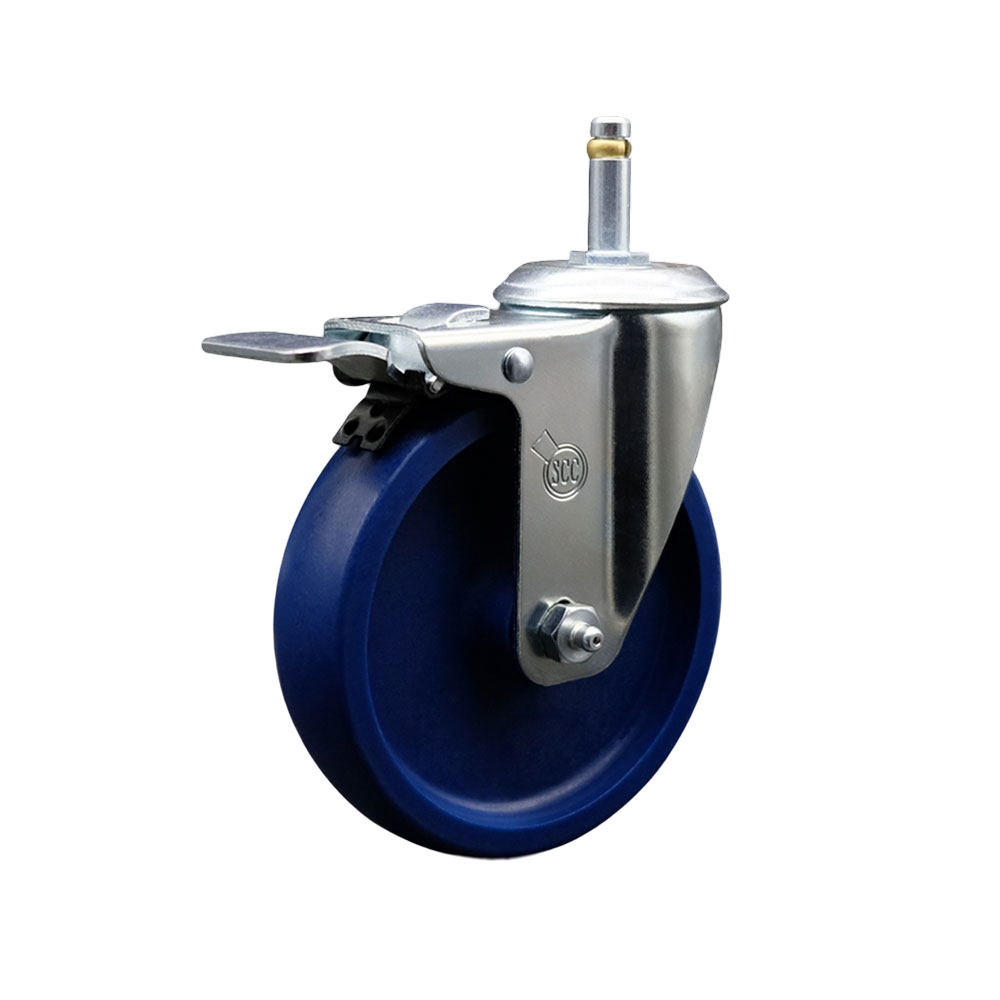

Solid Polyurethane Swivel Grip Ring Stem Caster w/5" x 1.25" Blue Wheel and 7/16" Stem & Total Locking Brake - 300 lbs Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-GRTTL20S514-SPUS-716138

Condition

new

Quantity

1

UPC

734005094138

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

300

Color

Swivel - Total Lock Brake - Blue

Durometer

60-65 D

Feature

Total lock brake

Heat Capacity

-50 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Total lock brake

Lower Temperature

-50

Lower Temperature UofM

F

Material Type

Solid Polyurethane

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Grip Ring Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Stem

7/16" x 1-3/8" Grip Ring Stem

Stem Diameter

7/16"

Stem Length

1-3/8"

Stem Length UofM

inches

Stem Type

Grip Ring Stem

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster w/ total lock brake

Wheel Bearing

Plain Bore

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Solid Polyurethane

Wheel Size

5" x 1-1/4"

Wheel Type

Solid Polyurethane

Description

Listing is for one (1) Service Caster Series #20 swivel caster with a 5" diameter by 1-1/4" wide solid polyurethane wheel and a 7/16" grip ring stem with total lock brake capable of supporting 300 lbs./caster. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition. And the non-marking, non-marring polyurethane wheel is molded as one solid piece, making it free from debonding. This ensures the wheel will not flat spot, as can occur with comparable polyurethane wheels, resulting in a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole, grip ring stem, standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. • Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster • All casters feature a 7/16” diameter by 1-3/8” long grip ring stem. Service Caster recommends using a drill or hardware gauge, a 7/16” wrench, or our paper wrap method to ensure the grip ring stem diameter needed is 7/16”. Paper Wrap Method: take a small strip of paper and wrap it around the stem. Mark the paper with a pen where it overlaps, keep the wrap tight. Measure the strip from the start of the wrap to the mark. The ruler should measure 1-3/8". Don’t see the size you need? Call us! • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
