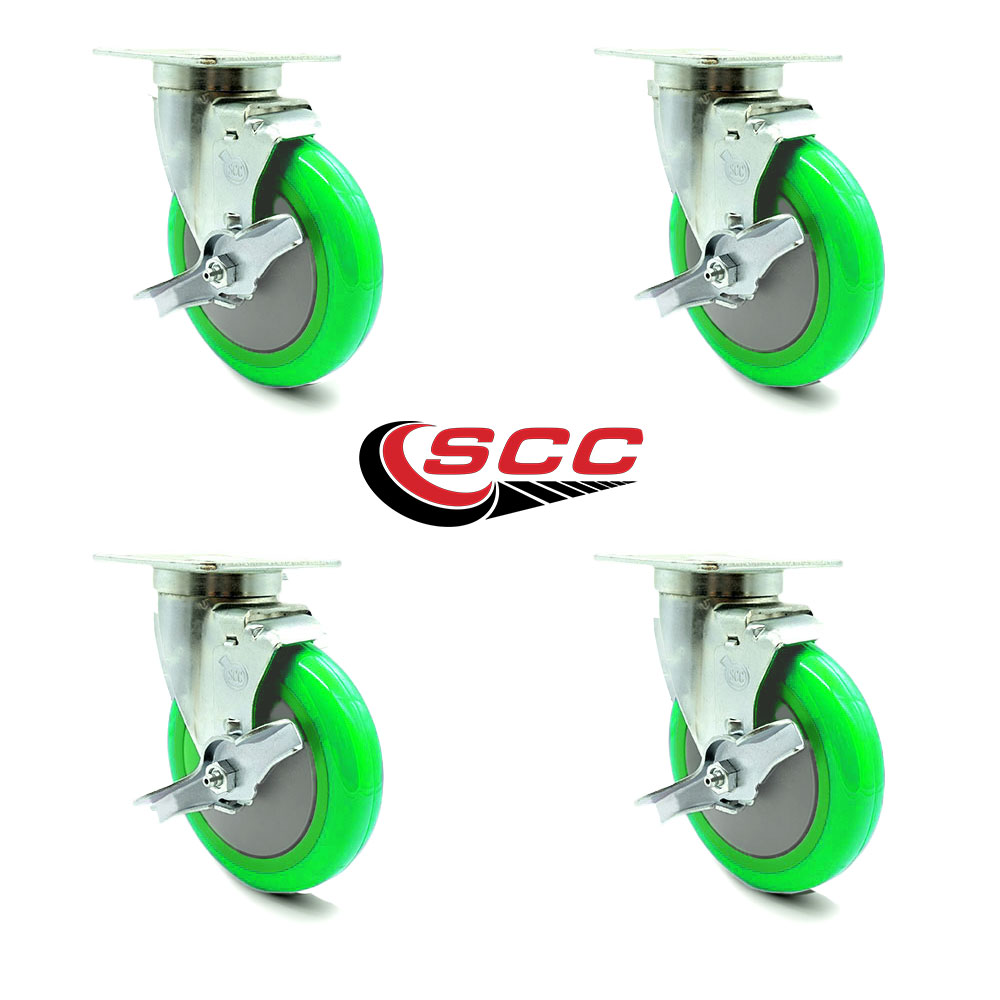

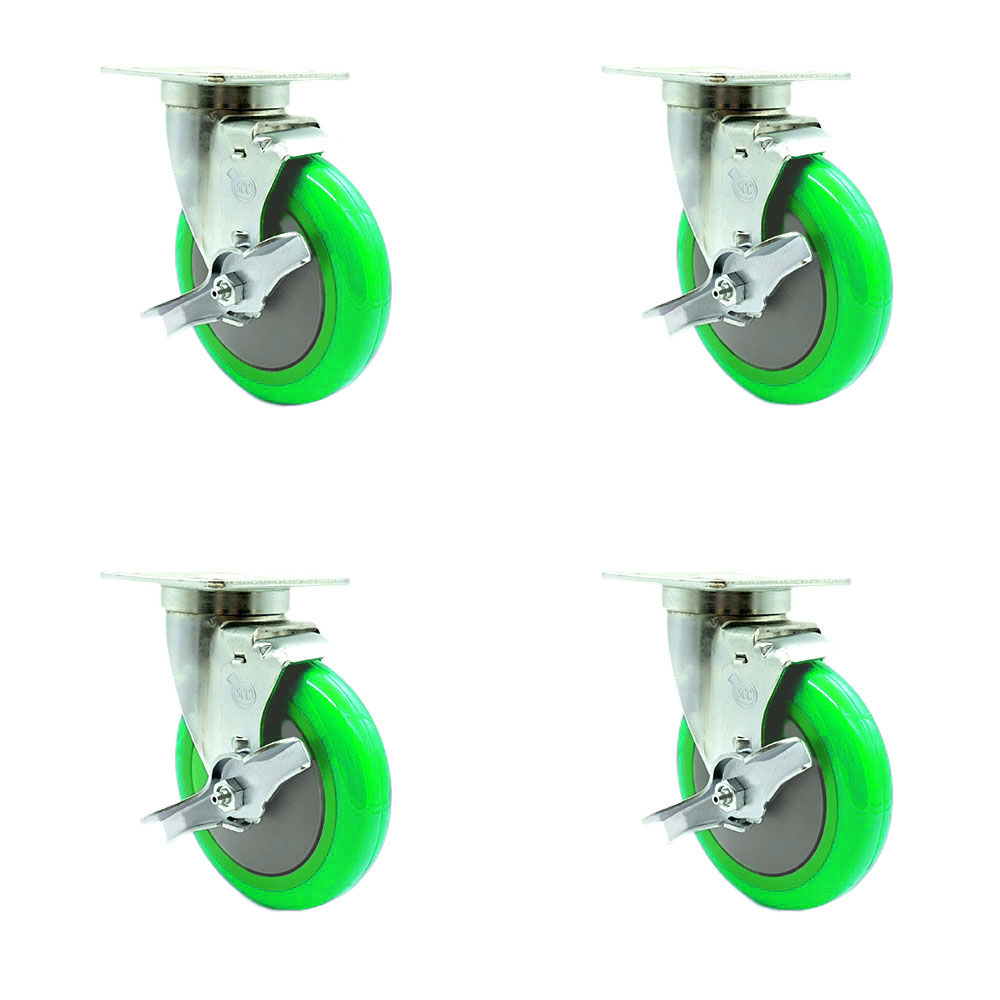

Service Caster - Universal Kitchen Casters - 5” x 1.25" Polyurethane Green Wheels Swivel Casters w/Brakes Non-Marking - Set of 4

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-20S514-PPUB-GRN-TLB-TPU1-4

Condition

new

Quantity

4

UPC

734005419009

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

12 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Capacity

350

Color

4 Swivel w/Top Lock Brake - Green

Durometer

60D

Feature

4 casters with top lock brakes

Heat Capacity

-20 degrees F to 180 degrees F

Load Height

6-1/8"

Locking Type

(4) Top lock brakes

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Top Plate Size

3-1/2" x 3-1/2"

Tread Width

1.25

Tread Width UofM

inches

Type

(4) swivel casters w/top lock brakes

Wheel Bearing

Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane tread on polyolefin core

Wheel Size

5" x 1-1/4"

Wheel Type

Polyurethane tread on polyolefin core

Description

Listing is for a set of four (4) Service Caster Series #20 universal commercial kitchen and restaurant equipment swivel casters with 5" diameter by 1-1/4" wide green polyurethane wheels and top locking brakes capable of supporting a total weight of 1,400 lbs. (350 lbs./caster). Service Caster knows the demands of the commercial kitchen and restaurant industry and uses only the finest materials and craftsmanship to produce the Series #20 universal caster. With its bright zinc plated finish, heat-treated ball bearing raceway, and dust and thread guards, this versatile caster is built to last day after day on light and medium duty commercial kitchen and restaurant equipment. The Series #20 universal caster boasts polyurethane wheels that are non-marking, non-marring and roll smoothly thanks to an innovative ball bearing design, continuously performing without fail on all hard surfaces typically found in kitchen environments such as concrete, tile, and wood. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Wheel: 5" x 1-1/4" Polyurethane - Gray • Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster • Top Plate Size: 3-1/2" x 3-1/2" • Bolt Hole Pattern: Inner slots: 1-3/4" x 2-7/8" / Outer slots: 2-7/8" x 2-7/8"
