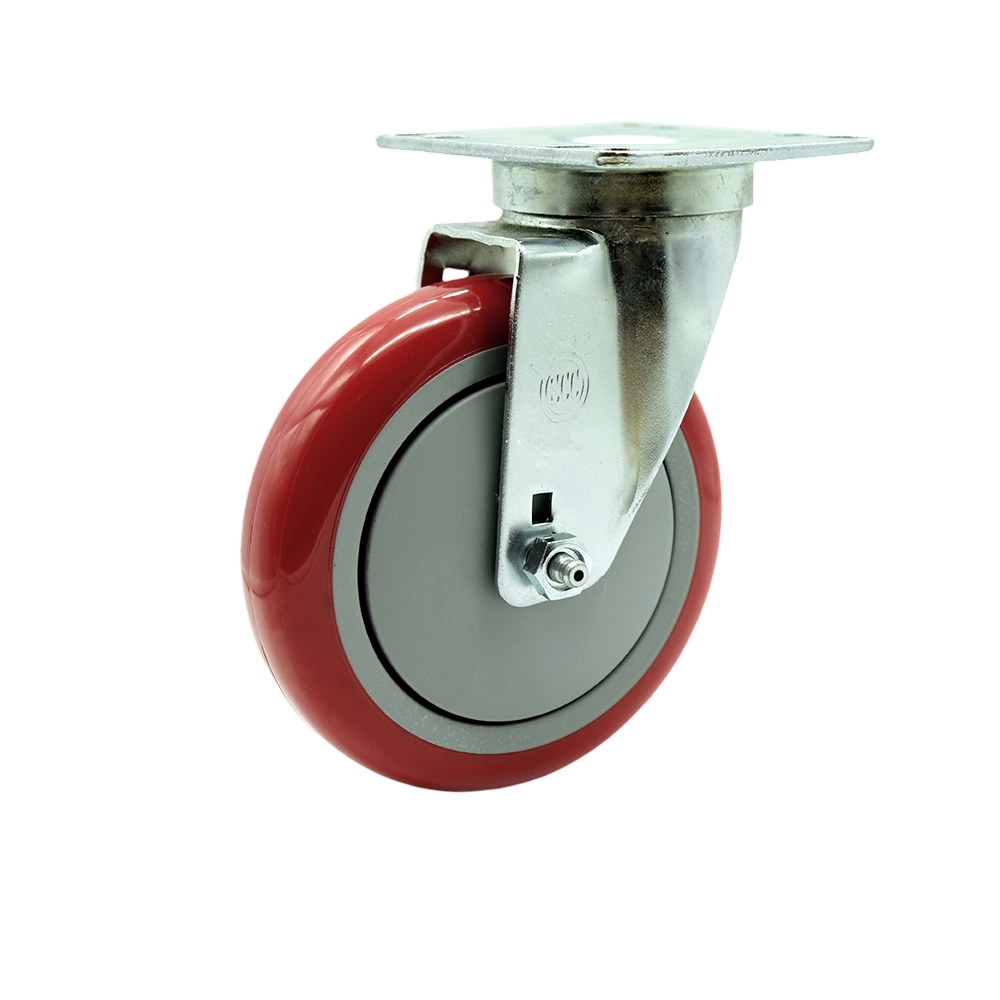

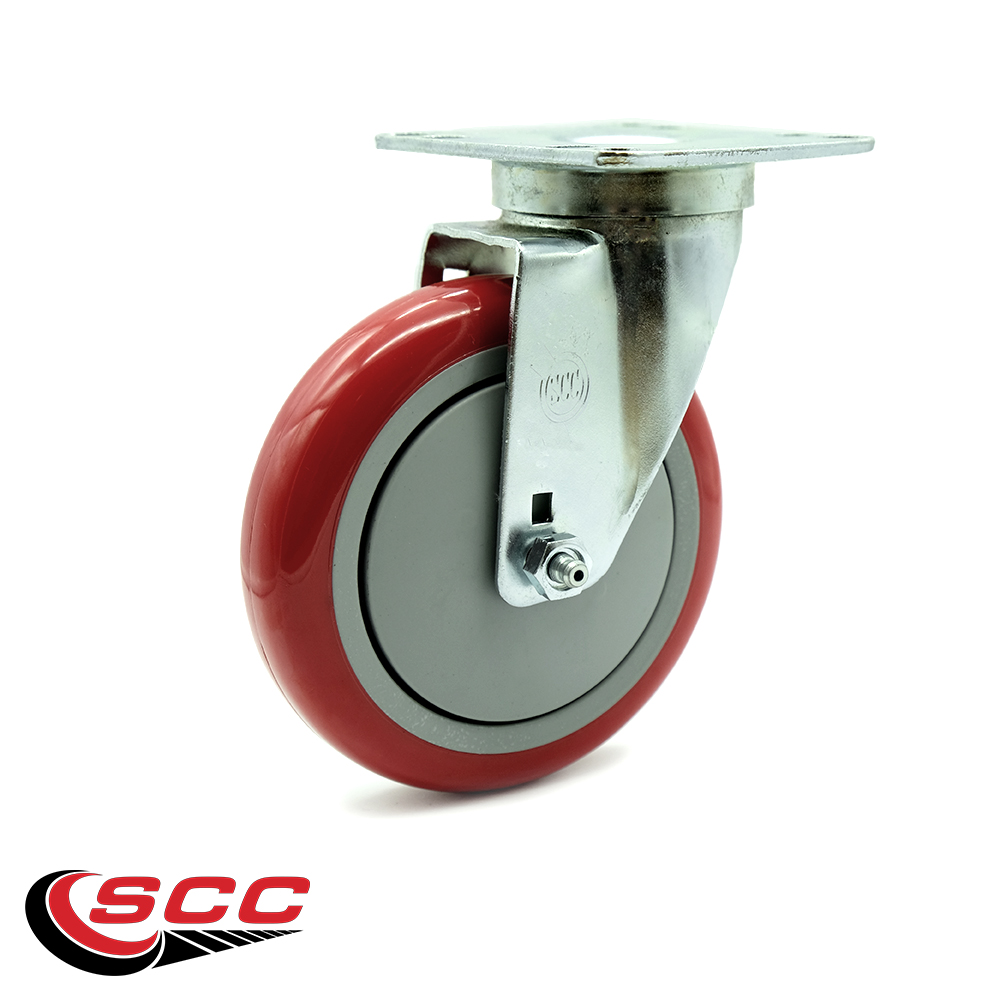

Service Caster – Universal Kitchen Caster – 5” Non-Marking Stainless Steel Polyurethane Red Wheel – Swivel – 350 lbs. Capacity

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-20S514-PPUB-RED-TPU1

Condition

new

Quantity

1

UPC

670533854465

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Capacity

350

Color

Swivel - No Brake - Red

Durometer

60D

Heat Capacity

-20 degrees F to 180 degrees F

Load Height

6-1/8"

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

5" Wheel

Top Plate Size

3-1/2" x 3-1/2"

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane tread on polyolefin core

Wheel Size

5" x 1-1/4"

Wheel Type

Polyurethane tread on polyolefin core

Description

Listing is for one (1) Service Caster Series #20 universal commercial kitchen and restaurant equipment swivel caster with a 5" diameter by 1-1/4" wide red polyurethane wheel capable of supporting 350 lbs./caster.Service Caster knows the demands of the commercial kitchen and restaurant industry and uses only the finest materials and craftsmanship to produce the Series #20 universal caster. With its bright zinc plated finish, heat-treated ball bearing raceway, and dust and thread guards, this versatile caster is built to last day after day on light and medium duty commercial kitchen and restaurant equipment. The Series #20 universal caster boasts polyurethane wheels that are non-marking, non-marring and roll smoothly thanks to an innovative ball bearing design, continuously performing without fail on all hard surfaces typically found in kitchen environments such as concrete, tile, and wood. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. Wheels are offered in five different colors – Gray, Blue, Black, Maroon, and Red. • Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
