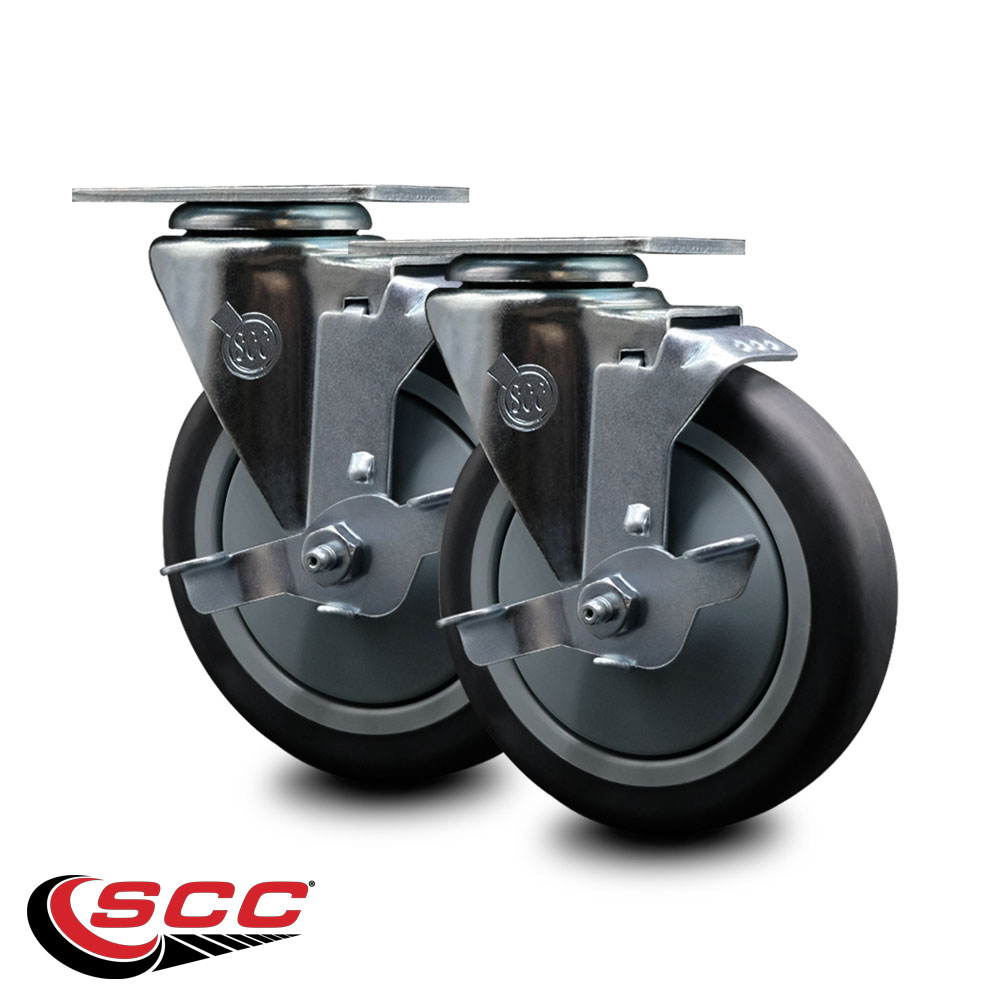

Service Caster Brand Replacement Set for Winco Caster CT-23B - Swivel Top Plate Caster with 5 Inch Thermoplastic Rubber Wheel and Top Lock Brake - 600 lbs. Total Capacity - Set of 2

Details

Manufacturer

Service Caster

Model

Series #20

SKU

WIN-SCC-20S514-TPRB-TLB-2

Condition

new

Quantity

2

UPC

734005415568

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

6 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

600

Color

2 Swivel - Top Lock Brakes

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Top lock brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

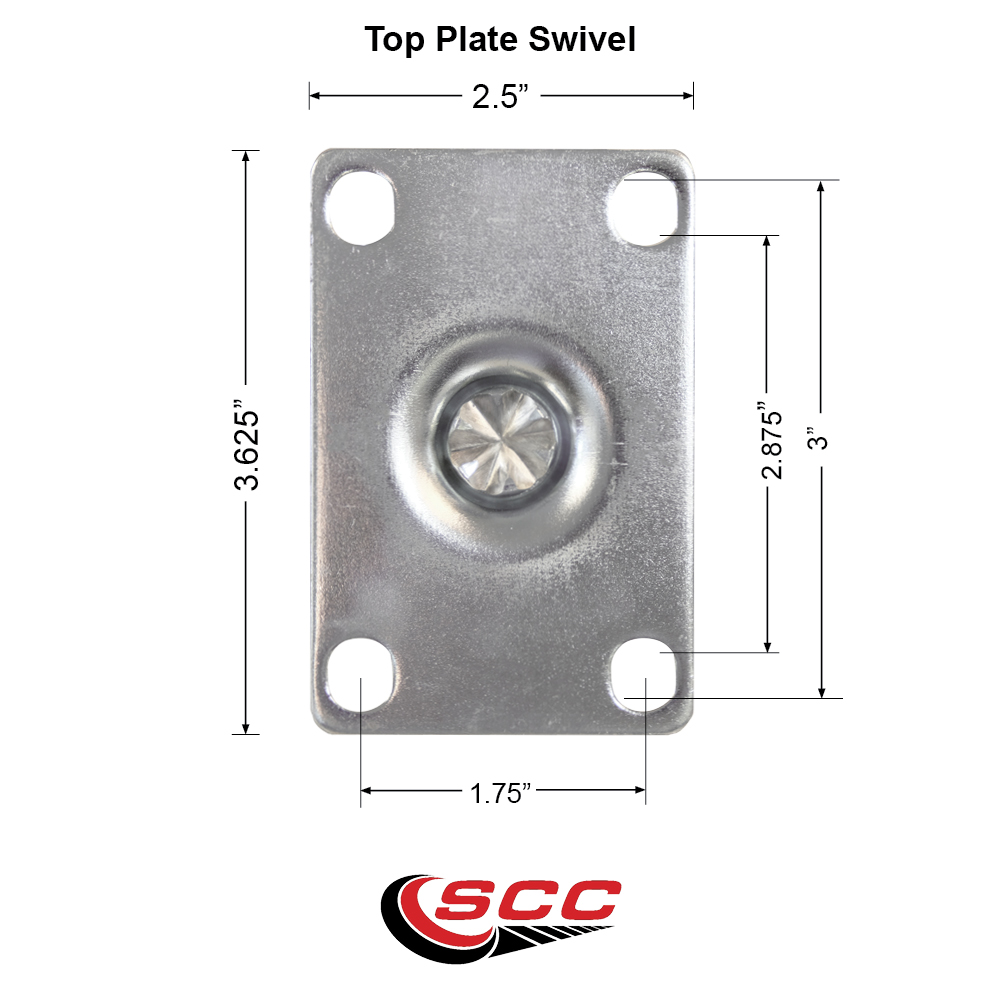

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(2) Swivel casters w/ top lock brakes

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Tread on Polyolefin Core

Wheel Size

5" x 1-1/4"

Wheel Type

Thermoplastic Rubber

Description

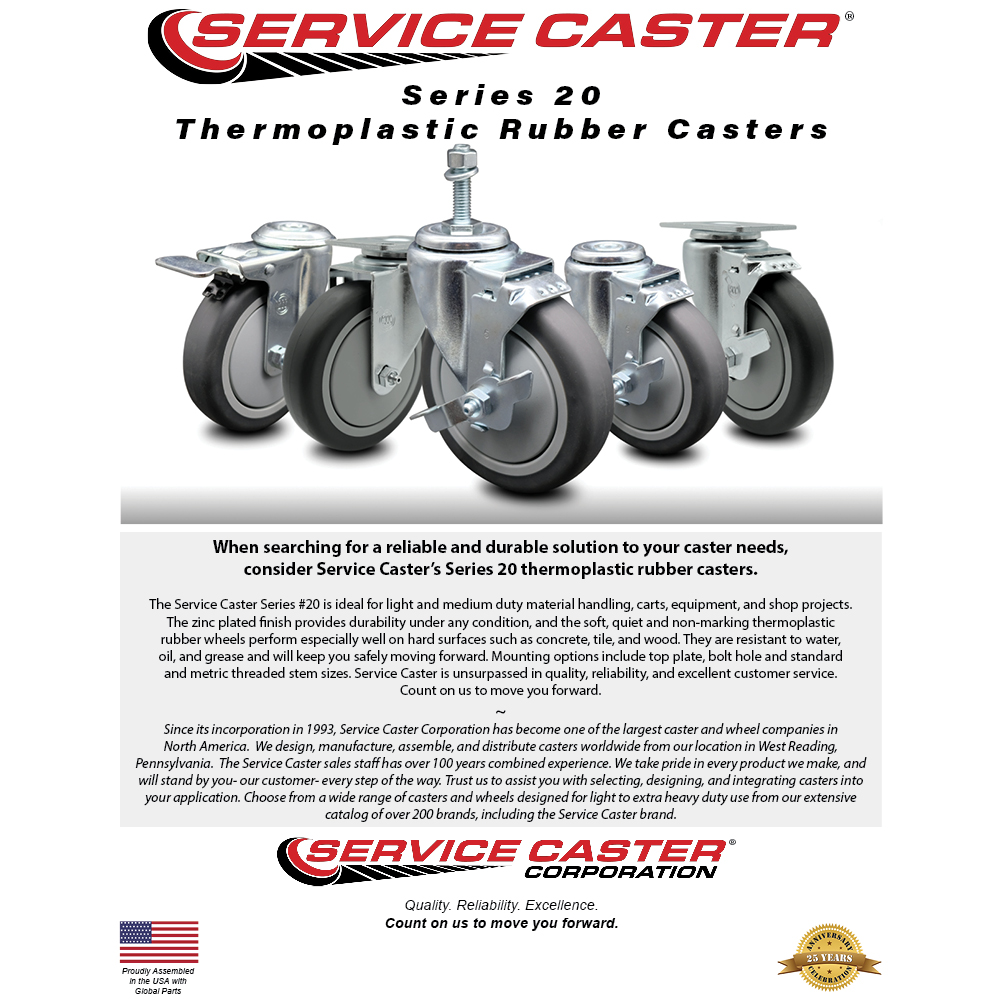

Listing is for two (2) Service Caster Series #20 swivel caster set with a 5" diameter by 1-1/4" wide thermoplastic rubber wheels and top lock brakes capable of supporting 250 lbs. per caster. When searching for a reliable and durable solution to your Winco replacement caster needs, consider Service Caster’s Series 20 thermoplastic rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the soft, quiet and non-marking thermoplastic rubber wheels perform especially well on hard surfaces such as concrete, tile, and wood. They are resistant to water, oil, and grease and will keep you safely moving forward. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Caster for Winco Caster: CT-23B • Weight Capacity: 600 lbs. • Compatible with Winco Ranges and Walk-In Refrigerators • HARDWARE NOT INCLUDED
