Service Caster Brand Replacement Set for WebstaurantStore Casters 901CASTERRR4 - Swivel Top Plate Casters with 5 Inch Hard Rubber Wheels - Includes 2 Swivel with Top Locking Brakes and 2 Swivel

Details

Manufacturer

Service Caster

Model

Series #20

SKU

WEB-SCC-20S514-HRS-TPU1-2-TLB-2

Condition

new

Quantity

4

UPC

734005546514

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

12 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

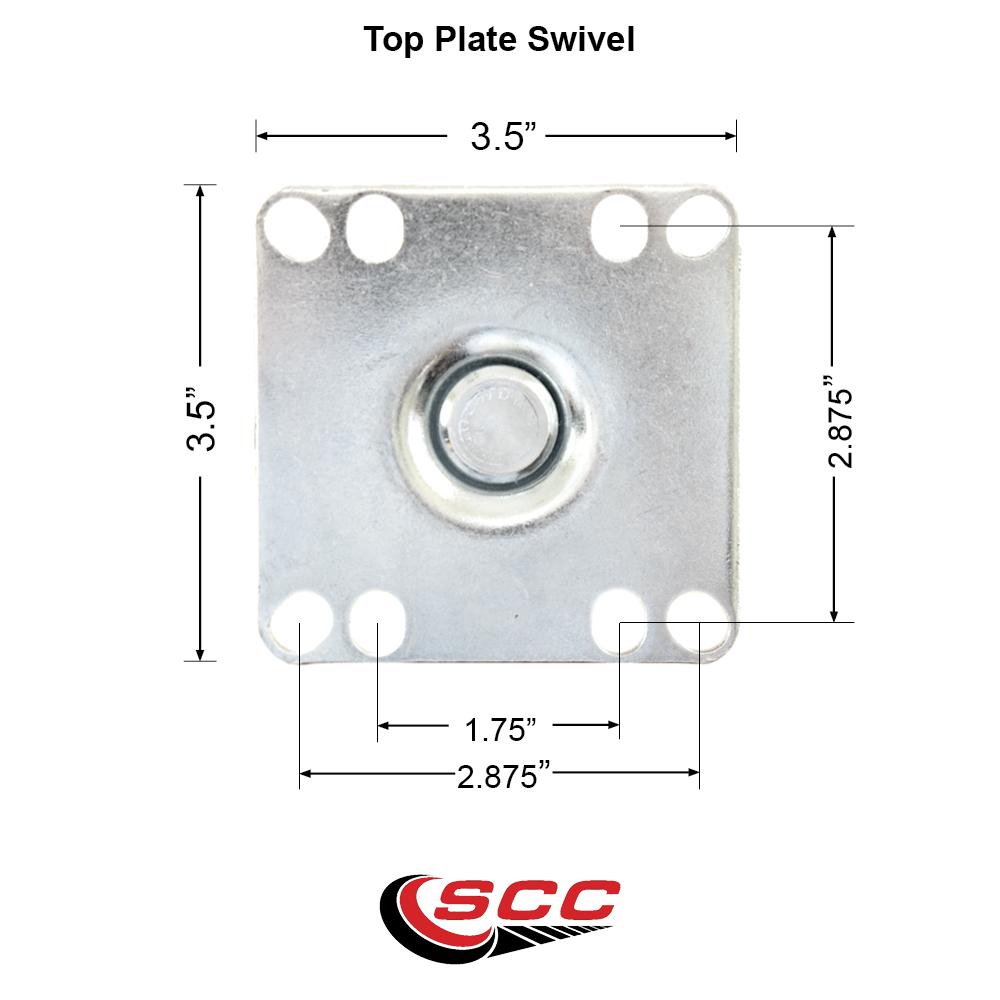

Bolt Pattern

Inner slots: 1-3/4" x 2-7/8" / Outer slots: 2-7/8" x 2-7/8"

Bolt Size

5/16" (hardware not included)

Capacity

1200

Color

4 Swivel w/2 Top Lock Brakes

Durometer

55D

Heat Capacity

-40 degrees F to 160 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8”

Locking Type

2 Top Lock Brakes

Lower Temperature

-40

Lower Temperature UofM

F

Material Type

Hard Rubber

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

6-1/8”

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Top Plate Size

3-1/2" x 3-1/2"

Tread Width

1.25

Tread Width UofM

inches

Type

(2) Swivel casters & (2) swivel casters w/top lock brakes

Wheel Bearing

Plain Bore

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Hard Rubber

Wheel Size

5" x 1-1/4"

Wheel Type

Hard Rubber

Description

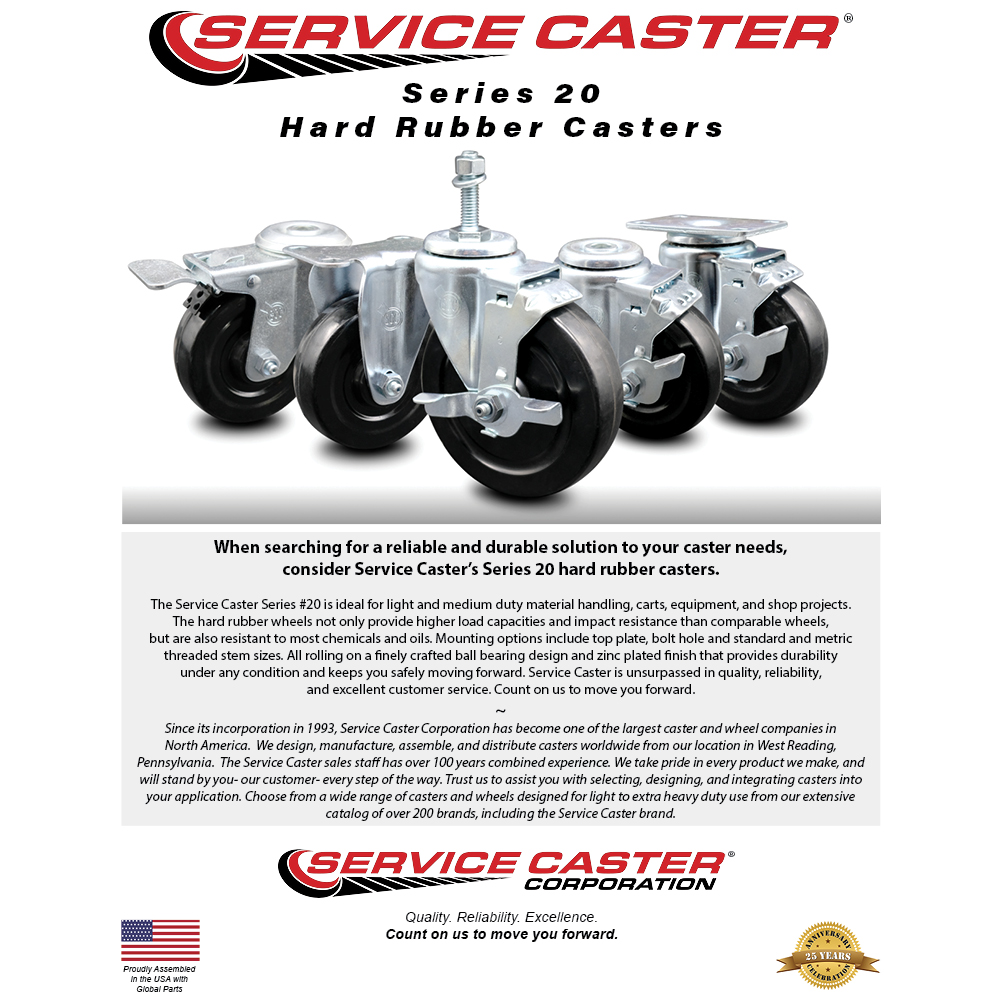

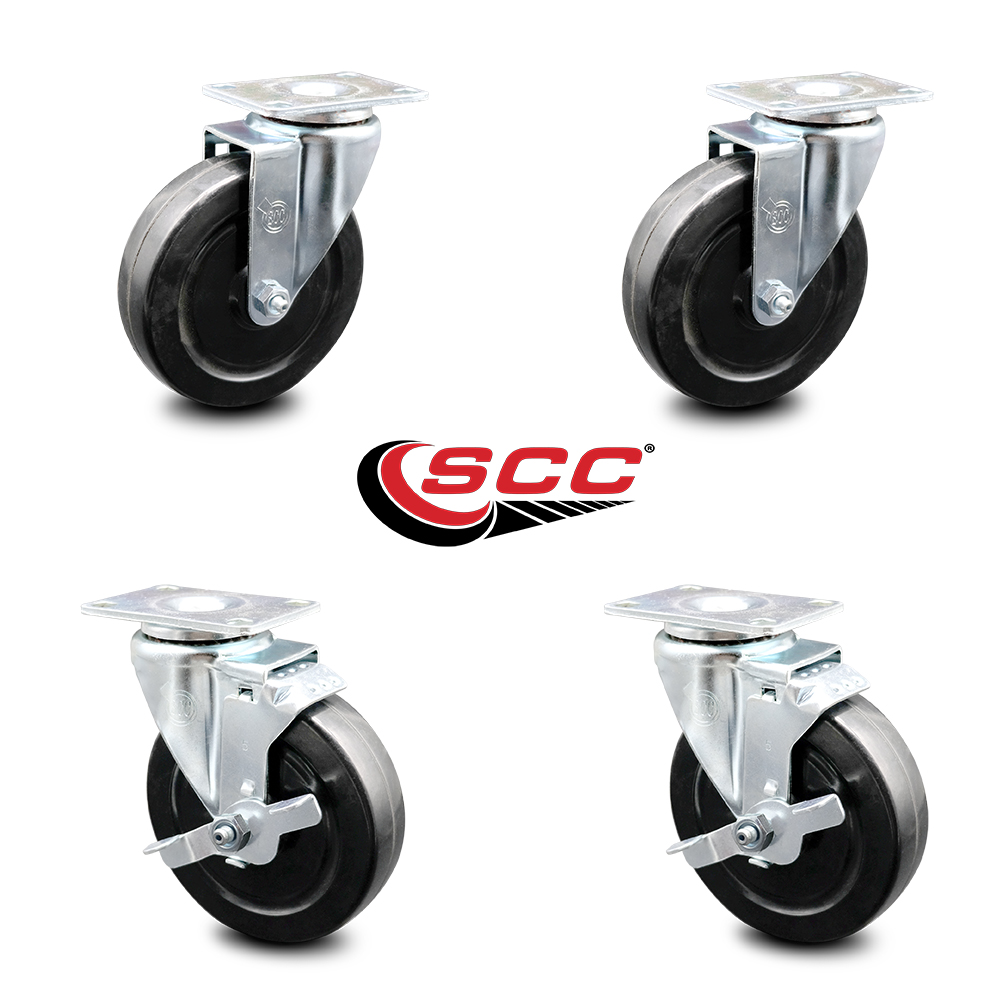

High quality replacement caster set for WebstaurantStore casters 901CASTERRR4. Listing is for a set of four (4) Service Caster Series #20 swivel casters, two (2) with top locking brakes, with 5" diameter by 1-1/4" wide hard rubber wheels capable of supporting a total weight of 1,200 lbs. (300 lbs./caster). When searching for a reliable and durable solution to your WebstaurantStore replacement caster set needs, consider Service Caster’s Series 20 hard rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The hard rubber wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Caster for WebstaurantStore Casters: 901casterrr4 • Weight Capacity: 1,200 lbs. • Compatible with a variety of cooking equipment • HARDWARE NOT INCLUDED
