Browse / Parts & Components / Service Caster Brand Replacement Set for PaintLine Casters - Swivel Top Plate Casters with 5 Inch Hard Rubber Wheel - Includes 6 Swivel Casters with Brakes- Fits PaintLine ProDryingRack EX Plus Series
Service Caster Brand Replacement Set for PaintLine Casters - Swivel Top Plate Casters with 5 Inch Hard Rubber Wheel - Includes 6 Swivel Casters with Brakes- Fits PaintLine ProDryingRack EX Plus Series
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- PAI-SCC-20S514-HRS-TLB-6
- Condition
- new
- Quantity
- 4
- UPC
- 734005415711
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 8 x 8 x 8 in
- Shipping weight
- 11 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Size
- 5/16" (hardware not included)
- Capacity
- 300
- Color
- 4 Swivel - Top Lock Brakes - Black
- Durometer
- 55D
- Feature
- Top lock brake
- Heat Capacity
- -40 degrees F to 160 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 6-1/8"
- Locking Type
- Top lock brake
- Lower Temperature
- -40
- Lower Temperature UofM
- F
- Material Type
- Hard Rubber
- Maximum Temperature
- 160
- Maximum Temperature UofM
- F
- Mounting Height
- 6-1/8"
- Mounting Type
- Top Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Plate
- Locking Castersor Wheels
- Yes
- Swivels
- Yes
- Size
- 5" Wheel
- Top Plate Size
- 2-1/2" x 3-5/8"
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- (4) Swivel casters w/ top lock brakes
- Wheel Bearing
- Plain Bore
- Wheel Diameter
- 5
- Wheel Diameter UofM
- inches
- Wheel Material
- Hard Rubber
- Wheel Size
- 5" x 1-1/4"
- Wheel Type
- Hard Rubber
Description

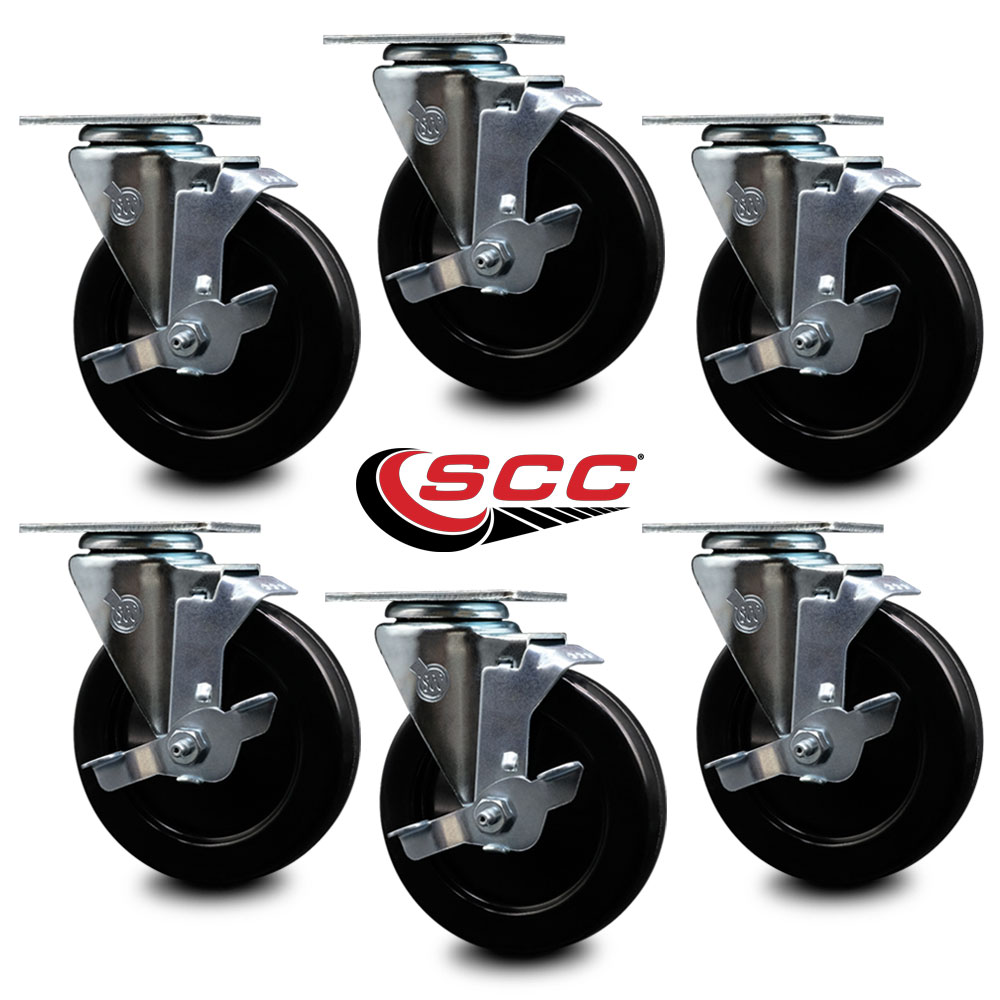

Listing is for a set of six (6) Service Caster Series #20 swivel casters, six (6) swivel casters with top lock brakes, 5” diameter by 1-1/4” wide hard rubber wheels. Supports a total weight of 1,800lbs (300lbs/per caster). When searching for a reliable and durable solution to your PaintLine replacement caster needs, consider Service Caster’s Series 20 hard rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The hard rubber wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Caster Set for PaintLine Casters • Weight Capacity: 1,800 lbs. • Compatible with PaintLine ProDryingRack EX Plus Series • HARDWARE NOT INCLUDED
