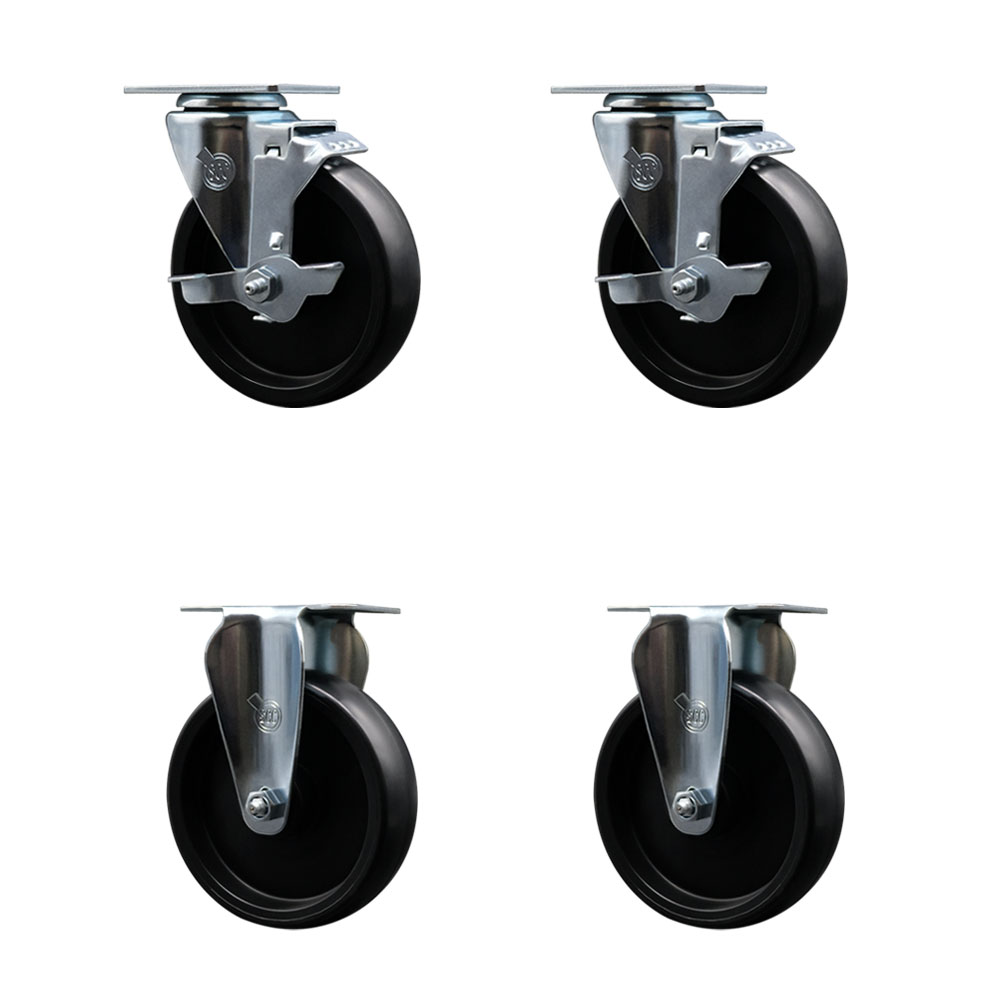

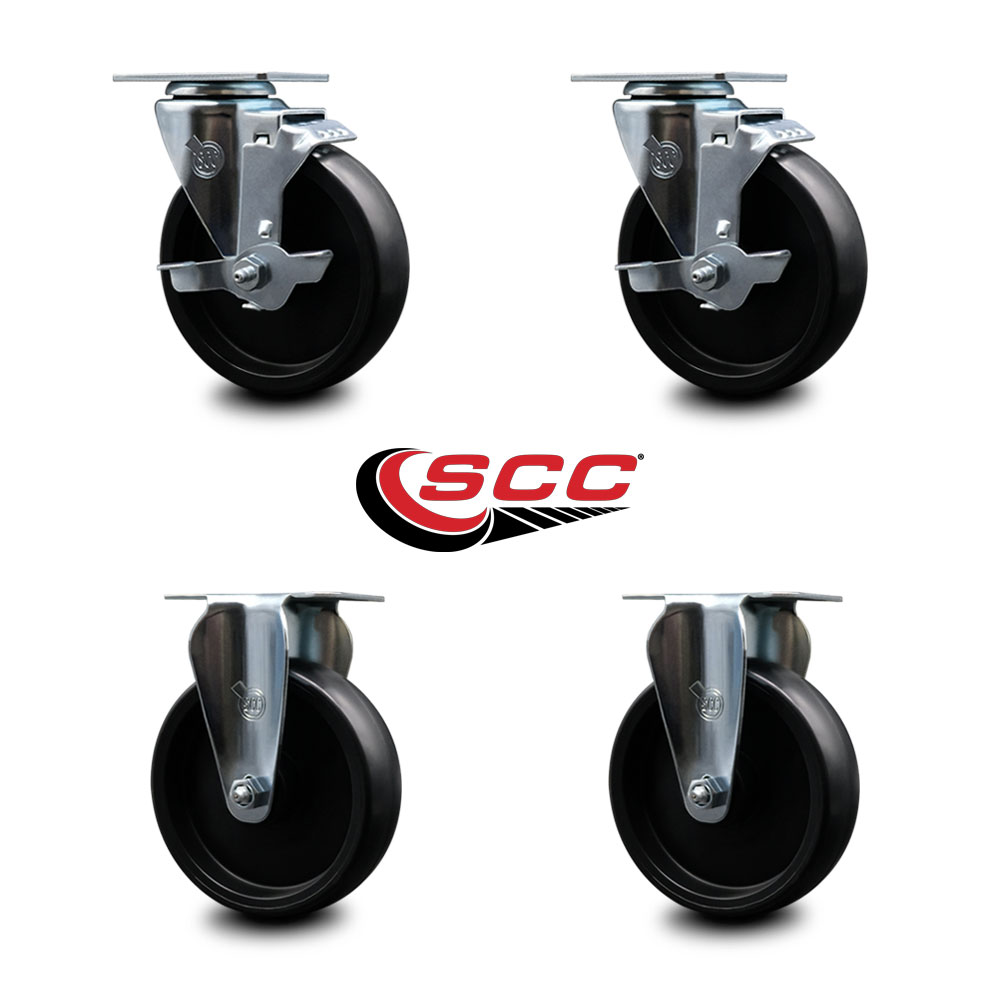

Service Caster Brand Replacement Set for Husky Casters- Swivel Top Plate Casters with 5 Inch Polyolefin Wheel-Includes 2 Swivel with Top Locking Brakes and 2 Rigid- Fits Husky Tool Cabinet HKST98066BK

Details

Manufacturer

Service Caster

Model

Series #20

SKU

HUS-SCC-20S514-POS-TLB-2-R-2

Condition

new

Quantity

4

UPC

734005545692

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

9 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

1400

Color

2 Swivel w/2 Top Lock Brakes - 2 Rigid

Durometer

70D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

2 Top Lock Brakes

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyolefin

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Black Wheel

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

(2) Swivel casters w/top lock brakes & (2) rigid casters

Wheel Bearing

Plain Bore

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyolefin

Wheel Size

5" x 1-1/4"

Wheel Type

Polyolefin

Description

High quality replacement caster set for Husky tool cabinets. Listing is for a set of four (4) Service Caster Series #20 casters, two (2) rigid and two (2) swivel casters with top locking brakes, with 5" diameter by 1-1/4" wide polyolefin wheels capable of supporting a total weight of 1,400 lbs. (350 lbs./caster). When searching for a reliable and durable solution to your Husky replacement caster set needs, consider Service Caster Series 20 top plate polyolefin wheel casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the polyolefin wheels provide very low rolling resistance, show a high resistance to many aggressive substances, and are maintenance free under normal operating conditions. Not only are they resistant to most chemicals and oils, but they will be sure to keep you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Casters for Husky Tool Box Cabinet • Weight Capacity: 1,400 lbs. • Compatible with Husky Toolbox Cabinet: HKST98066BK • HARDWARE NOT INCLUDED
