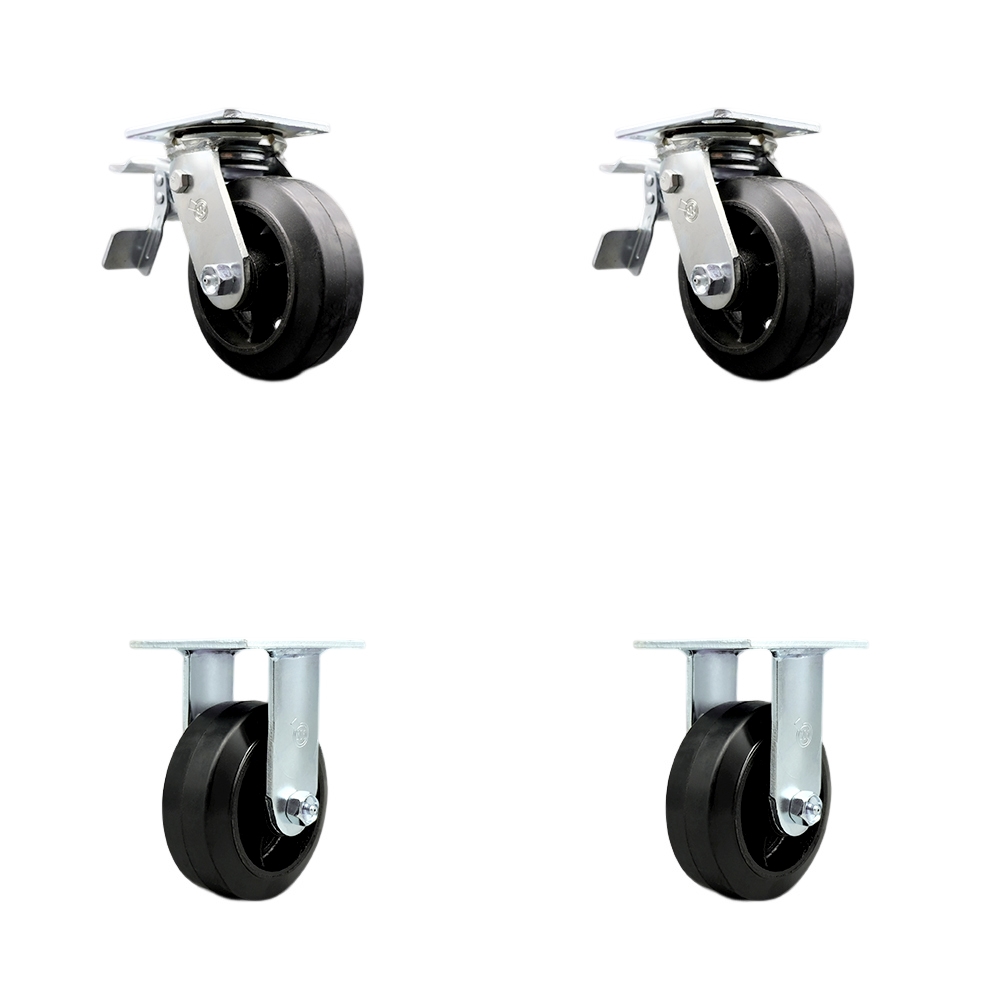

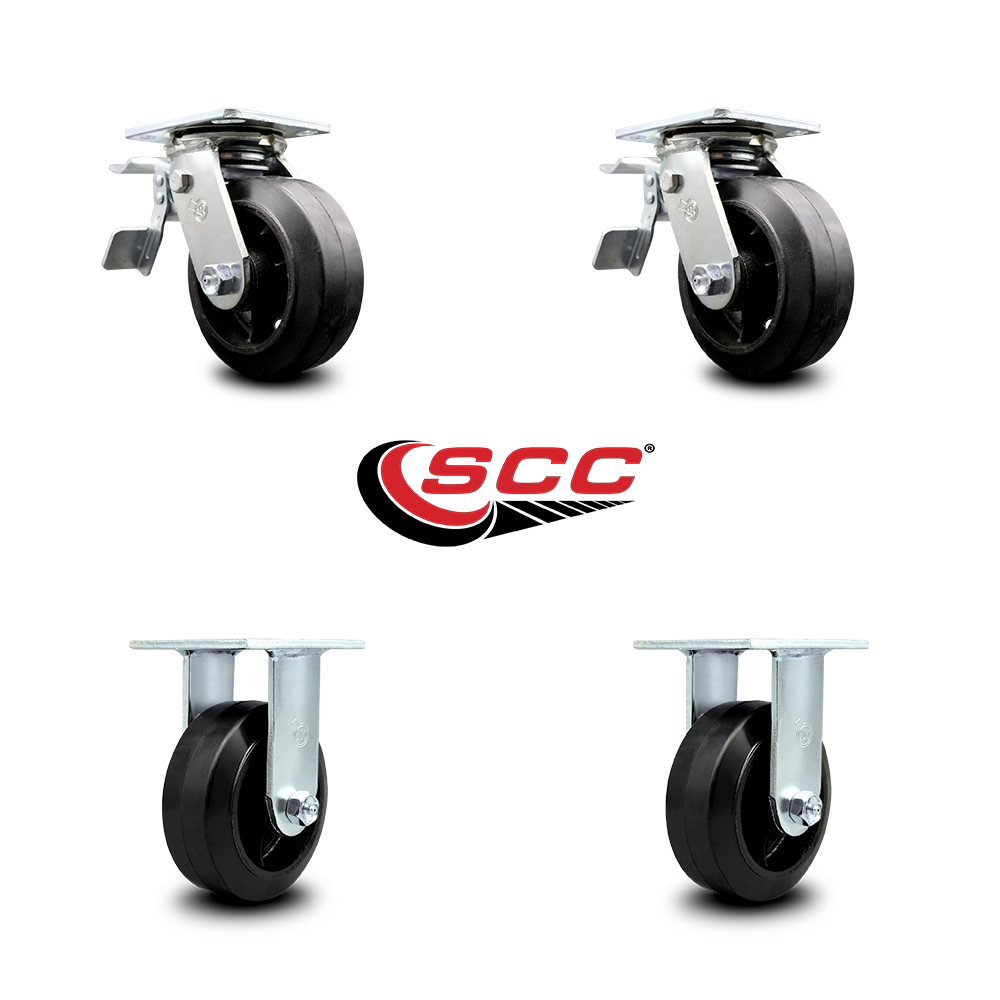

Service Caster Brand Replacement Set for Frontier Casters - Swivel Top Plate Casters with 5 Inch Rubber on Metal Wheels - Includes 2 Swivel with Brakes & 2 Rigid - Fits Frontier Mobile Workbench 00024

Details

Manufacturer

Service Caster

Model

Series #30

SKU

FRO-SCC-TTL30S520-RSR-2-R-2

Condition

new

Quantity

4

UPC

734005544619

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

26 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

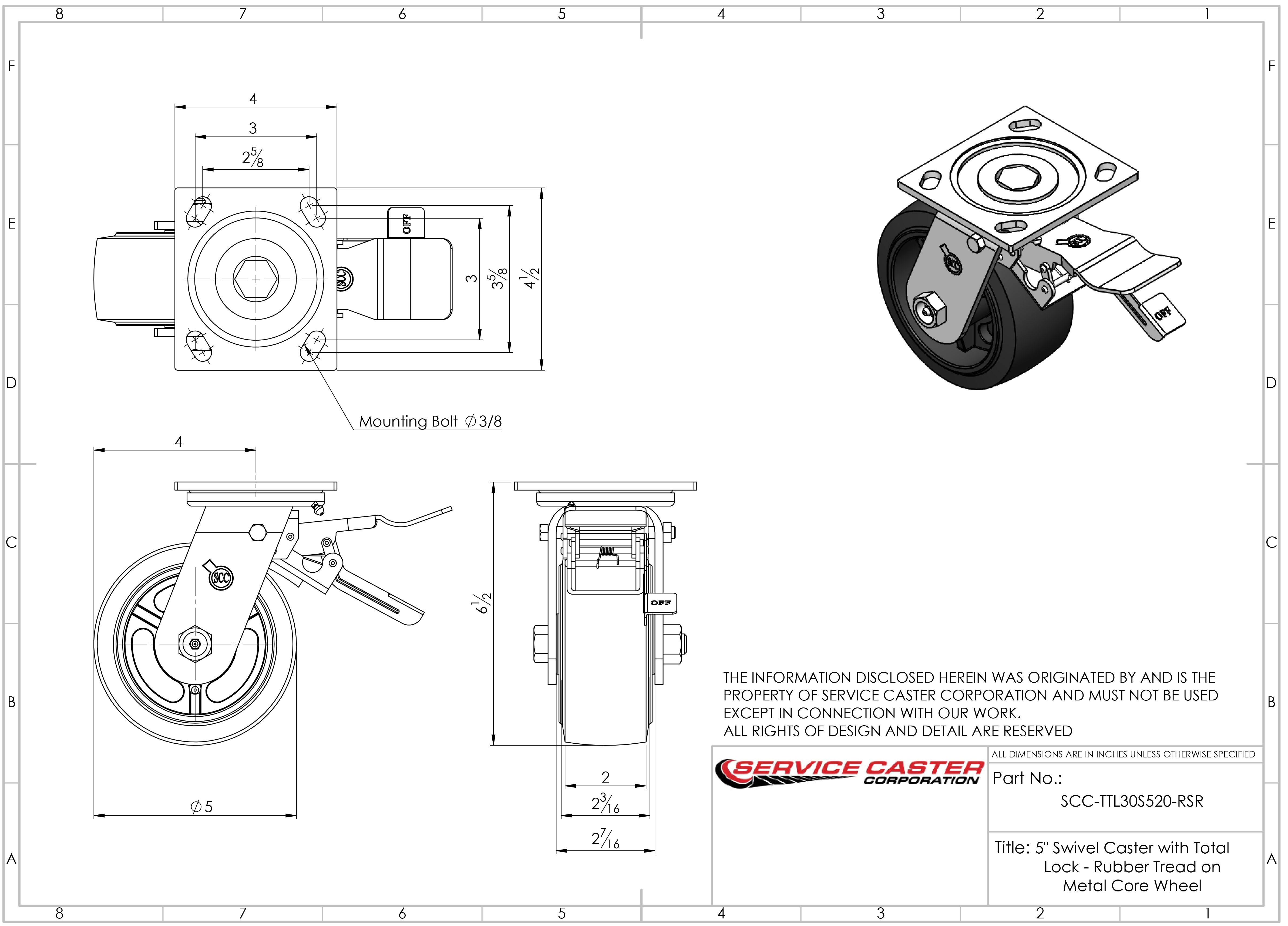

Bolt Pattern

2-5/8" x 3-5/8" to 3" x 3"

Bolt Size

3/8" (hardware not included)

Capacity

400

Color

2 Swivel w/2 Total Lock Brakes - 2 Rigid

Durometer

80A

Heat Capacity

-40 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/2"

Locking Type

2 Total Lock Brakes

Lower Temperature

-40

Lower Temperature UofM

F

Material Type

Rubber Tread on Metal Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) Swivel casters w/total lock brakes & (2) rigid casters

Wheel Bearing

Roller Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Rubber Tread on Metal Core

Wheel Size

5" x 2"

Wheel Type

Rubber Tread on Metal Core

Description

High quality replacement caster set for Frontier mobile workbench 00024. Listing is for a set of four (4) Service Caster Series #30 casters, two (2) swivel with total lock brakes and two (2) rigid casters, with 5" diameter by 2" wide rubber on cast iron wheels capable of supporting a total weight of 1,600 lbs. (400 lbs./caster). When searching for a reliable and durable solution to your Frontier replacement caster set needs, consider Service Caster’s Series 30 moldon rubber on cast iron wheel casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The moldon rubber tread performs especially well on hard surfaces such as concrete, tile, and wood, while the cast iron core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Casters for Frontier Casters: 00024 • Compatible with Frontier Mobile Workbench • Weight Capacity: 1,600 lbs. Total Capacity • HARDWARE NOT INCLUDED
