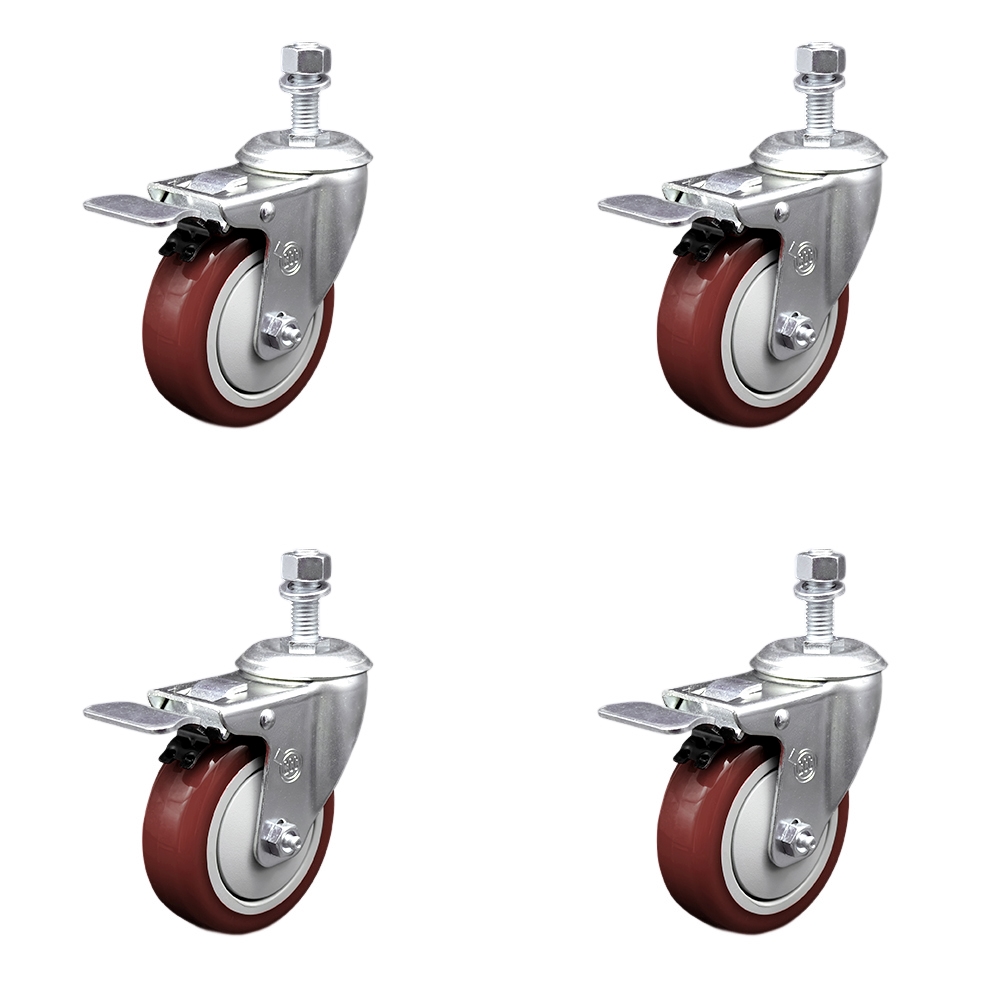

Service Caster Brand Replacement Set for Eaton Tripp Casters DMCCASTER - Swivel Threaded Stem Casters with 4 Inch Maroon Polyurethane Wheels and 1/2" Stems - Includes 4 with Total Lock Brakes

Details

Manufacturer

Service Caster

Model

Series #20

SKU

EAT-SCC-TSTTL20S414-PPUBMRN-121315-4

Condition

new

Quantity

4

UPC

734005546460

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

9 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

350

Color

4 Swivel - Total Lock Brakes - Maroon

Durometer

60D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

4 Total Lock Brakes

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Threaded Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Stem

1/2"-13 x 1-1/2" Threaded Stem

Stem Diameter

1/2"

Stem Length

1.5

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

1.5

Tread Width

1.25

Tread Width UofM

inches

Type

(4) Swivel casters w/ total lock brakes

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

4" x 1-1/4"

Wheel Type

Polyurethane Tread on Polyolefin Core

Description

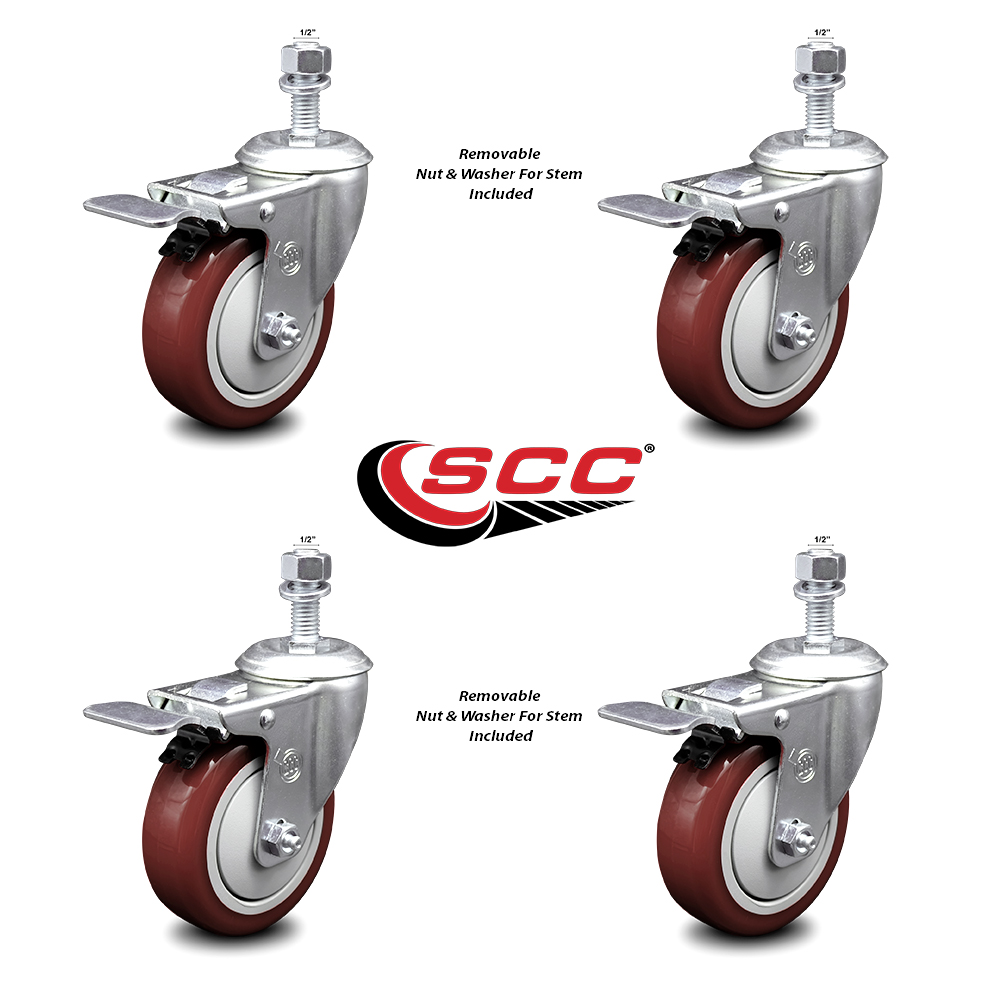

High quality replacement caster set for Eaton Tripp casters DMCCASTER. Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) swivel 1/2" threaded stem casters with total lock brakes, 4” diameter by 1-1/4” wide maroon polyurethane wheels. Supports a total weight of 1,400lbs (350lbs/per caster). When searching for a reliable and durable solution to your McMaster Carr replacement caster set needs, consider Service Caster’s Series 20 threaded stem polyurethane casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The bolt hole can accept a bolt or a customized stem, allowing for any type of mounting requirement. The zinc plated finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood. All rolling on a finely crafted ball bearing design that will keep you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Casters for Eaton Tripp Lite Rolling TV/Monitor Carts • Weight Capacity: 1,400 lbs. • Compatible with Eaton Tripp Lite Rolling TV/Monitor Carts: DMCCASTER • HARDWARE NOT INCLUDED
