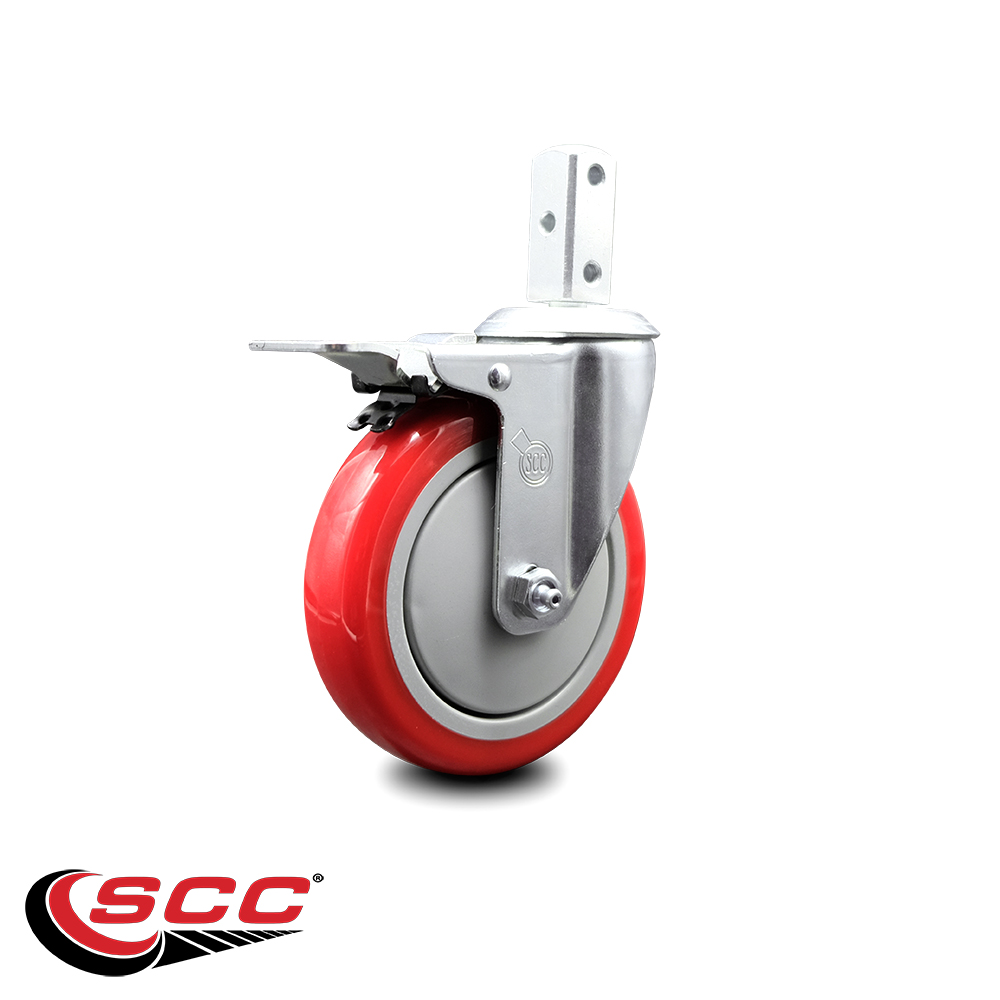

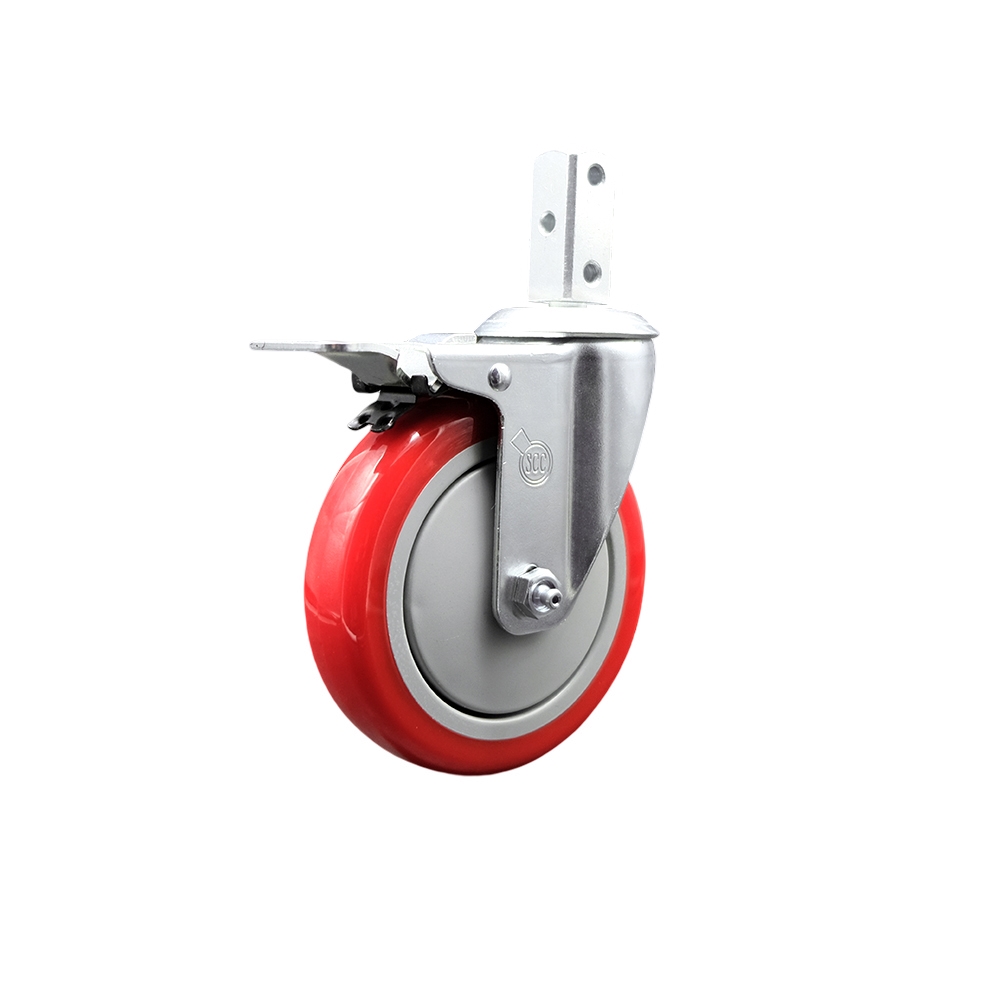

Service Caster Brand Replacement for MetalTech Caster I-C1CAS5 - Swivel 7/8 Inch Square Stem Caster with 5 Inch Red Polyurethane Wheel and Total Lock Brake - 350 lbs. Capacity Per Caster

Details

Manufacturer

Service Caster

Model

Series #20

SKU

MET-SCC-SQTTL20S514-PPUB-RED-78

Condition

new

Quantity

1

UPC

734005415537

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

350

Color

Swivel - Total Lock Brake - Red

Durometer

60D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Total lock brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Square Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Stem

7/8" x 2" Square Stem

Stem Diameter

7/8"

Stem Length

2

Stem Length UofM

inches

Stem Type

Square Stem

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster w/ total lock brake

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

5" x 1-1/4"

Wheel Type

Polyurethane Tread on Polyolefin Core

Description

Listing is for one (1) Service Caster Series #20 swivel caster with a 5” diameter by 1-1/4” wide gray polyurethane wheel and a 7/8" square stem with total lock brake capable of supporting 350lbs./caster. When searching for a reliable and durable solution to your MetalTech replacement caster needs, consider Service Caster’s Series 20 square stem polyurethane casters.The Service Caster Series 20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood. The square stems are designed to be bolted or riveted onto the inside of angled iron legs or against any flat surface. All rolling on a finely crafted ball bearing design that keeps you moving forward. • Fits MetalTech Jobsite Series 6' Baker and Drywall & Panel Hoist, Scaffoldbenchs, Outriggers and Trapdoor • Compatible Models: I-CISC, I-IDPL, I-CISCMT, I-CISCWB, I-BMSO4TT, I-CISO4 and I-CISCTP • Weight Capacity: 350 lbs. Capacity Per Caster • HARDWARE NOT INCLUDED
