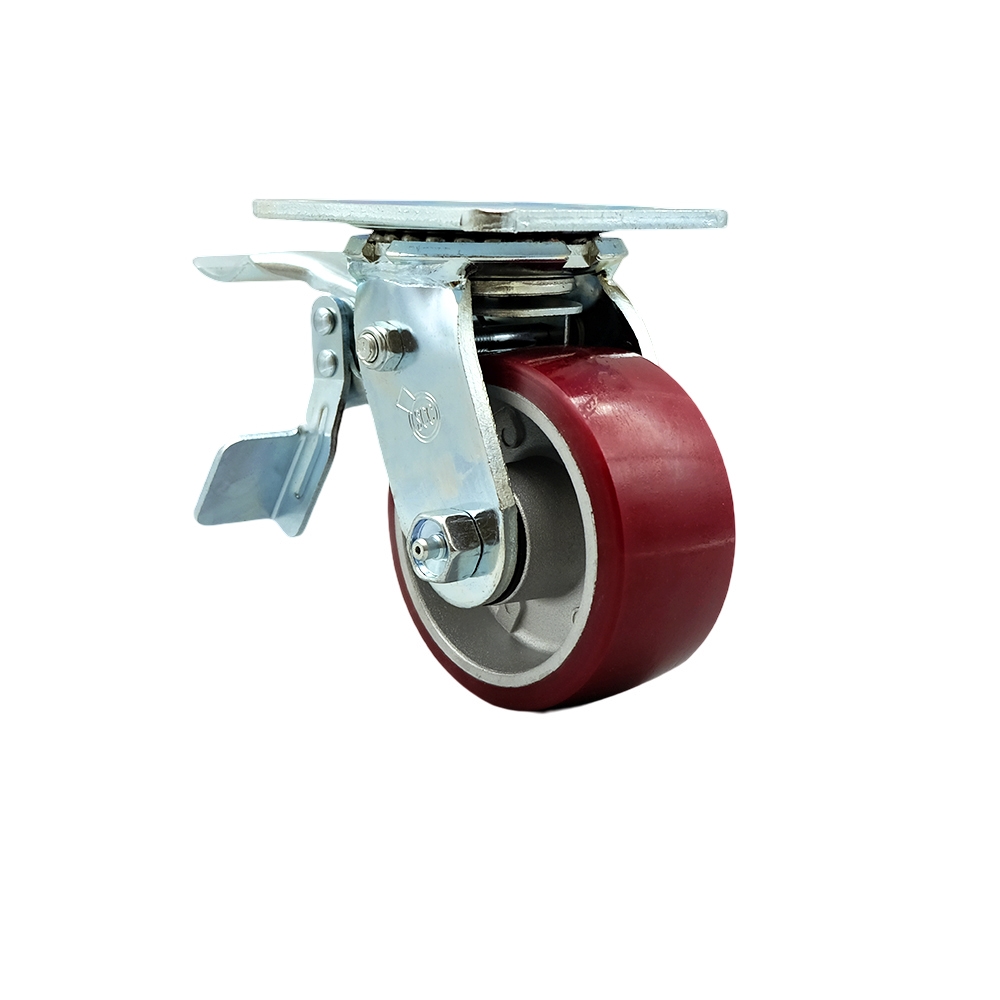

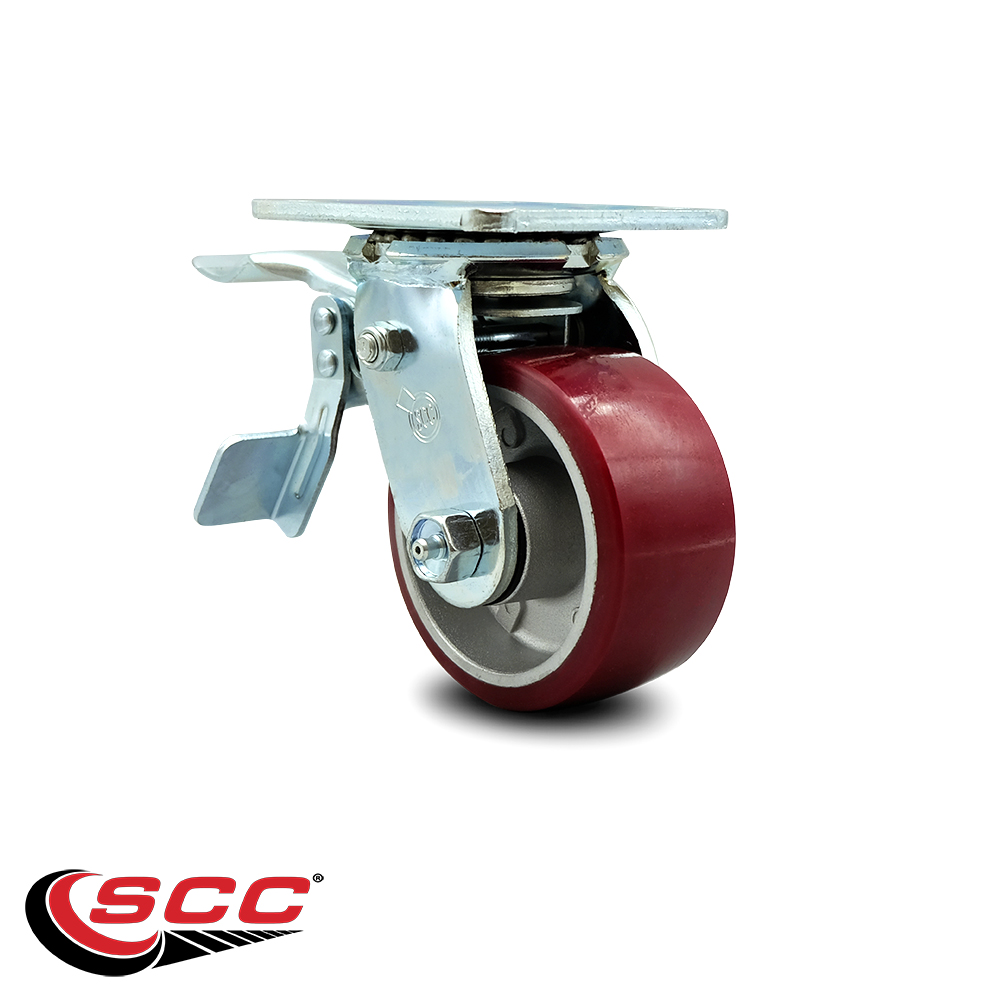

Service Caster Brand Replacement for McMaster Carr Caster 30305T192 – Swivel Top Plate Caster with 4 Inch Polyurethane on Aluminum Wheel and Total Lock Brake – 700 lbs. Capacity Per Caster

Details

Manufacturer

Service Caster

Model

Series #30

SKU

MCM-SCC-TTL30S420-PAR

Condition

new

Quantity

1

UPC

734005414998

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

5.4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

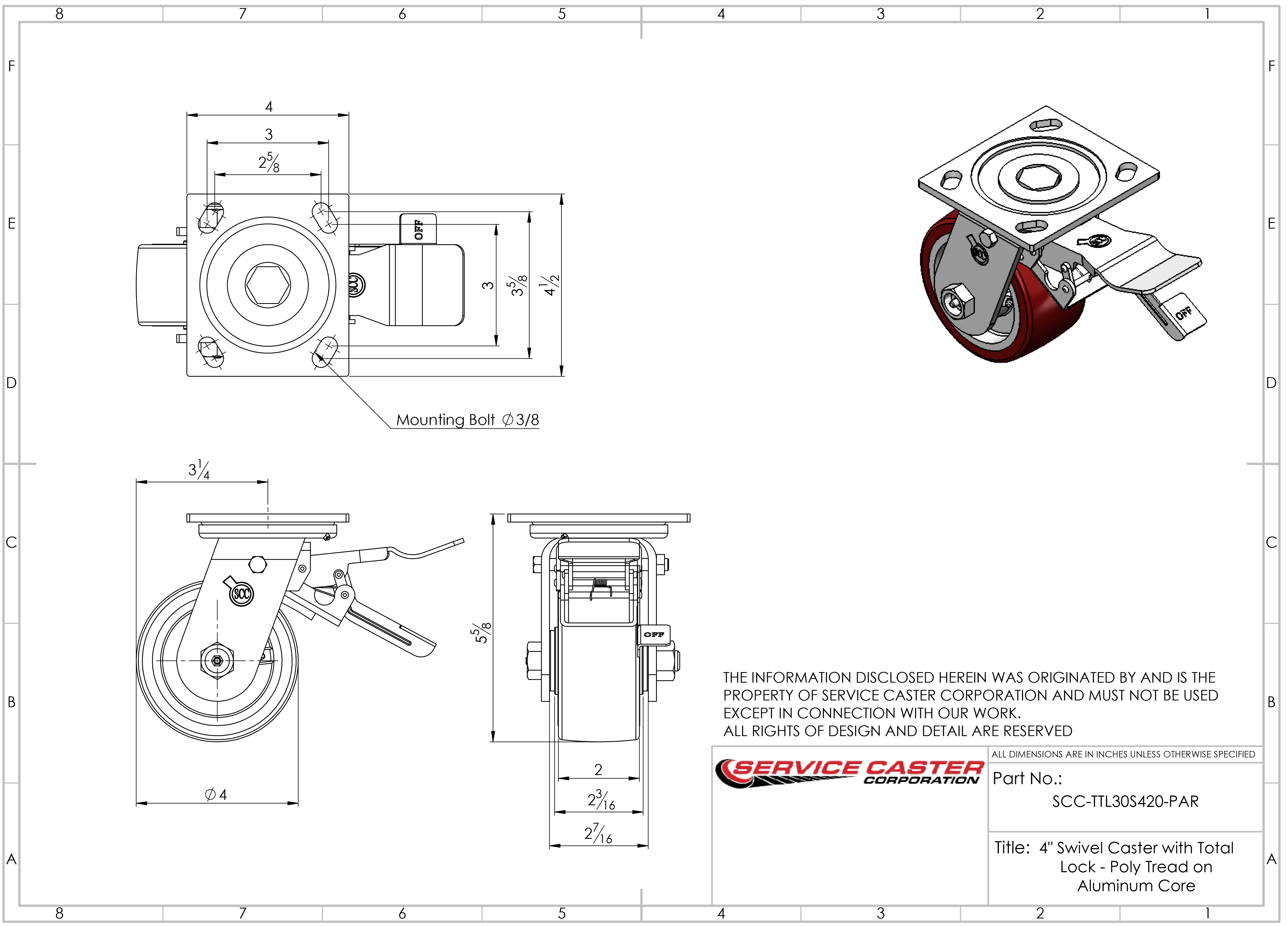

Bolt Size

3/8" (hardware not included)

Capacity

700

Color

Swivel - Total Lock Brake - Maroon

Durometer

95A

Heat Capacity

-45 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-5/8"

Locking Type

Total Lock Brake

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

5-5/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

30305T192

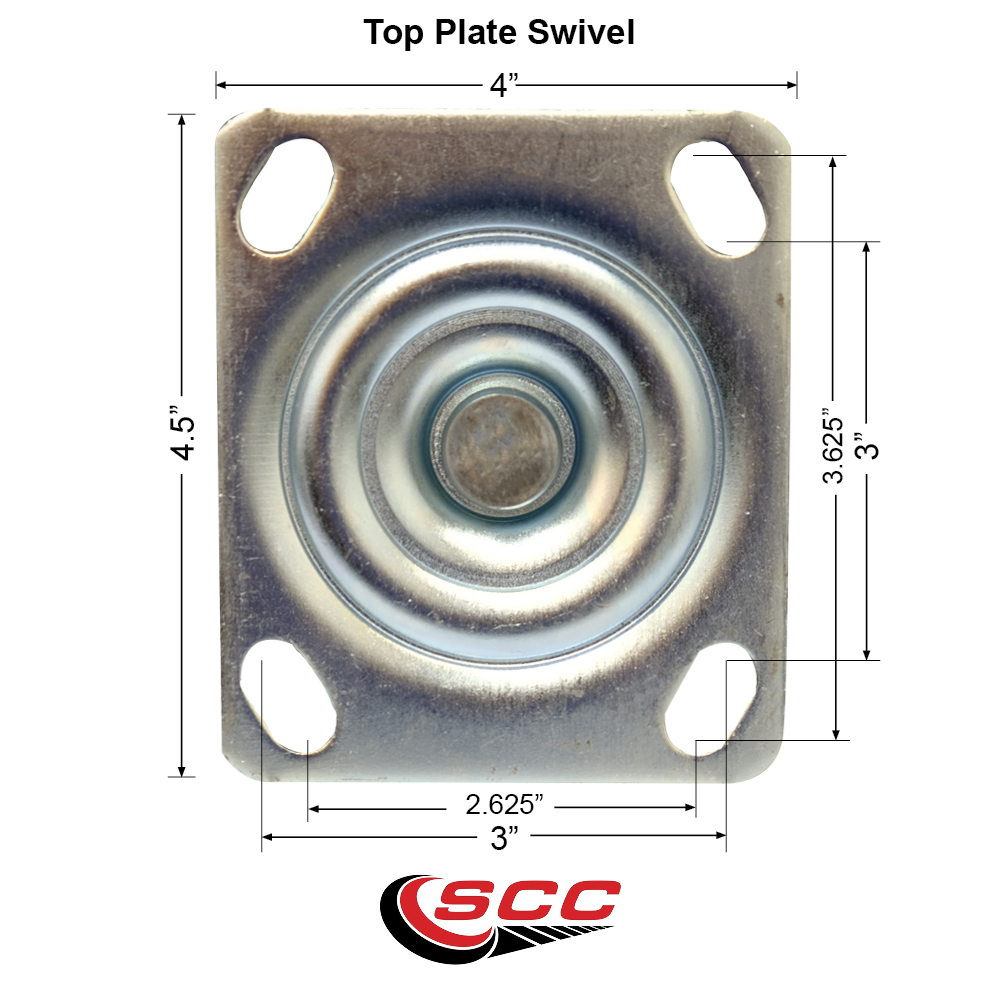

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

swivel caster w/ total lock brake

Wheel Bearing

Roller Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Aluminum Core

Wheel Size

4" x 2"

Wheel Type

Polyurethane tread on aluminum core

Description

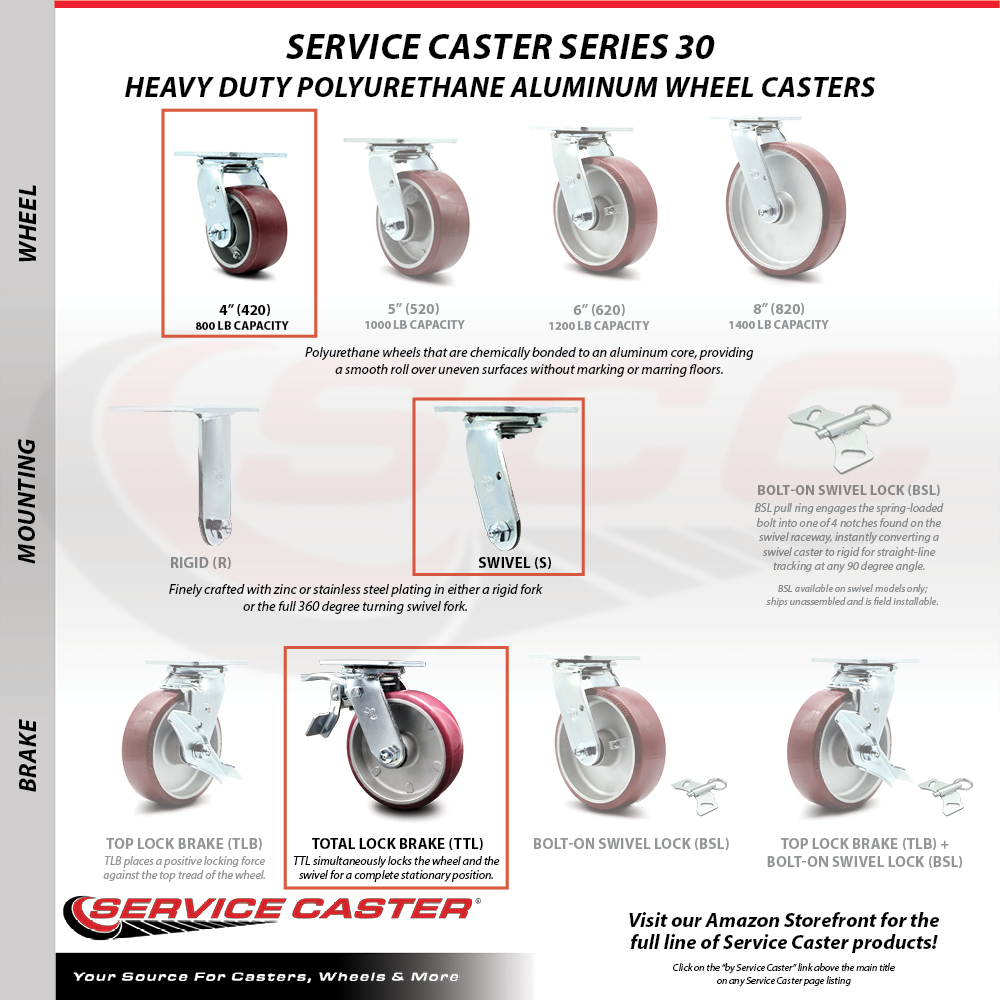

Listing is for one (1) Service Caster Series #30 swivel caster with a 4" diameter by 2" wide polyurethane on aluminum wheel and a total capable of supporting 700 lbs./caster. Introducing Service Caster's replacement caster, a perfect alternative to the McMaster Carr caster 30305T192. When searching for a reliable and durable solution to your caster needs, rely on Service Caster Series 30 polyurethane aluminum wheel casters. The Series #30 features heavy duty polyurethane wheels that are chemically bonded to an aluminum core, providing a smooth roll over uneven surfaces without marking or marring floors. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these versatile casters are ideal for a wide range of applications. Use on dollies, platform trucks, warehouse carts and freight terminals, or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 Polyurethane on Aluminum casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 700 lbs Capacity/Caster, 5": 900 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • HARDWARE NOT INCLUDED
