Browse / Parts & Components / Service Caster Brand Replacement for McMaster Carr Caster 2835T14 – Swivel Top Plate Caster with 3 Inch Gray Thermoplastic Rubber Wheel and Top Lock Brake – 210 lbs. Capacity Per Caster

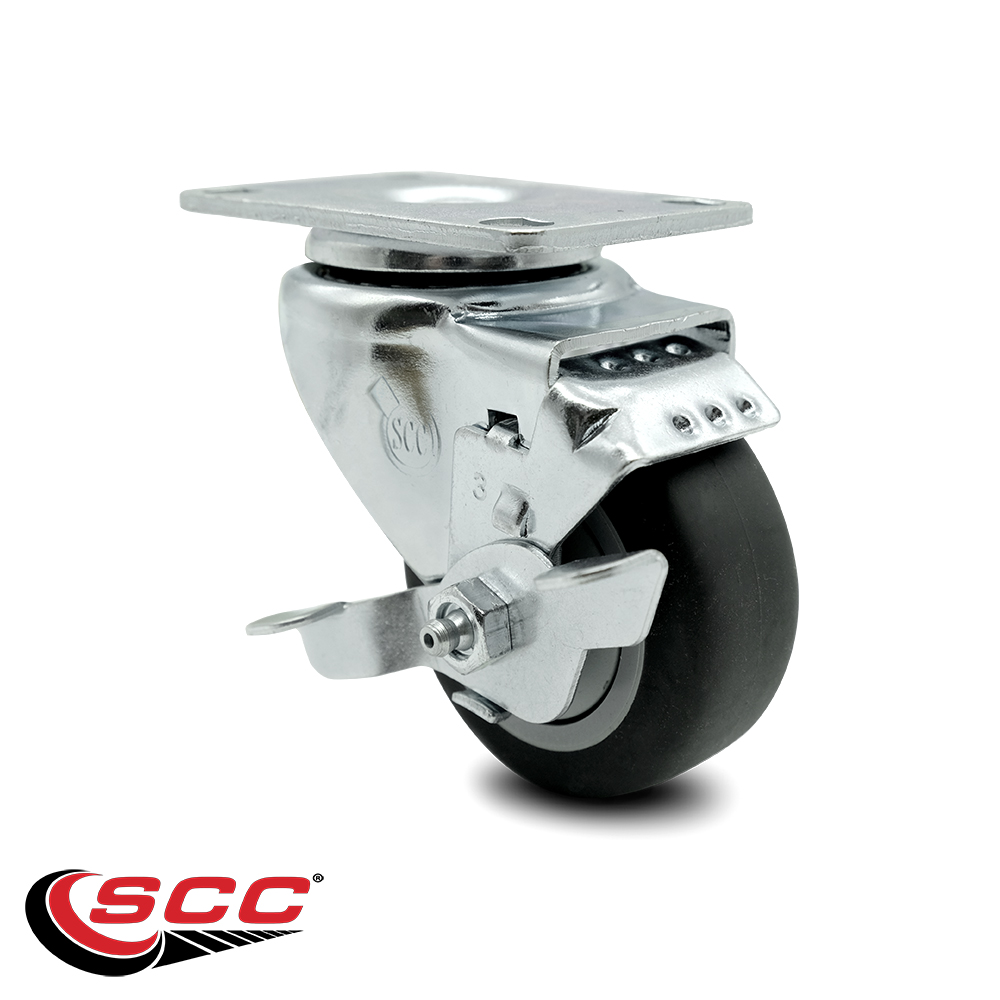

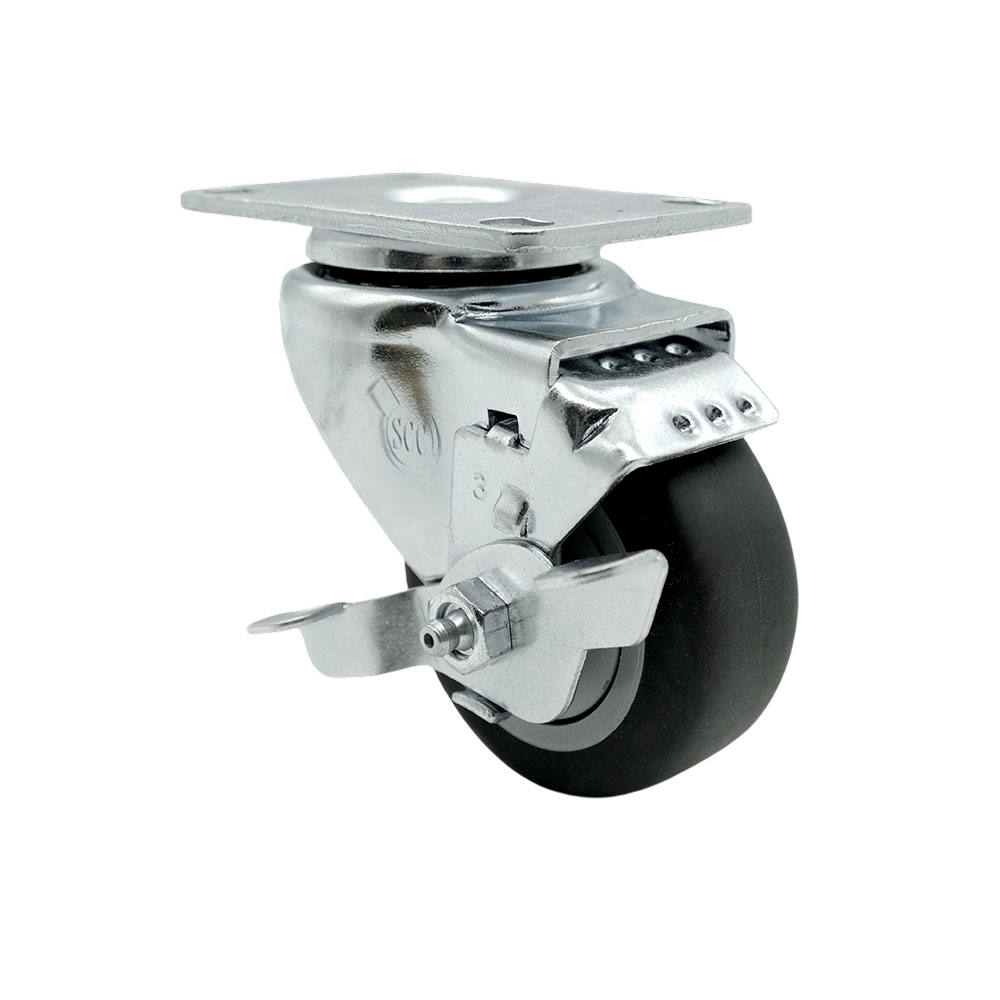

Service Caster Brand Replacement for McMaster Carr Caster 2835T14 – Swivel Top Plate Caster with 3 Inch Gray Thermoplastic Rubber Wheel and Top Lock Brake – 210 lbs. Capacity Per Caster
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- MCM-SCC-20S314-TPRB-TLB
- Condition
- new
- Quantity
- 1
- UPC
- 734005224870
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 5 x 5 x 5 in
- Shipping weight
- 4 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications

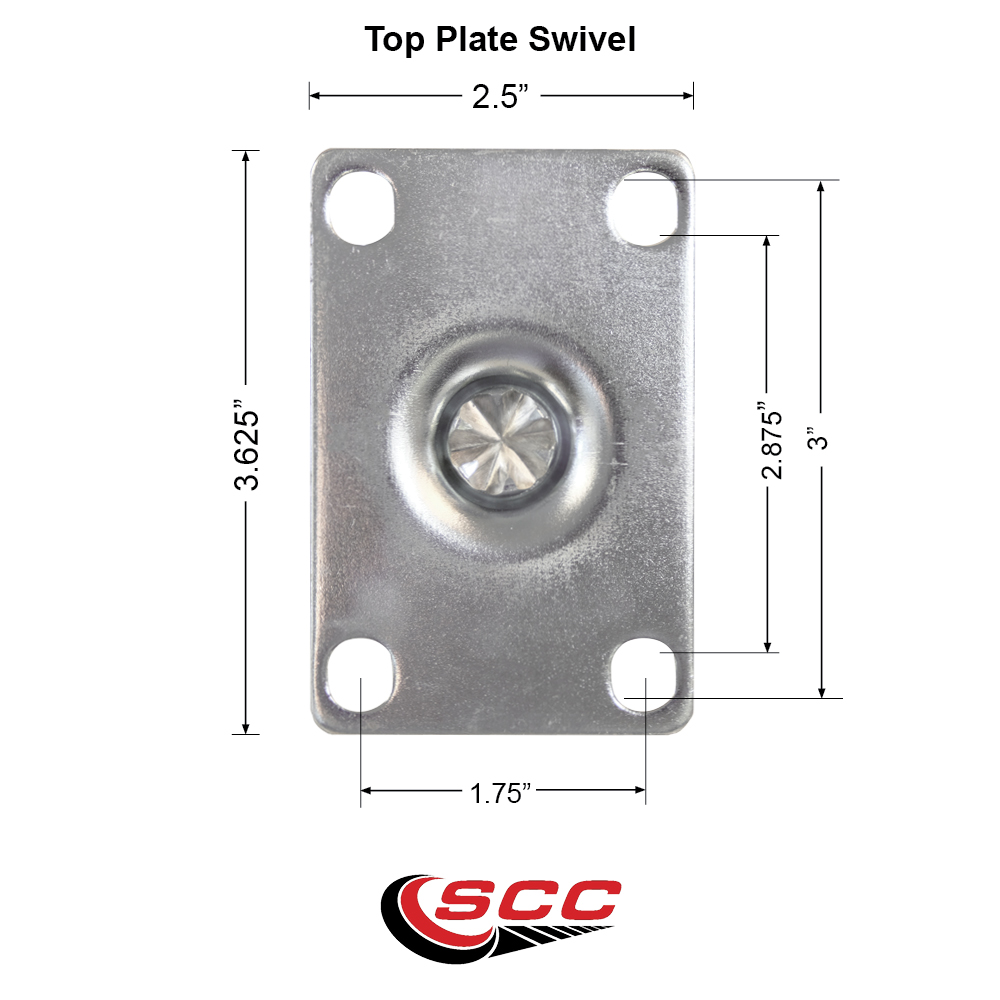

- Bolt Pattern
- 1-3/4" x 2-7/8" to 3"
- Bolt Size
- 5/16" (hardware not included)
- Capacity
- 210
- Color
- Swivel - Top Lock Brake - Top Plate
- Durometer
- 75A
- Feature
- Top lock brake
- Heat Capacity
- -20 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 4-1/8"
- Locking Type
- Top lock brake
- Lower Temperature
- -20
- Lower Temperature UofM
- F
- Material Type
- Thermoplastic Rubber
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 4-1/8"
- Mounting Type
- Top Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Plate
- Locking Castersor Wheels
- Yes
- Swivels
- Yes
- Size
- 2835T14
- Top Plate Size
- 2-1/2" x 3-5/8"
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- (1) swivel caster w/top lock brake
- Wheel Bearing
- Precision Ball Bearing
- Wheel Diameter
- 3
- Wheel Diameter UofM
- inches
- Wheel Material
- Thermoplastic Rubber
- Wheel Size
- 3" x 1-1/4"
- Wheel Type
- Thermoplastic Rubber
Description

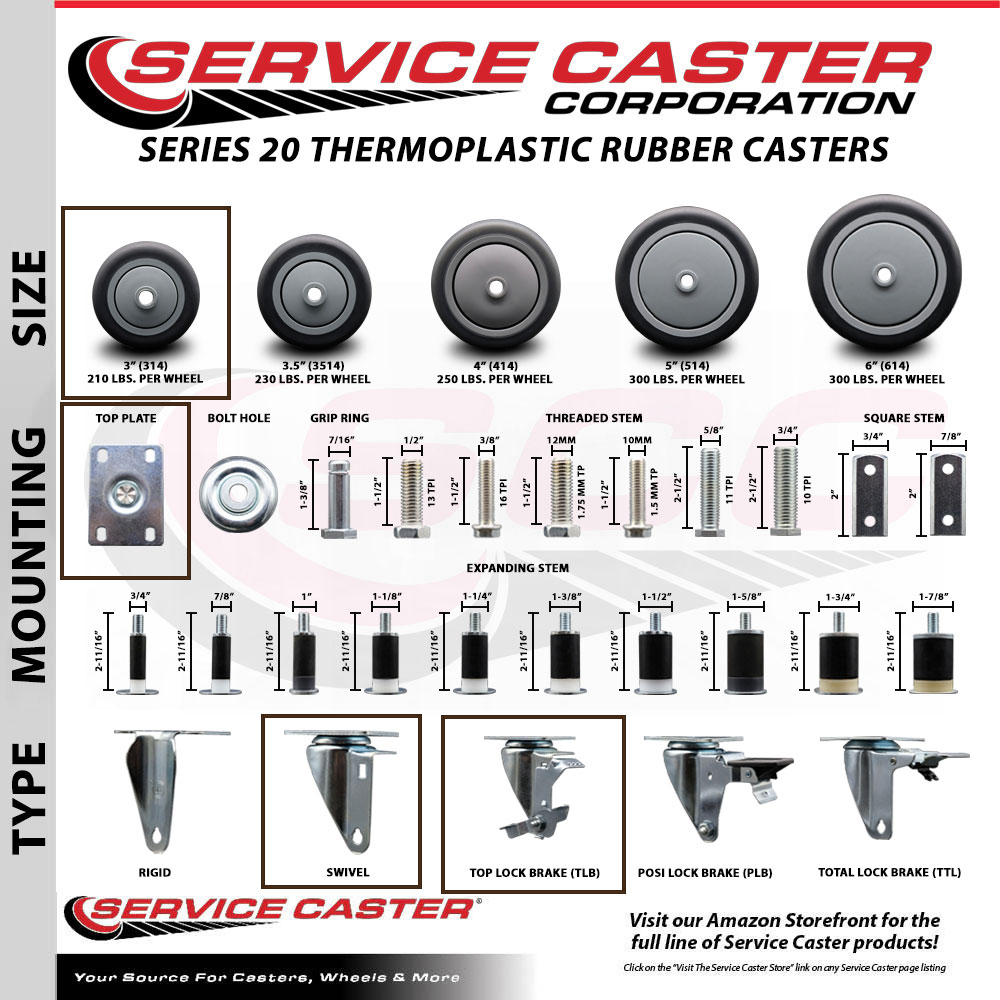

Listing is for one (1) Service Caster Series #20 swivel caster with a 3" diameter by 1-1/4" wide thermoplastic rubber wheel and a top locking brake capable of supporting 210 lbs./caster. Introducing Service Caster's replacement caster, a perfect alternative to the McMaster Carr caster 2835T14. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 thermoplastic rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the soft, quiet and non-marking thermoplastic rubber wheels perform especially well on hard surfaces such as concrete, tile, and wood. They are resistant to water, oil, and grease and will keep you safely moving forward. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. • Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5" & 6": 300 lbs Capacity/Caster • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. • HARDWARE NOT INCLUDED
