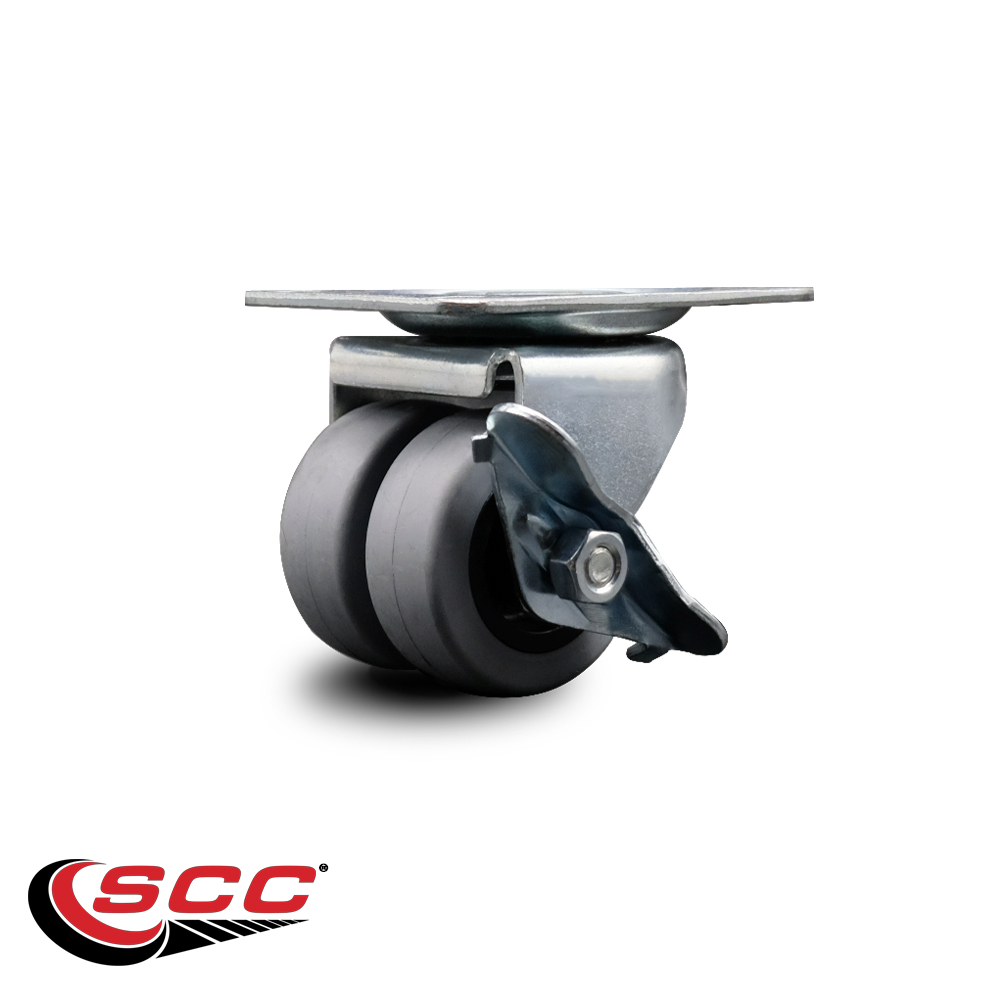

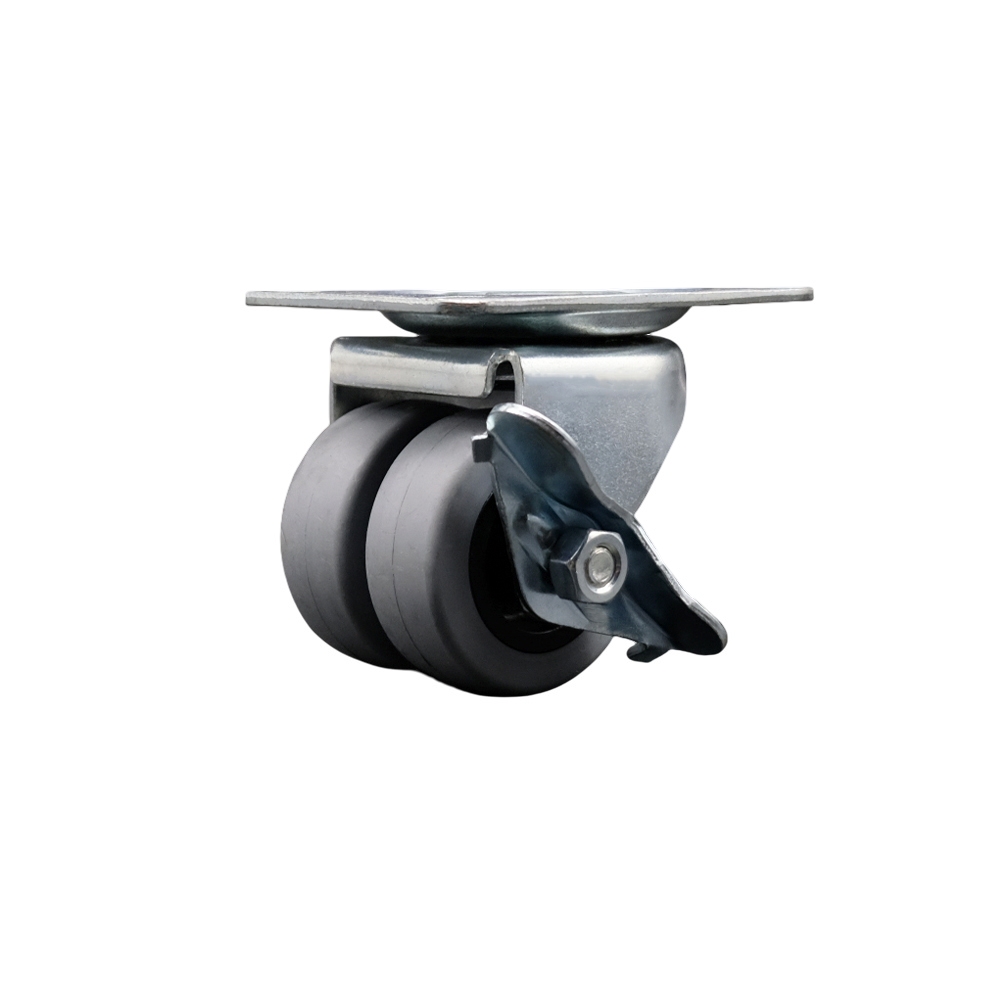

Service Caster Brand Replacement for McMaster Carr Caster 2390T6 - Swivel Top Plate Caster with 2 Inch Thermoplastic Rubber Dual Wheel and Side Lock Brake - 180 lbs. Capacity Per Caster

Details

Manufacturer

Service Caster

Model

Series #04

SKU

MCM-SCC-DW04S21316-TPRS-SLB

Condition

new

Quantity

1

UPC

734005225327

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

3 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-3/4" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

180

Color

Swivel - Side Lock Brake - Gray

Durometer

85A

Feature

Top lock brake

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

2-13/16"

Locking Type

Side lock brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

2-13/16"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

2390T6

Top Plate Size

2-5/8" x 3-3/4"

Type

(1) swivel caster w/top lock brake

Wheel Bearing

Plain Bore

Wheel Diameter

2

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber

Wheel Size

2" x 13/16"

Wheel Type

Thermoplastic Rubber

Description

Listing is for one (1) Service Caster Series #04 heavy duty low profile business machine top plate dual wheel swivel caster with brake. Features two (2) 2" diameter by 13/16" wide thermoplastic rubber wheels. Supports 180 pounds (lbs.) per caster. Introducing Service Caster's replacement caster, a perfect alternative to the McMaster Carr caster 2390T6. When searching for a reliable and durable solution for your business machine needs, consider Service Caster’s low profile casters. The Service Caster 04 series is ideal for copiers, business machines, vending machines, displays, computer storage devices, and electronics cabinets. The low profile design allows for an unlimited amount of uses where casters are a necessity without raising the unit further than necessary. Mounting options include top plate, grip ring, standard and metric threaded stem sizes. Also, the innovative expanding stem, that can easily adapt to the inside diameter of an opening, allowing for a secure fit in round or square tubes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Wheel: 2" - Thermoplastic Rubber • Weight Capacity: 180 lbs./caster • Top Plate Size: 2-5/8" x 3-3/4" • HARDWARE NOT INCLUDED
