Browse / Parts & Components / Service Caster Brand Replacement for McMaster Carr Caster 2390T5 - Swivel Top Plate Caster with 2 Inch Thermoplastic Rubber Dual Wheel - 180 lbs. Capacity Per Caster
Service Caster Brand Replacement for McMaster Carr Caster 2390T5 - Swivel Top Plate Caster with 2 Inch Thermoplastic Rubber Dual Wheel - 180 lbs. Capacity Per Caster
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #04
- SKU
- MCM-SCC-DW04S21316-TPRS
- Condition
- new
- Quantity
- 1
- UPC
- 734005225310
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 5 x 5 x 5 in
- Shipping weight
- 3 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications

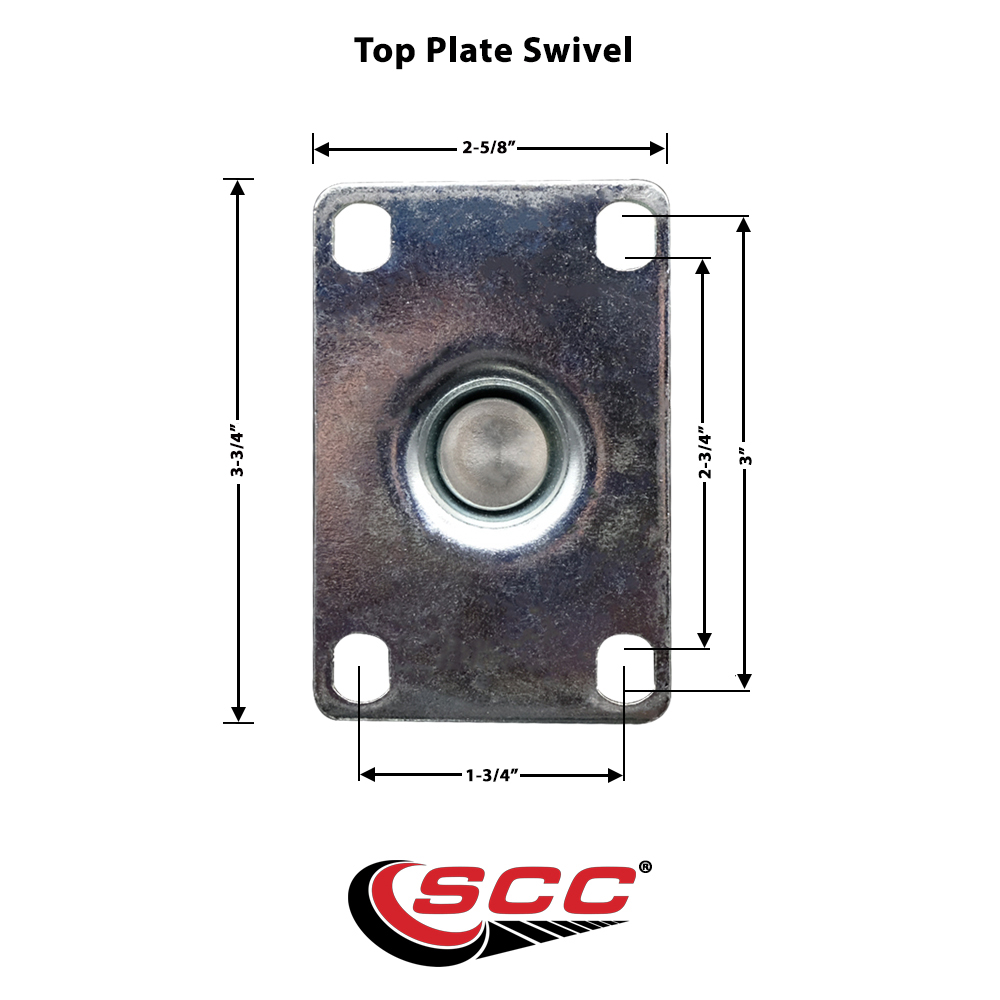

- Bolt Pattern
- 1-3/4" x 2-3/4" to 3"
- Bolt Size
- 5/16" (hardware not included)
- Capacity
- 180
- Color
- Swivel - No Brake - Gray
- Durometer
- 85A
- Heat Capacity
- -20 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 2-13/16"
- Lower Temperature
- -20
- Lower Temperature UofM
- F
- Material Type
- Thermoplastic Rubber
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 2-13/16"
- Mounting Type
- Top Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Plate
- Swivels
- Yes
- Size
- 2390T5
- Top Plate Size
- 2-5/8" x 3-3/4"
- Type
- (1) swivel caster
- Wheel Bearing
- Plain Bore
- Wheel Diameter
- 2
- Wheel Diameter UofM
- inches
- Wheel Material
- Thermoplastic Rubber
- Wheel Size
- 2" x 13/16"
- Wheel Type
- Thermoplastic Rubber
Description

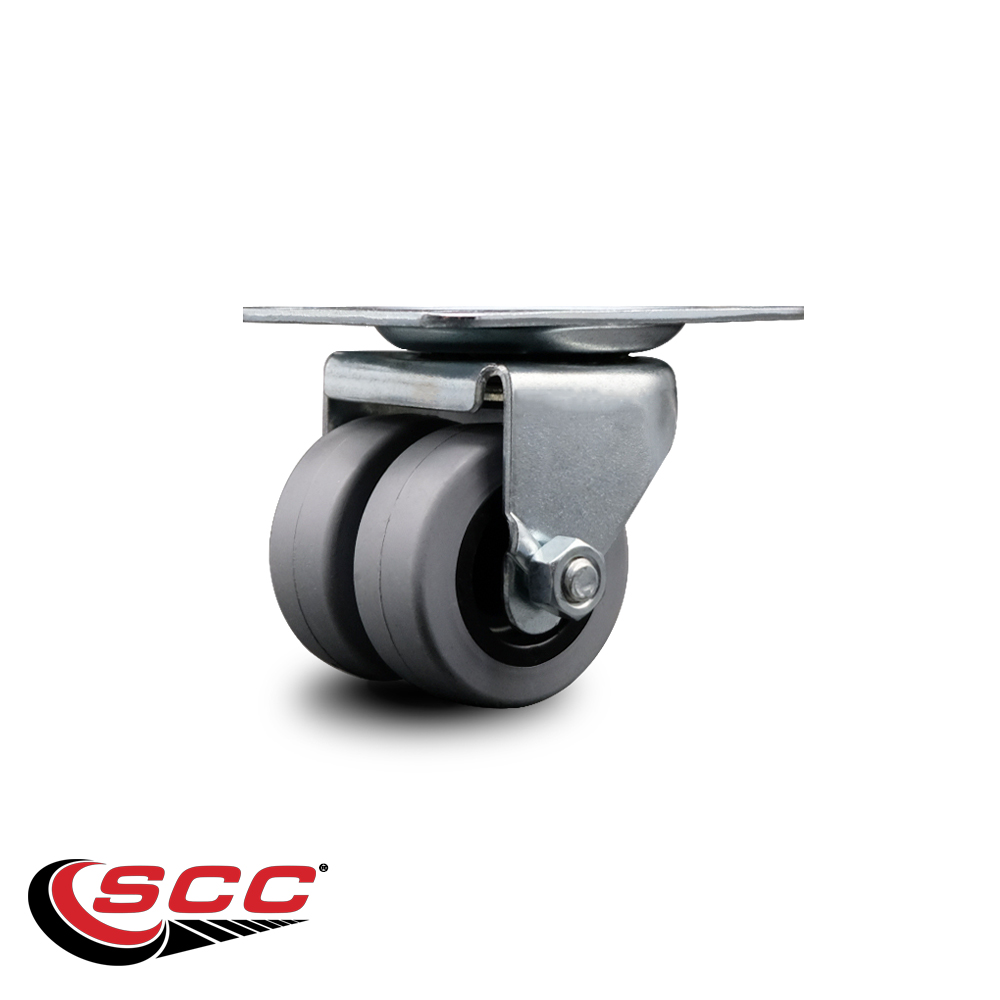

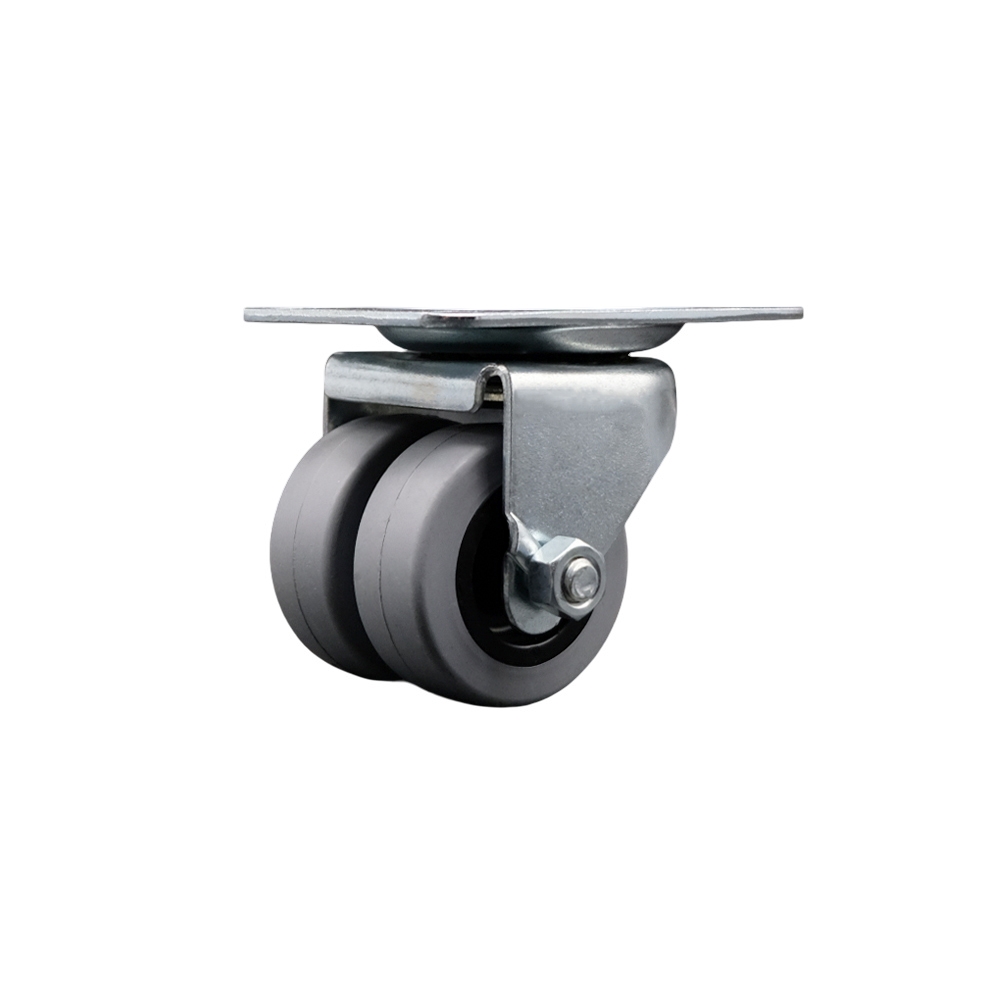

Listing is for one (1) Service Caster Series #04 heavy duty low profile business machine top plate dual wheel swivel caster. Features two (2) 2" diameter by 13/16" wide thermoplastic rubber wheels. Supports 180 pounds (lbs.) per caster. Introducing Service Caster's replacement caster, a perfect alternative to the McMaster Carr caster 2390T5. When searching for a reliable and durable solution for your business machine needs, consider Service Caster’s low profile casters. The Service Caster 04 series is ideal for copiers, business machines, vending machines, displays, computer storage devices, and electronics cabinets. The low profile design allows for an unlimited amount of uses where casters are a necessity without raising the unit further than necessary. Mounting options include top plate, grip ring, standard and metric threaded stem sizes. Also, the innovative expanding stem, that can easily adapt to the inside diameter of an opening, allowing for a secure fit in round or square tubes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Wheel: 2" - Thermoplastic Rubber • Weight Capacity: 180 lbs./caster • Top Plate Size: 2-5/8" x 3-3/4" • HARDWARE NOT INCLUDED
