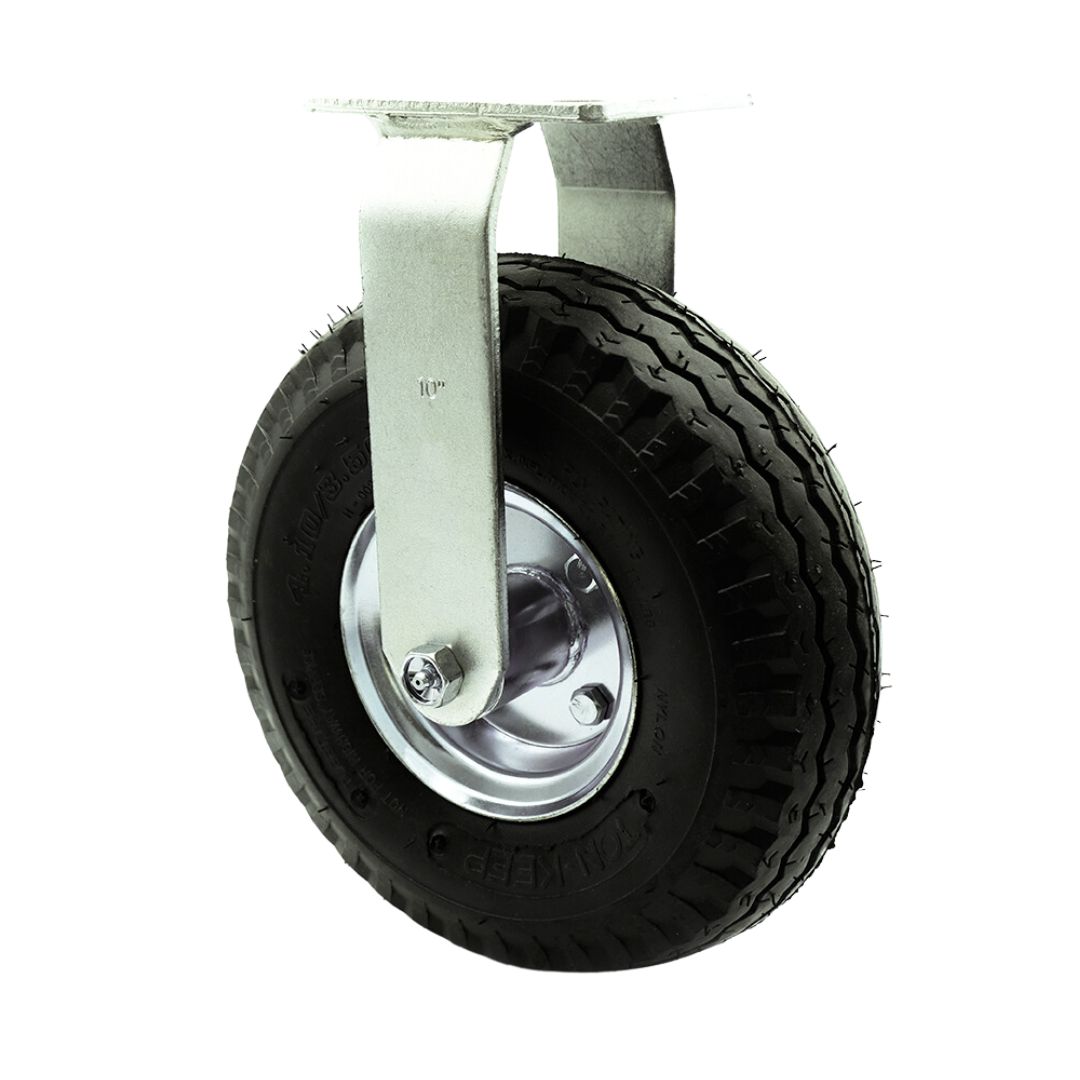

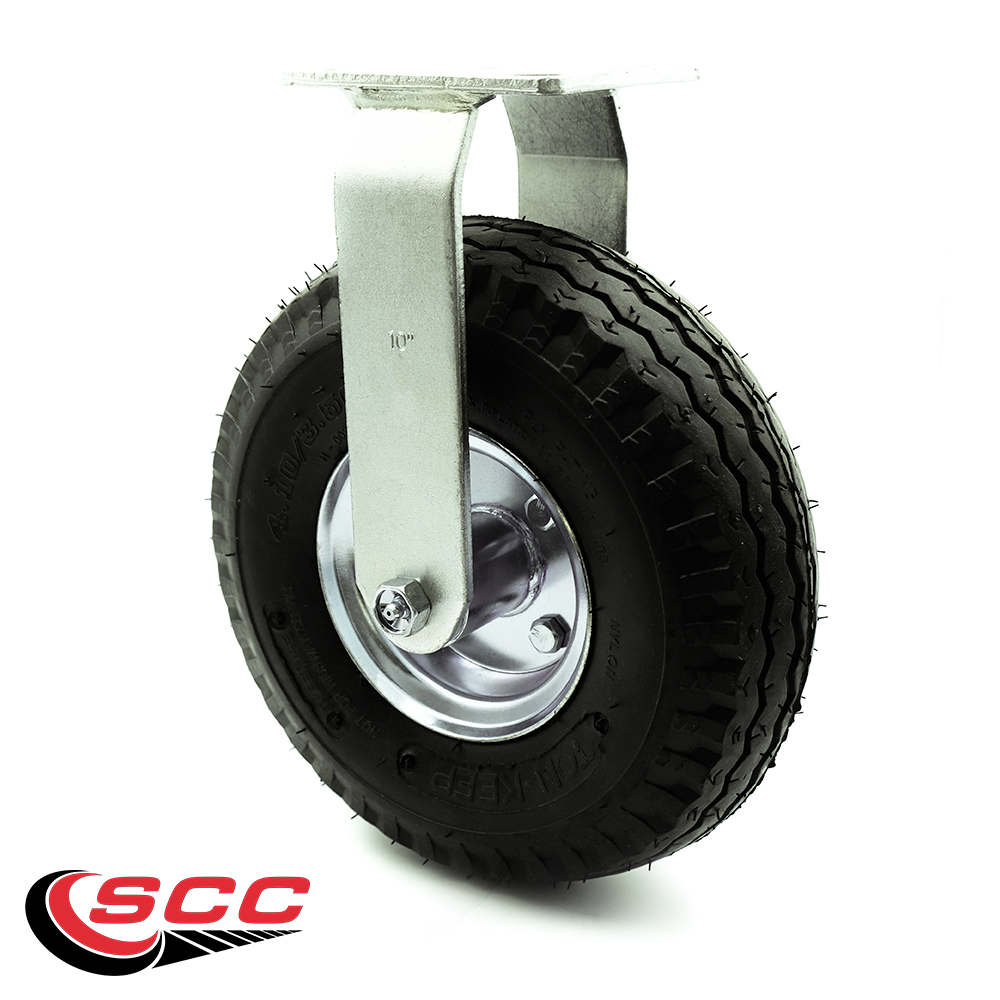

Service Caster Brand Replacement for McMaster Carr Caster 22925T82 - Rigid Top Plate Caster with 10 Inch Black Pneumatic Wheel - 350 lbs. Capacity Per Caster

Details

Manufacturer

Service Caster

Model

Series #100

SKU

MCM-SCC-100R3504-PNB

Condition

new

Quantity

1

UPC

734005415759

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 12 in

Shipping weight

11 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

350

Color

Rigid - No Brake - Black

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

12-3/16"

Material Type

Rubber

Mounting Height

12-3/16"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Size

22925T82

Top Plate Size

4" x 4-1/2"

Tread Width

3.5

Tread Width UofM

inches

Type

Rigid caster

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

10

Wheel Diameter UofM

inches

Wheel Material

Rubber tread on metal core

Wheel Size

10" x 3-1/2"

Wheel Type

Rubber tread on metal core

Description

Listing is for one (1) Service Caster Series #100 rigid caster with a 10” diameter by 3.5" wide black pneumatic rubber wheel. Supports up to 350lbs per caster. When searching for a reliable and durable solution to your McMaster Carr replacement caster needs, look no further than the Service Caster Series #100 casters. The universal design provides an excellent OEM and replacement part for luggage carts, food carts, or any application your business requires. With it’s zinc plated finish and pneumatic rubber wheels all rolling on finely crafted ball bearings, the Service Caster Series #100 provides enhanced noise reduction and consistent roll on any surface, for an overall superior ride under any condition. Note: this caster is NOT intended for highway use! Manual speed only. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • The Series 100 pneumatic casters come in 6” (mounting height 7.5”), 8” (mounting height 10”), 8” gray, 10” (mounting height 12.1875”) and 12” (mounting height 13.75”) and are made of pneumatic tread and an inner core filled with pressurized air which remains inflated even with the weight of a vehicle resting on it. • Weight capacity ranges from 200 lbs on the 6” caster, 300 lbs on the 8”, 350 lbs on the 10” and 450 lbs. on the 12”. • Top plate measures at 4" x 4 1/2" with a bolt hole pattern of 2.625" x 3.625" to 3" x 3" and can either be bolted or welded on. • HARDWARE NOT INCLUDED
