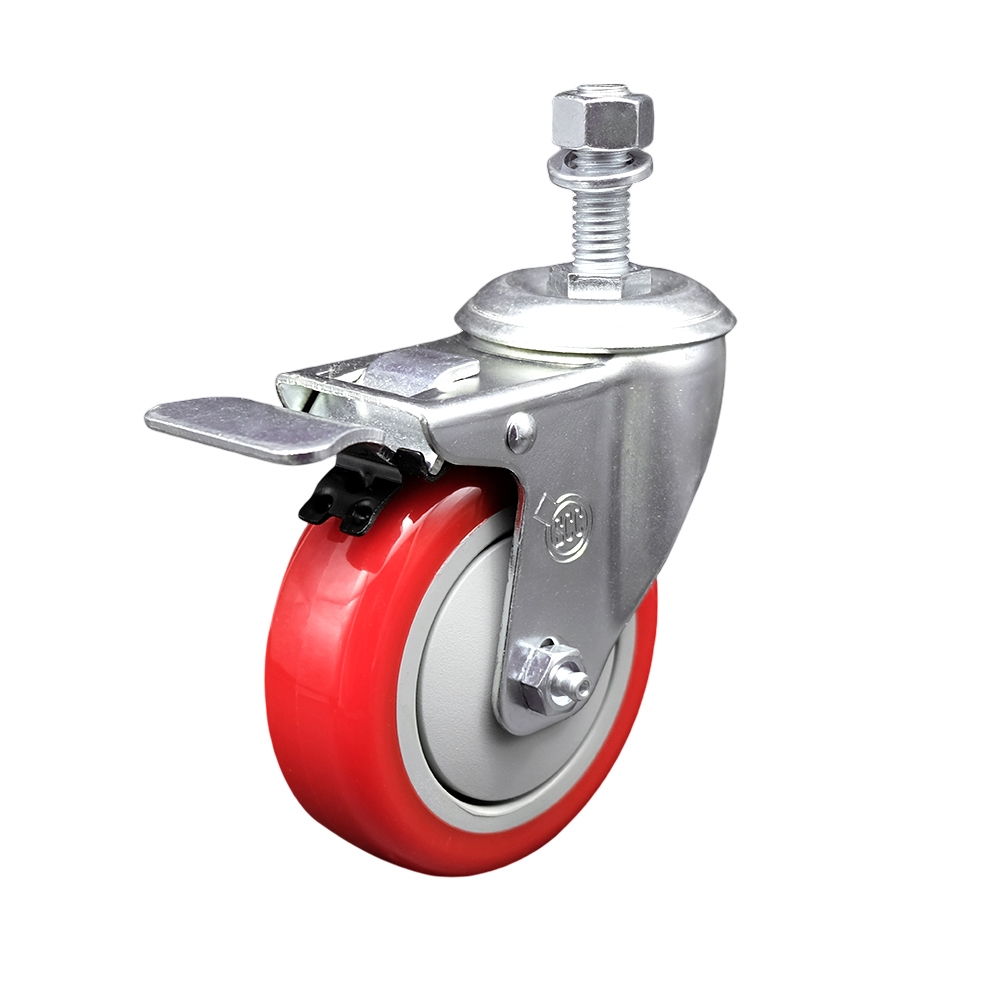

Service Caster Brand Replacement for Colson Caster 2.04254.95 MTG11 BRK5 - Polyurethane Swivel Threaded Stem Caster with 4" Red Wheel and 1/2" x 1" Stem & Total Locking Brake - 350 lbs Capacity/Caster

Details

Manufacturer

Service Caster

Model

Series #20

SKU

COL-SCC-TSTTL20S414-PPUB-RED-121310

Condition

new

Quantity

1

UPC

734005491944

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

6 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

350

Color

2.04254.95 MTG11 BRK5

Durometer

60D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

Total Lock Brake

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Threaded Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Red Wheel

Stem

1/2"-13 x 1" Threaded Stem

Stem Diameter

1/2"

Stem Length

1

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

1

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster w/total lock brake

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

4" x 1-1/4"

Wheel Type

Polyurethane Tread on Polyolefin Core

Description

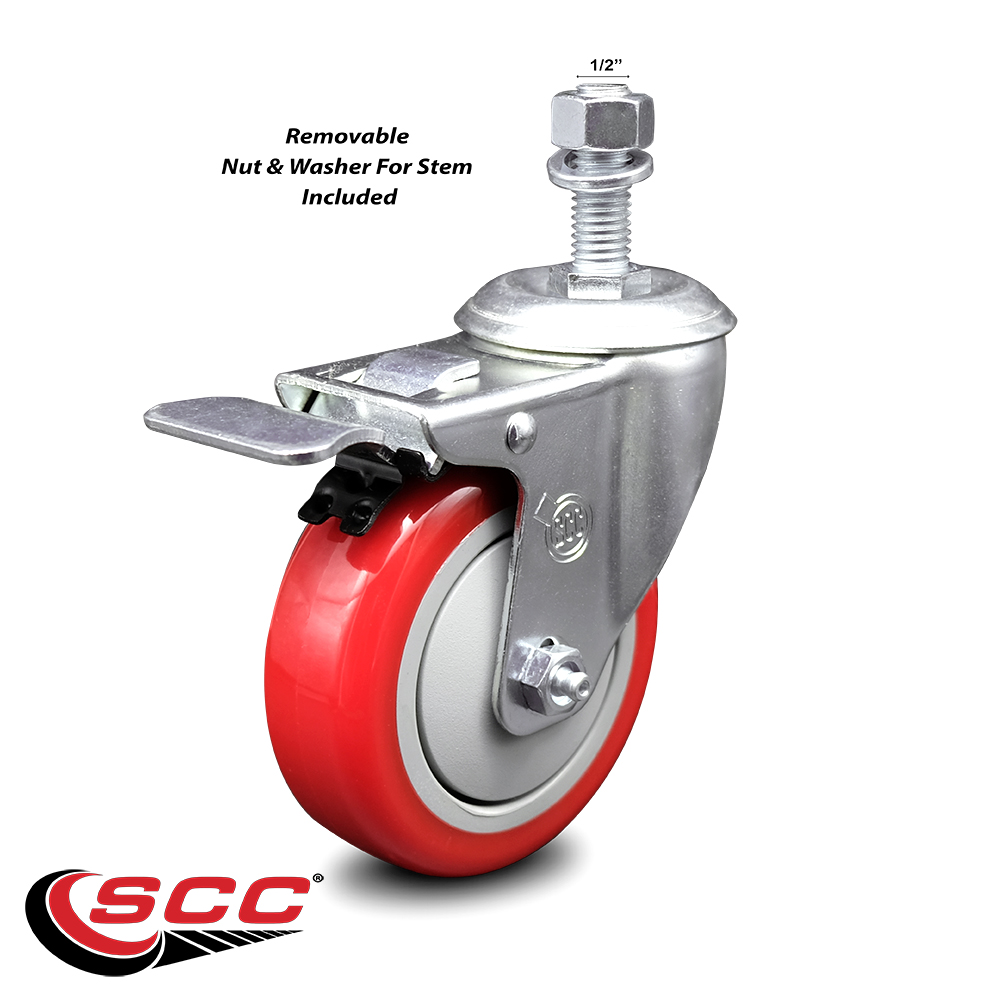

Listing is for one (1) Service Caster Series #20 swivel caster with a 4" diameter by 1-1/4" wide red polyurethane wheel and a 1/2" threaded stem with total lock brake capable of supporting 350 lbs./caster. Introducing Service Caster's replacement caster, a perfect alternative to the Colson caster 2.04254.95 MTG11 BRK5. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 threaded stem polyurethane casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The bolt hole can accept a bolt or a customized stem, allowing for any type of mounting requirement. The zinc plated finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood. All rolling on a finely crafted ball bearing design that will keep you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Service Caster Brand replacement for Colson caster 2.04254.95 MTG11 BRK5 • Service Caster Series #20 Polyurethane Weight Capacity: 4": 350 lbs Capacity/Caster • Threaded Stem Size: 1/2" diameter - 13 TPI x 1" length • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
