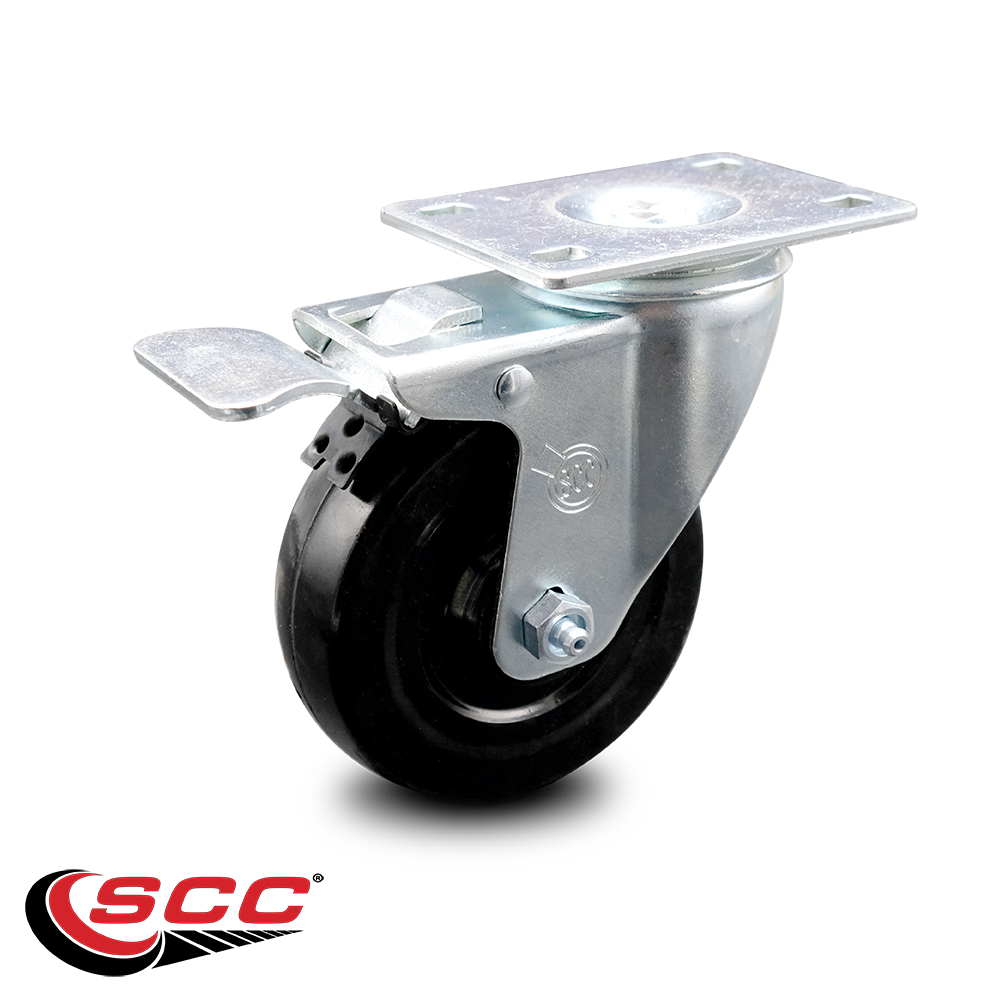

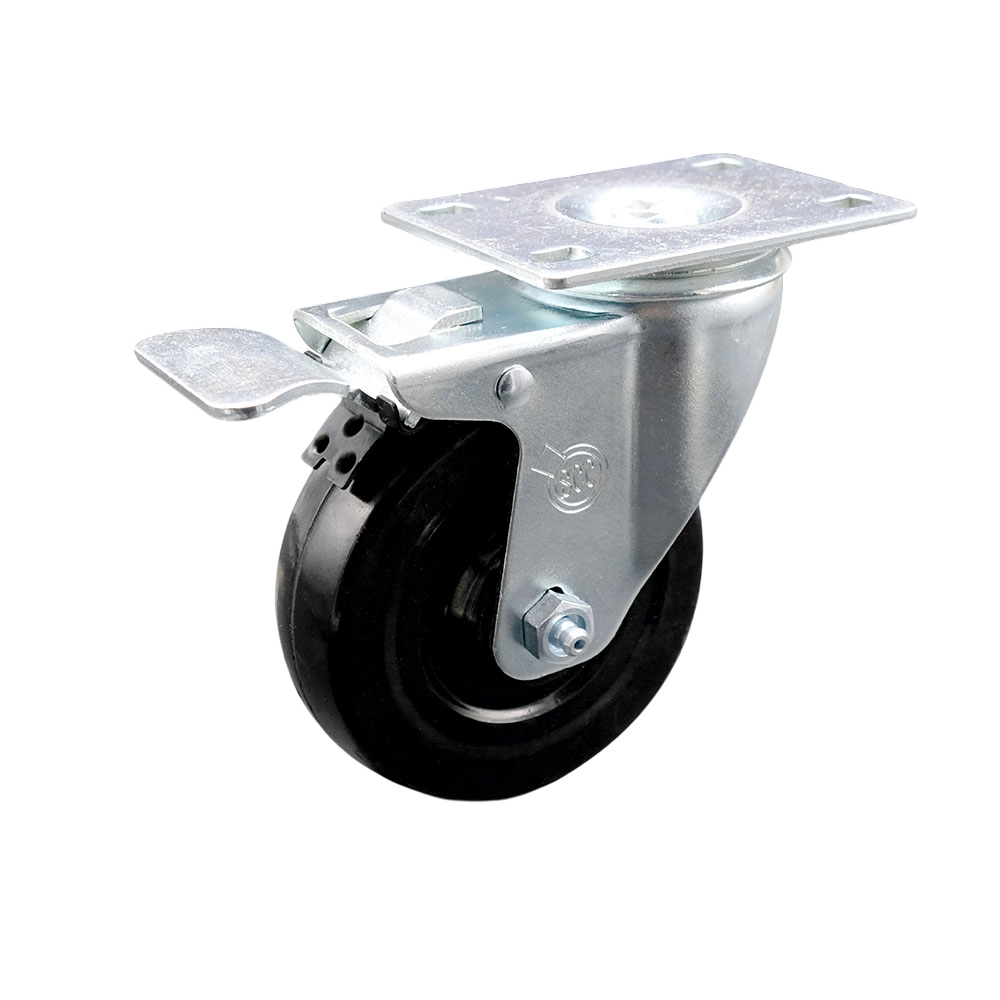

Service Caster Brand Replacement for Beta Well Done Caster - Swivel Top Plate Caster with 4 Inch Hard Rubber Wheel and Total Lock Brake - Fits Beta Well Done Folding Tool Trollies 027000201 027000202

Details

Manufacturer

Service Caster

Model

Series #20

SKU

BET-SCC-TTL20S414-HRS

Condition

new

Quantity

1

UPC

734005415834

Harmonized code

8302.20.0000

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

300

Color

Swivel - Total Lock Brake - Black

Durometer

55D

Feature

Total lock brake

Heat Capacity

-40 degrees F to 160 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

Total lock brake

Lower Temperature

-40

Lower Temperature UofM

F

Material Type

Hard Rubber

Maximum Temperature

160

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Wheel

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster w/total lock brake

Wheel Bearing

Plain Bore

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Hard Rubber

Wheel Size

4" x 1-1/4"

Wheel Type

Hard Rubber

Description

Listing is for one (1) Service Caster Series #20 swivel caster with a 4" diameter by 1-1/4" wide hard rubber wheel and a total lock brake capable of supporting 300lbs./caster. When searching for a reliable and durable solution to your Beta Well Done replacement caster needs, consider Service Caster’s Series 20 hard rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The hard rubber wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Caster for Beta Well Done Caster • Weight Capacity: 300 lbs. • Compatible with Beta Well Done Folding Tool Trollies: 027000201, 027000202, 027000203, RAL 2011, RAL 7016, and RAL 3000 • HARDWARE NOT INCLUDED
