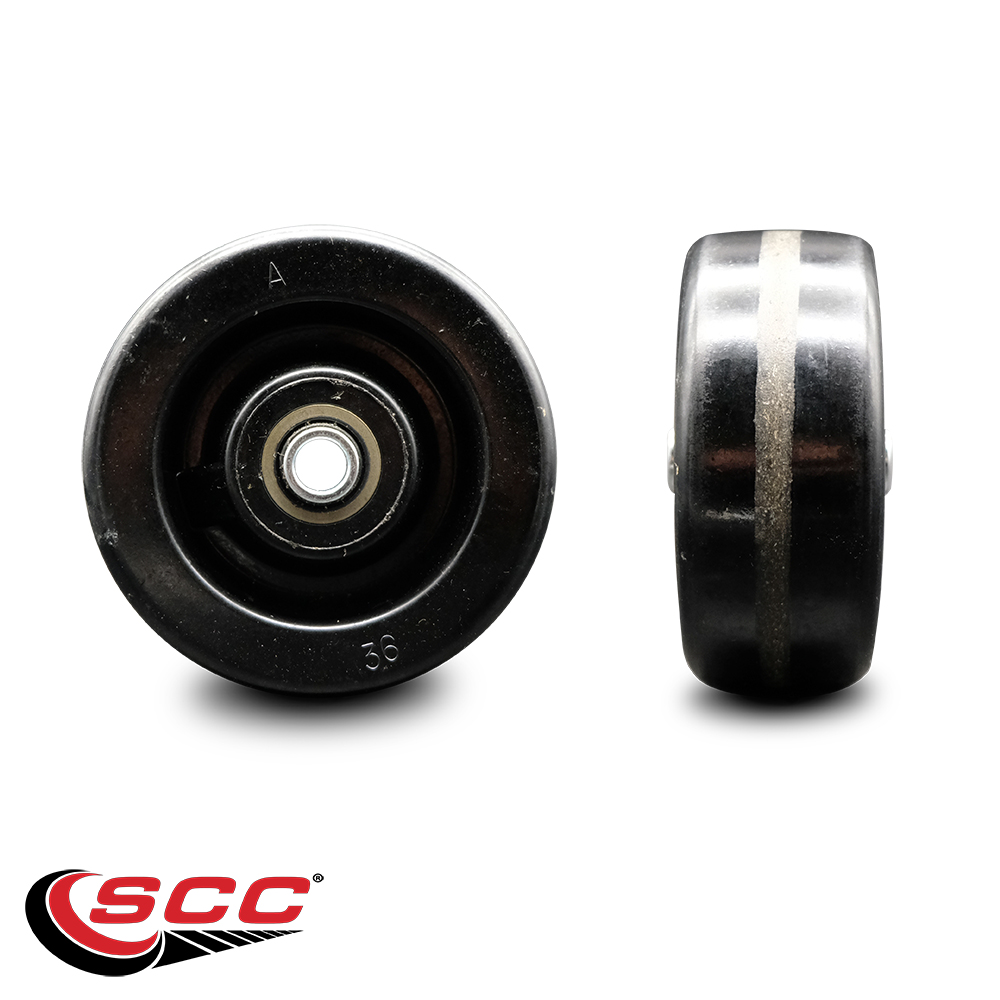

Service Caster Brand Replacement for Bassick Wheel WS8205 – 5 Inch Black Phenolic Wheel with Sealed Retainers – 1,000 lbs. Capacity Per Wheel

Details

Manufacturer

Service Caster

SKU

BAS-SCC-PHR520-NS

Condition

new

Quantity

1

UPC

734005059649

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

6 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bore Diameter

0.5

Bore Diameter UofM

inches

Bore Size

0.5

Capacity

1000

Color

5" Wheel - Black

Durometer

90D

Heat Capacity

-50 degrees F to 250 degrees F

Item Weight Unit of Measure

pounds

Lower Temperature

-50

Lower Temperature UofM

F

Maximum Temperature

250

Maximum Temperature UofM

F

Size

5" Wheel

Tread Width

2

Tread Width UofM

inches

Wheel Bearing

Roller Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Phenolic

Wheel Size

5" x 2"

Wheel Type

Phenolic

Description

High quality replacement wheel for a Bassick Casters WS8205. Listing is for one (1) Service Caster 5 inch diameter by 2 inch wide phenolic wheel with sealed retainers and roller bearing. Supports 1,000 pounds (lbs.) per wheel. When searching for a reliable and durable solution to your caster needs, rely on Service Caster Series 30 top plate phenolic wheel casters. The Service Caster Series #30 is ideal for medium and heavy duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • This wheel has a 1/2" axle bore and a 2-7/16" hub length. If the spanner bushing is removed, it can be used on a 3/4" shaft. This wheel can also be assembled to accept a 5/8" shaft. If this is required, please message us with your order number requesting a 5/8" bore. The hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing. • Phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. These easy rolling wheels are quieter than comparable steel wheels. Phenolic resin wheels feature a resistance to water, oil, and grease. Being non-metallic, these resin wheels are also spark proof. With so many great features, Service Caster’s Phenolic resin wheels will keep Moving You Forward. • Weight Capacity: 1000 lbs. • High Quality Replacement Wheel For Bassick Casters WS8205
