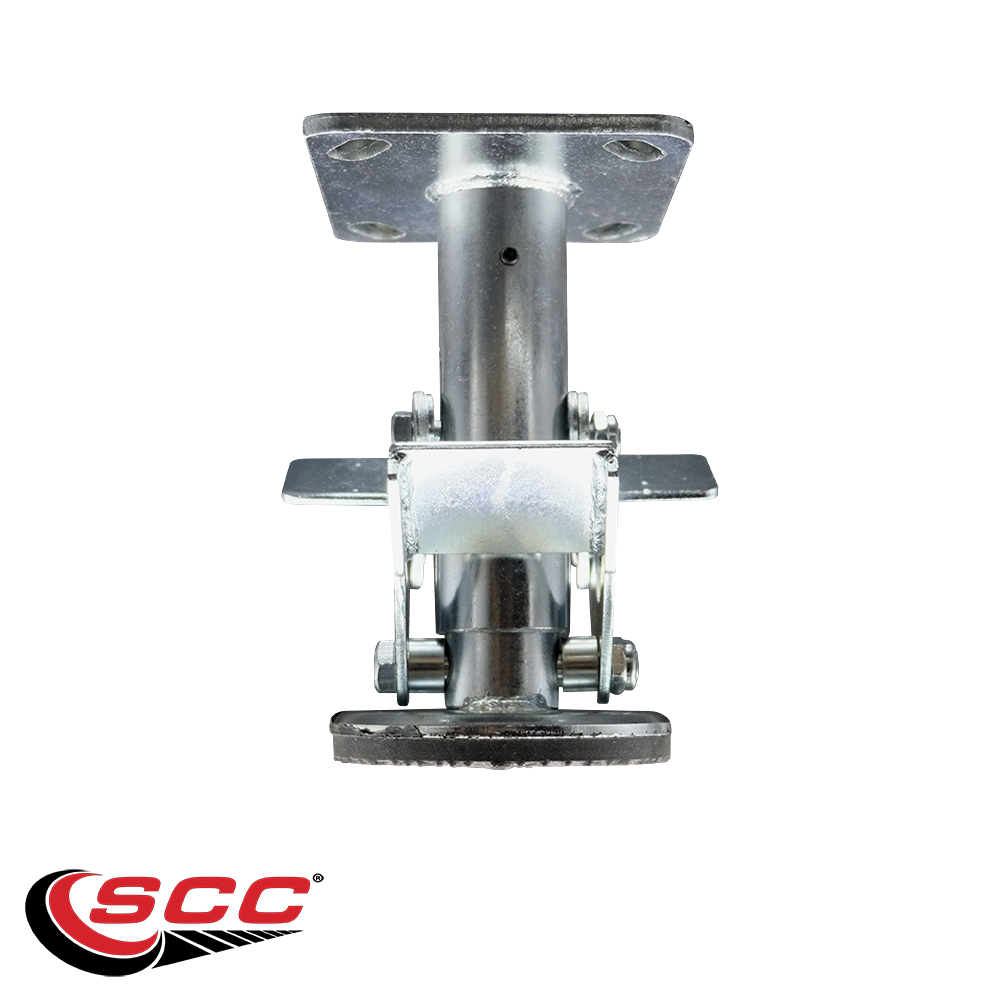

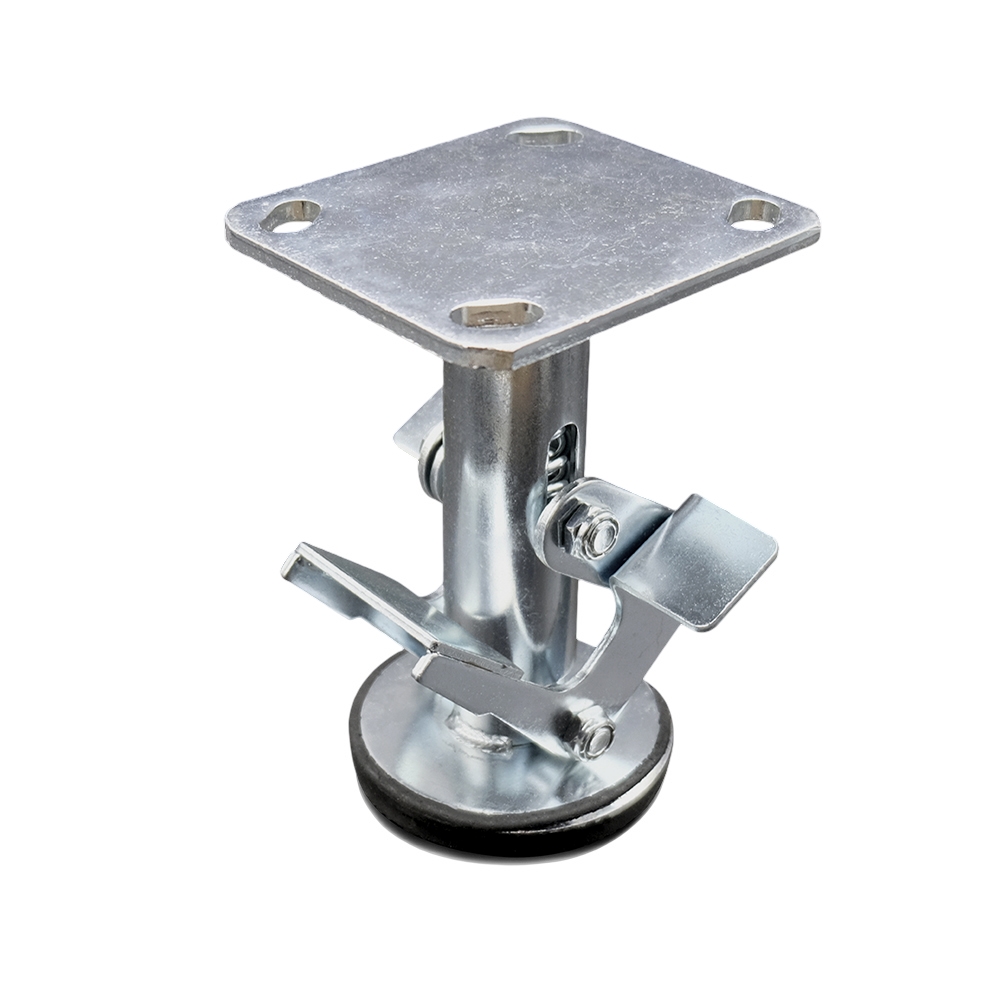

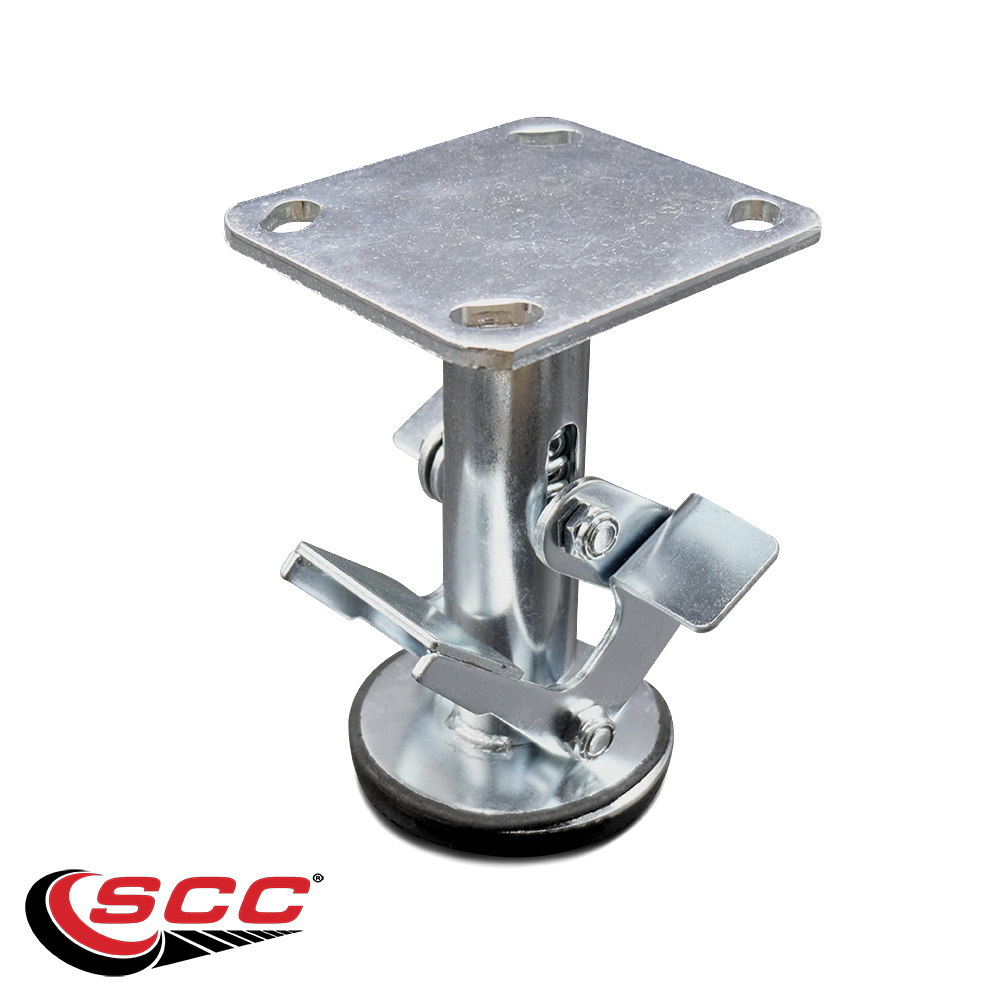

Service Caster Brand Replacement Floor Lock for McMaster Carr Floor Lock 2728T24 - 6 Inch Double Pedal Floor Lock with Top Plate

Details

Manufacturer

Service Caster

Model

Zinc Plated

SKU

MCM-SCC-FL600DP

Condition

new

Quantity

1

UPC

734005547016

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

6 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

2-5/8" x 3-5/8" to 3" x 3"

Bolt Size

3/8" (hardware not included)

Color

Double Pedal - Non Stainless

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/2"

Material Type

Zinc

Mounting Height

6-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Size

2728T24

Top Plate Size

4" x 4-1/2"

Description

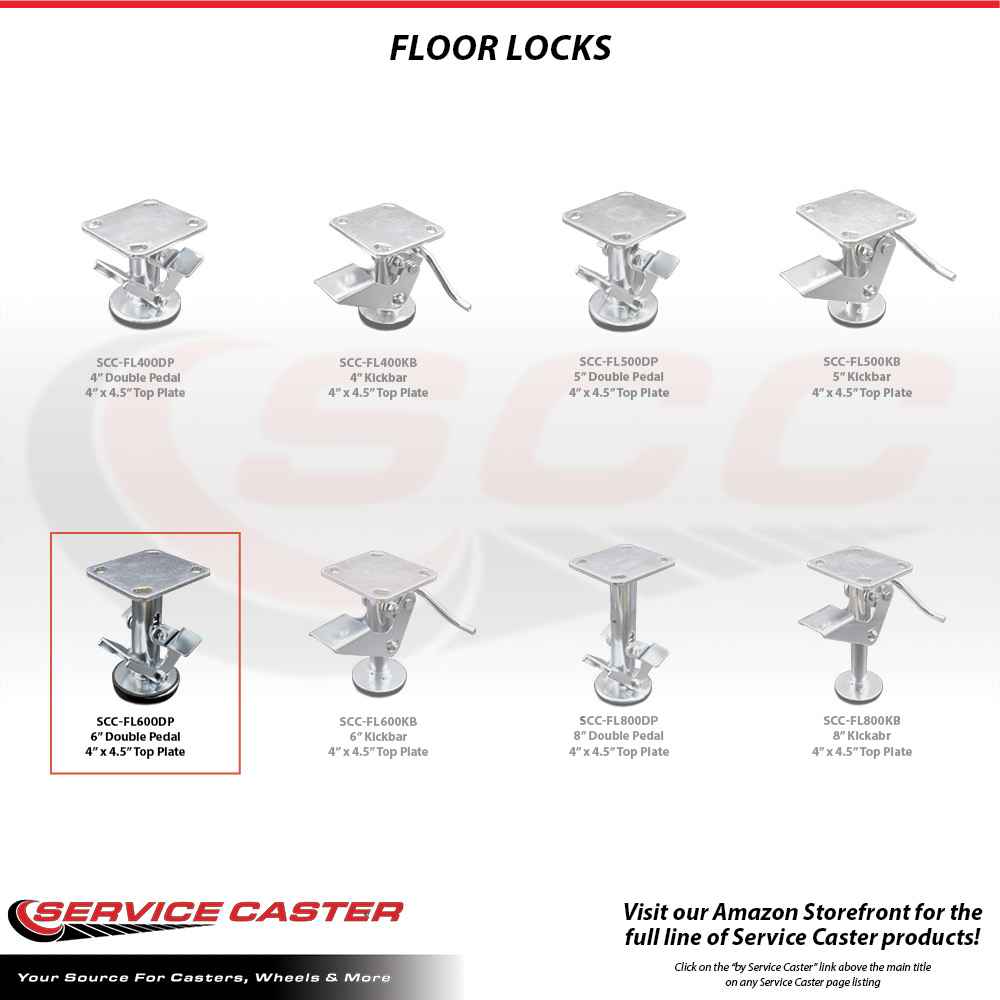

High quality replacement floor lock for McMaster Carr floor lock 2728T24. Listing is for one (1) Service Caster 6" double pedal floor truck lock. When searching for a reliable and durable solution to your McMaster Carr replacement floor lock needs, rely on Service Caster's floor locks. Floor Locks manufactured by Service Caster are designed to prohibit the movement of castered equipment. Use floor truck locks on dollies, carts, and manual powered trucks. This product is not intended to be used as a jack and should only be used on level surfaces. • These Service Caster Floor Truck Locks come in various sizes for use with standard profile casters: 4”: 4-5/8” retracted/5-7/8” extended mounting height; 5”: 5-1/2” retracted/6-3/4” extended mounting height; 6”: 6-1/2” retracted/7-3/4” extended mounting height; 8”: 8-1/2” retracted/9-3/4” extended mounting height. • Service Caster Floor Truck Locks feature durable construction, zinc plated finish, and rubberized non-slip foot. • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • HARDWARE NOT INCLUDED
