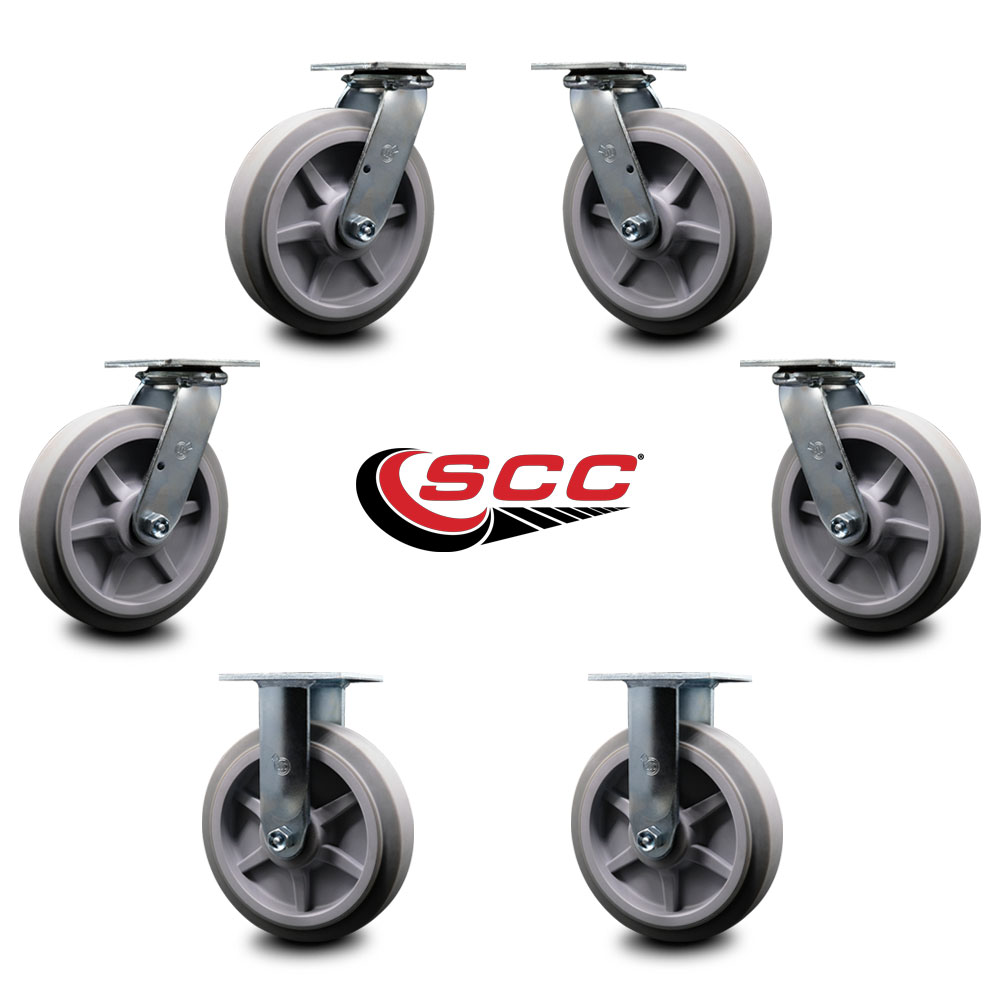

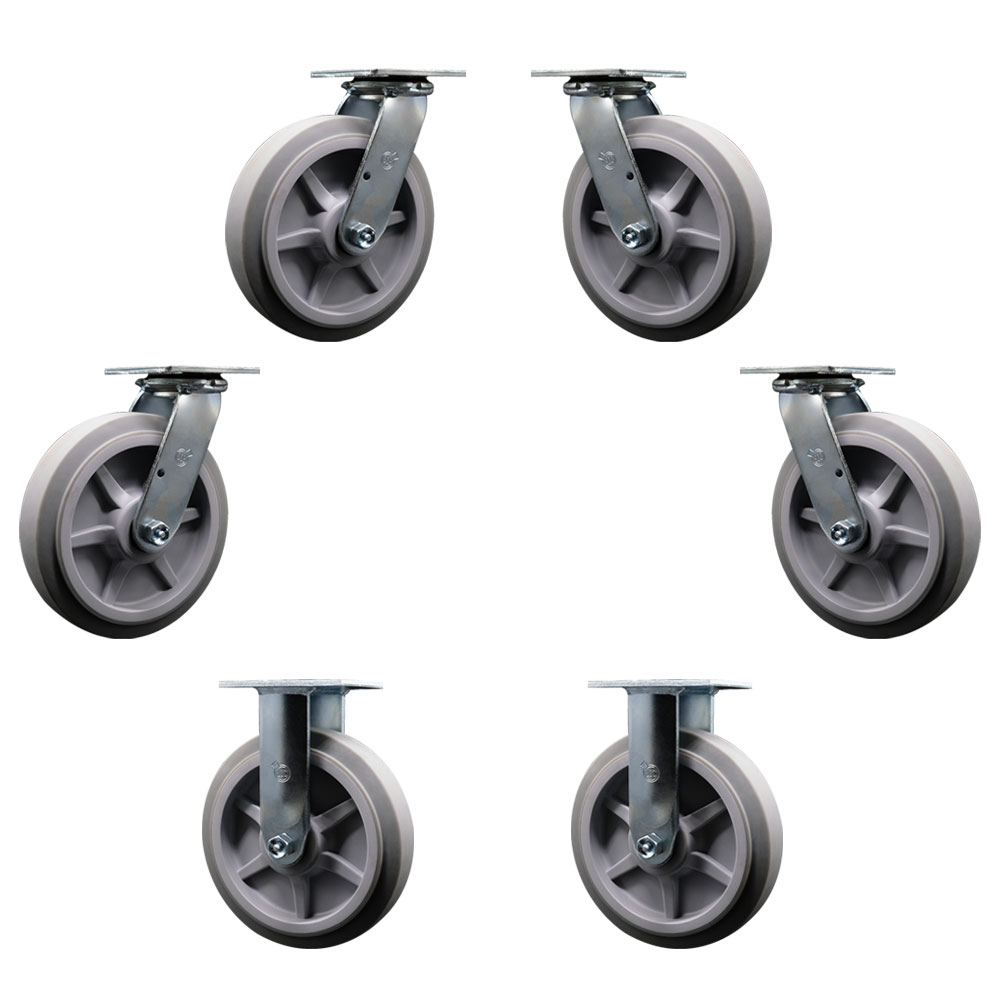

Service Caster Brand Replacement Caster Set for Magliner U Boat Casters 130076 130075 – Thermoplastic Rubber Flat Tread Swivel Top Plate Caster Set of 6 –8" x 2" Gray Wheels-Includes 4 Swivel &2 Rigid

Details

Manufacturer

Service Caster

Model

Series #30

SKU

MAG-SCC-30CS820-TPRRF-4-R-2

Condition

new

Quantity

6

UPC

734005229332

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

48 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

3600

Color

130076 130075

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

9-1/2"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber Flat Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

9-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

U-Boat

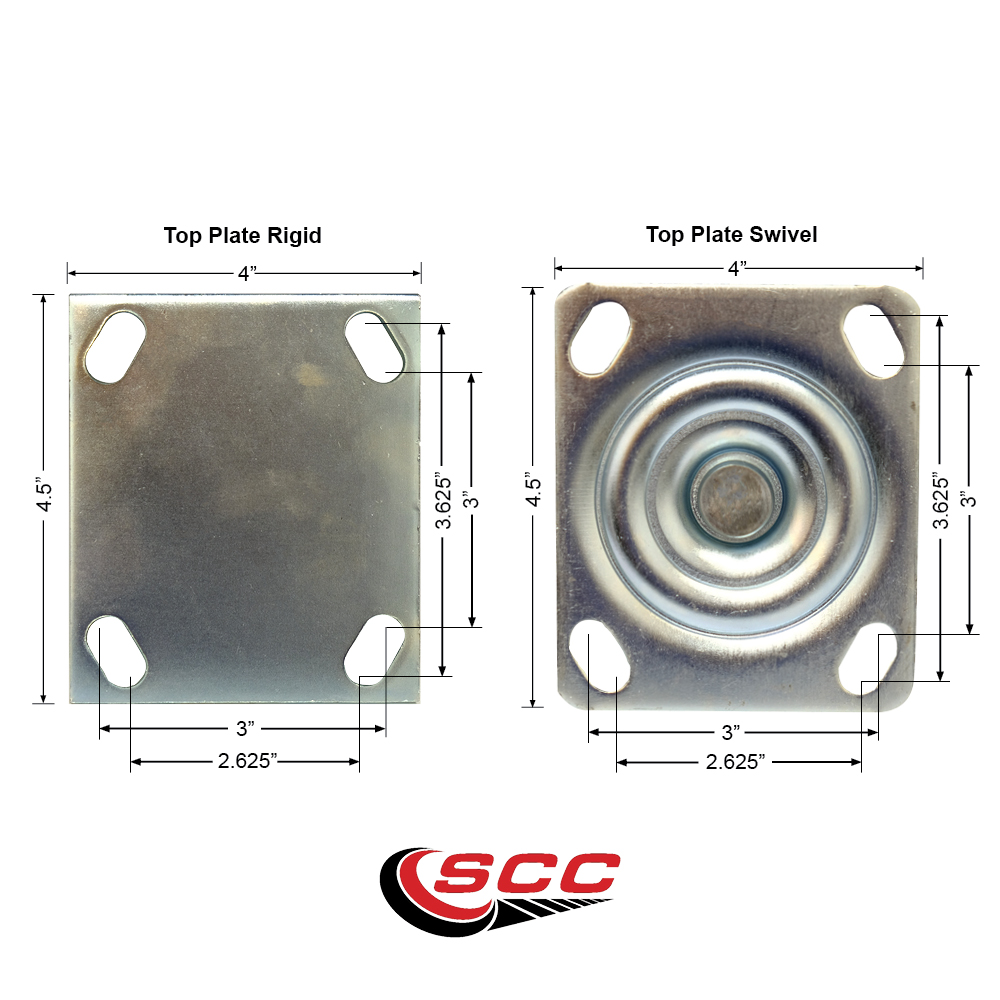

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(4) swivel casters & (2) rigid casters

Wheel Bearing

Roller Bearing

Wheel Diameter

8

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Flat Tread on Polyolefin Core

Wheel Size

8" x 2"

Wheel Type

Thermoplastic Rubber Flat Tread on Polyolefin Core

Description

When searching for a reliable and durable solution for your Magliner U-Boat replacement needs, consider Service Caster’s Series 30 top plate thermoplastic rubber flat tread on polyolefin core casters. The soft flat tread is made of thermoplastic rubber that is non-marking and non-marring, and on the polyolefin core provides a long lasting, high capacity wheel that is capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these Service Caster high performance Magliner replacement casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. These versatile casters are ideal for a wide range of applications, but are commonly used on Magliner Industrial U-Boats: BDHK182-BDHA182, BDHK282-BDHA282, BDHK182A-BDHA182A and BDHK282A-BDHA282A . Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. Service Caster • Replacement Caster Set for Magliner Casters: 130076 and 130075 • Weight Capacity: 3,600 lbs • Compatible with Magliner U-Boat Models: BDHK182-BDHA182, BDHK282-BDHA282, BDHK182A-BDHA182A, BDHK282A-BDHA282A, PTK2436T1, PTK2448T1, PTK3060S1, PTK3672T1, PTK3060T1, PTK3048T1, PTK3672S1 and PTK2448S2 • HARDWARE NOT INCLUDED
