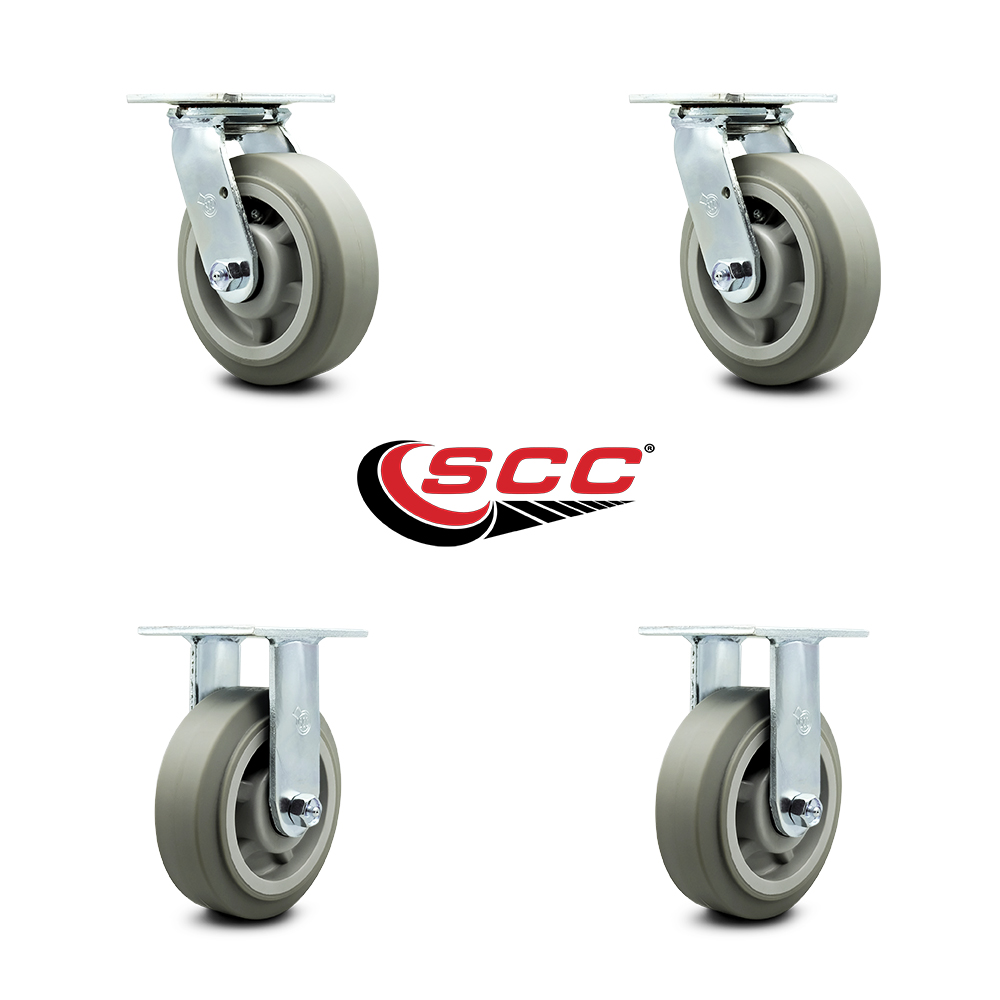

Service Caster Brand Replacement Caster Set for Magliner Platform Truck and U-Boats - Thermoplastic Rubber Swivel Top Plate Caster Set w/6" x 2" Gray Wheel -Includes 2 Swivel Casters & 2 Rigid Casters

Details

Manufacturer

Service Caster

Model

Series #30

SKU

MAG-SCC-30CS620-TPRRF-2-R-2

Condition

new

Quantity

4

UPC

734005229264

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

22 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

2000

Color

130066 130067 - 4 pcs

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber Flat Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

Platform Truck and U-Boat

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) swivel casters & (2) rigid casters

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Flat Tread on Polyolefin Core

Wheel Size

6" x 2"

Wheel Type

Thermoplastic Rubber Flat Tread on Polyolefin Core

Description

When searching for a reliable and durable solution for your Magliner Platform Truck and U-Boat replacement needs, consider Service Caster’s Series 30 top plate thermoplastic rubber flat tread on polyolefin core casters. The soft flat tread is made of thermoplastic rubber that is non-marking and non-marring, and on the polyolefin core provides a long lasting, high capacity wheel that is capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these Service Caster high performance Magliner replacement casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. These versatile casters are ideal for a wide range of applications, but are commonly used on Magliner Platform Trucks and U-Boats: BDHK162-BDHA162, BDHK262-BDHA262, BDHK162A-BDHA162A, BDHK262A-BDHA262A, PTK2436T1, PTK2448T1, PTK3060S1, PTK3672T1, PTK3060T1, PTK3048T1, PTK3672S1 and PTK2448S1 . Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. Service Caster • Replacement Caster Set for Magliner Platform Trucks and U-Boats • Weight Capacity: 2,000 lbs • Compatible with Magliner Platform Truck and U-Boat Models: BDHK162-BDHA162, BDHK262-BDHA262, BDHK162A-BDHA162A, BDHK262A-BDHA262A, PTK2436T1, PTK2448T1, PTK3060S1, PTK3672T1, PTK3060T1, PTK3048T1, PTK3672S1 and PTK2448S1 • HARDWARE NOT INCLUDED
