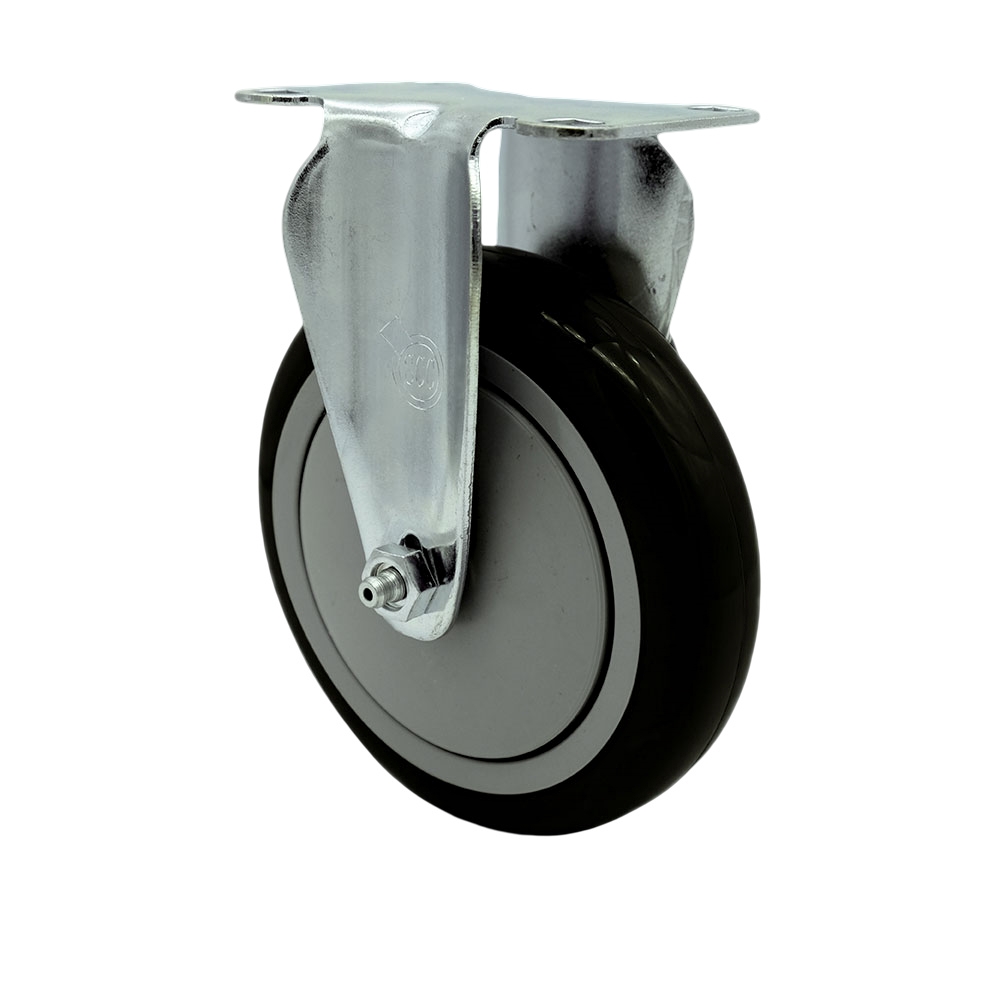

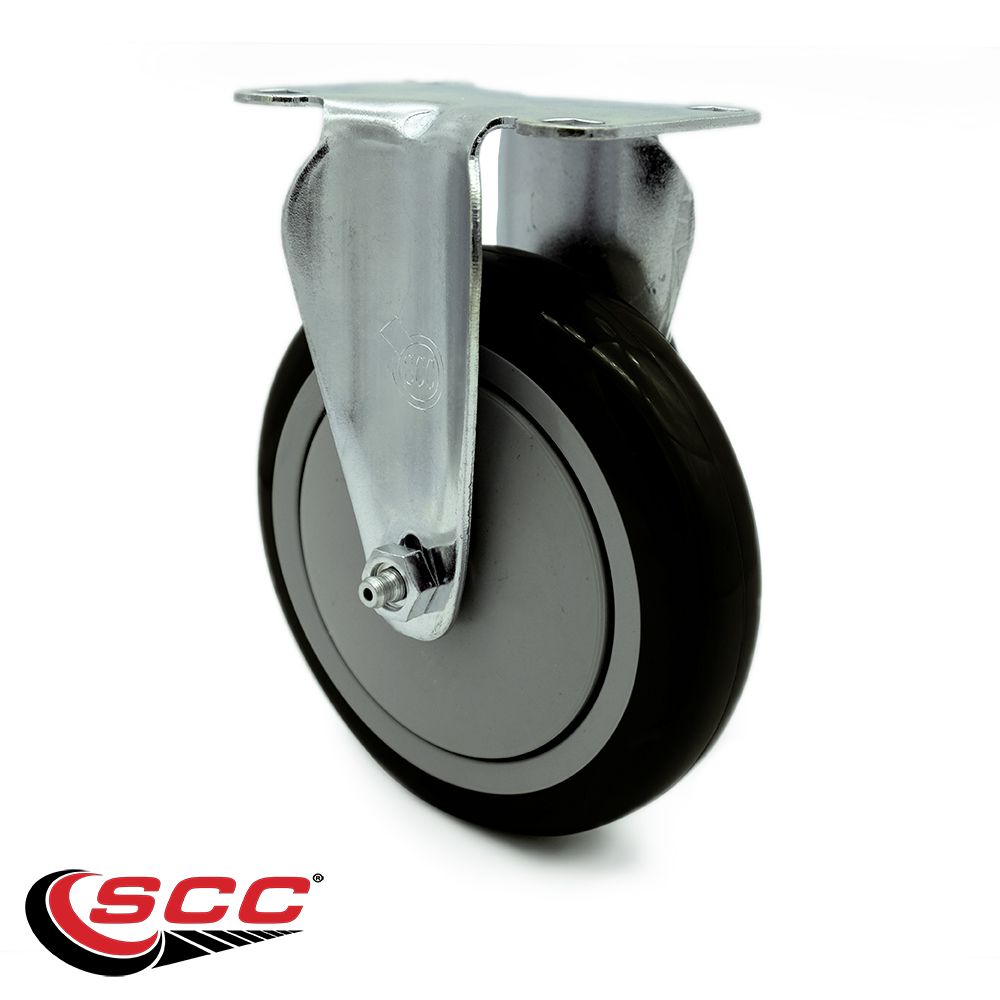

Service Caster Brand Replacement Caster for Uline Caster H-5540R-Rigid Top Plate Caster with 5 Inch Black Polyurethane Wheel-Light Duty Replacement Caster-Fits Carts, Dollies and Poly Box Truck H-3840

Details

Manufacturer

Service Caster

Model

Series #20

SKU

ULI-SCC-20R514-PPUB-BLK

Condition

new

Quantity

1

UPC

734005481433

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

3 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

1-3/4" x 2-7/8" to 3"

Bolt Size

5/16" (hardware not included)

Capacity

350

Color

H-5540R

Durometer

60D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Size

5" Black Wheel

Top Plate Size

2-1/2" x 3-5/8"

Tread Width

1.25

Tread Width UofM

inches

Type

Rigid caster

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane tread on polyolefin core

Wheel Size

5" x 1-1/4"

Wheel Type

Polyurethane tread on polyolefin core

Description

Listing is for one (1) Service Caster Series #20 rigid caster with a 5" diameter by 1-1/4" wide black polyurethane wheel capable of supporting 350lbs./caster. Introducing Service Caster's replacement caster, a perfect alternative to the Uline caster H-5540R. When searching for a reliable and durable solution to your caster needs, look no further than the Service Caster Series 20 top plate polyurethane casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood- rolling on a finely crafted ball bearing design that keeps you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Caster for Uline Caster: H-5540R • Weight Capacity: 350 lbs. • Compatible with Uline Carts, Dollies and Poly Box Trucks H-3840 • HARDWARE NOT INCLUDED
