Service Caster Brand Replacement Caster for Uline Caster H-5539R-Rigid Top Plate Caster with 4 Inch Red Polyurethane Wheel-Light Duty Replacement Caster- Fits Carts, Dollies and Poly Box Trucks H-1956
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- ULI-SCC-20R414-PPUB-RED
- Condition
- new
- Quantity
- 1
- UPC
- 734005481228
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 8 x 8 x 8 in
- Shipping weight
- 3 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Pattern
- 1-3/4" x 2-7/8" to 3"
- Bolt Size
- 5/16" (hardware not included)
- Capacity
- 350
- Color
- H-5539R
- Durometer
- 60D
- Heat Capacity
- -20 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 5-1/8"
- Lower Temperature
- -20
- Lower Temperature UofM
- F
- Material Type
- Polyurethane Tread on Polyolefin Core
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 5-1/8"
- Mounting Type
- Top Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Plate
- Size
- 4" Red Wheel
- Top Plate Size
- 2-1/2" x 3-5/8"
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- Rigid caster
- Wheel Bearing
- Precision Ball Bearing
- Wheel Diameter
- 4
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyurethane tread on polyolefin core
- Wheel Size
- 4" x 1-1/4"
- Wheel Type
- Polyurethane tread on polyolefin core
Description

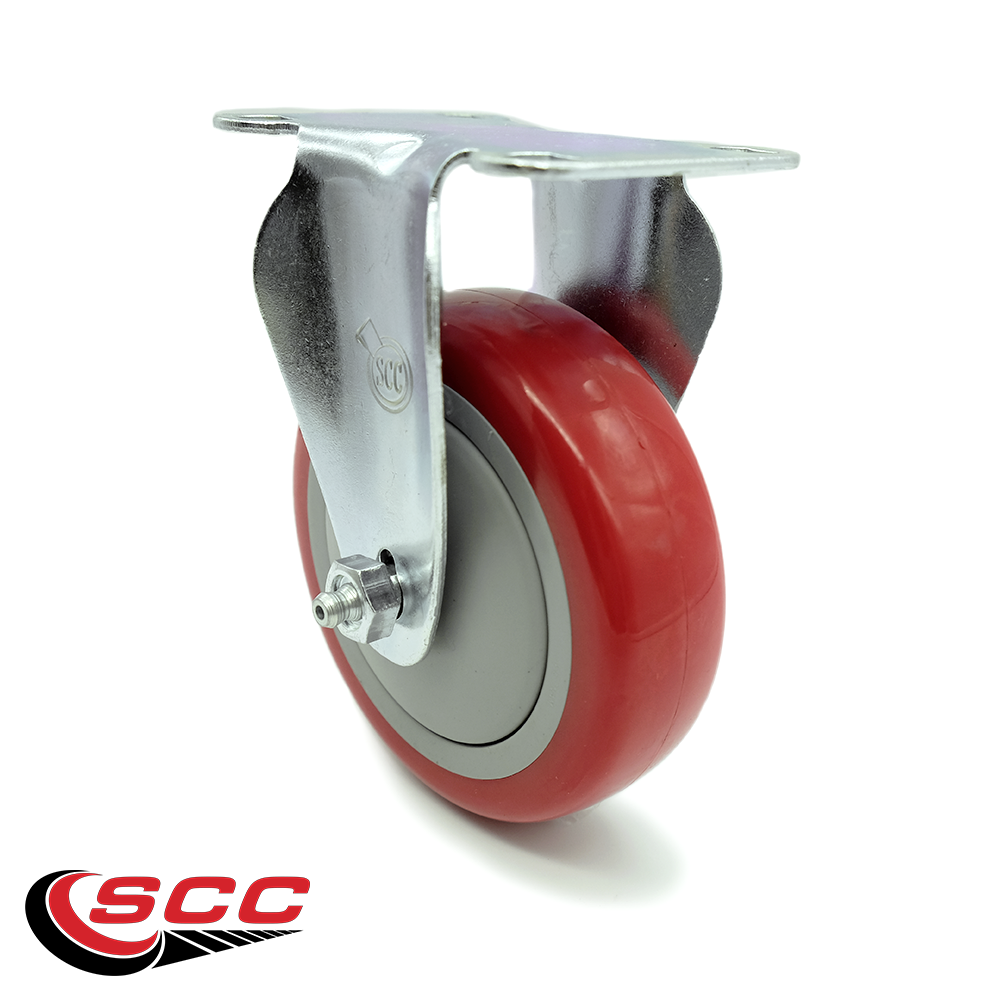

Listing is for one (1) Service Caster Series #20 rigid caster with a 4" diameter by 1-1/4" wide red polyurethane wheel capable of supporting 350lbs./caster. Introducing Service Caster's replacement caster, a perfect alternative to the Uline caster H-5539R. When searching for a reliable and durable solution to your caster needs, look no further than the Service Caster Series 20 top plate polyurethane casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood- rolling on a finely crafted ball bearing design that keeps you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Caster for Uline Caster: H-5539R • Weight Capacity: 350 lbs. • Compatible with Uline Carts, Dollies and Poly Box Trucks H-1956 • HARDWARE NOT INCLUDED
