Service Caster Brand Replacement Caster for Uline Caster H-4943S - Swivel Top Plate Caster with 8 Inch Polyurethane Wheel - Heavy Duty Replacement Caster - Fits Platform, U-Boat and Trucks H-4148

Details

Manufacturer

Service Caster

Model

Series #30

SKU

ULI-SCC-30CS820-PPUR

Condition

new

Quantity

1

UPC

734005481952

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

2-5/8" x 3-5/8" to 3" x 3"

Bolt Size

3/8" (hardware not included)

Capacity

800

Color

H-4943S

Durometer

60D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

9-1/2"

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

9-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

8" Maroon Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Roller Bearing

Wheel Diameter

8

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

8" x 2"

Wheel Type

Polyurethane Tread on Polyolefin Core

Description

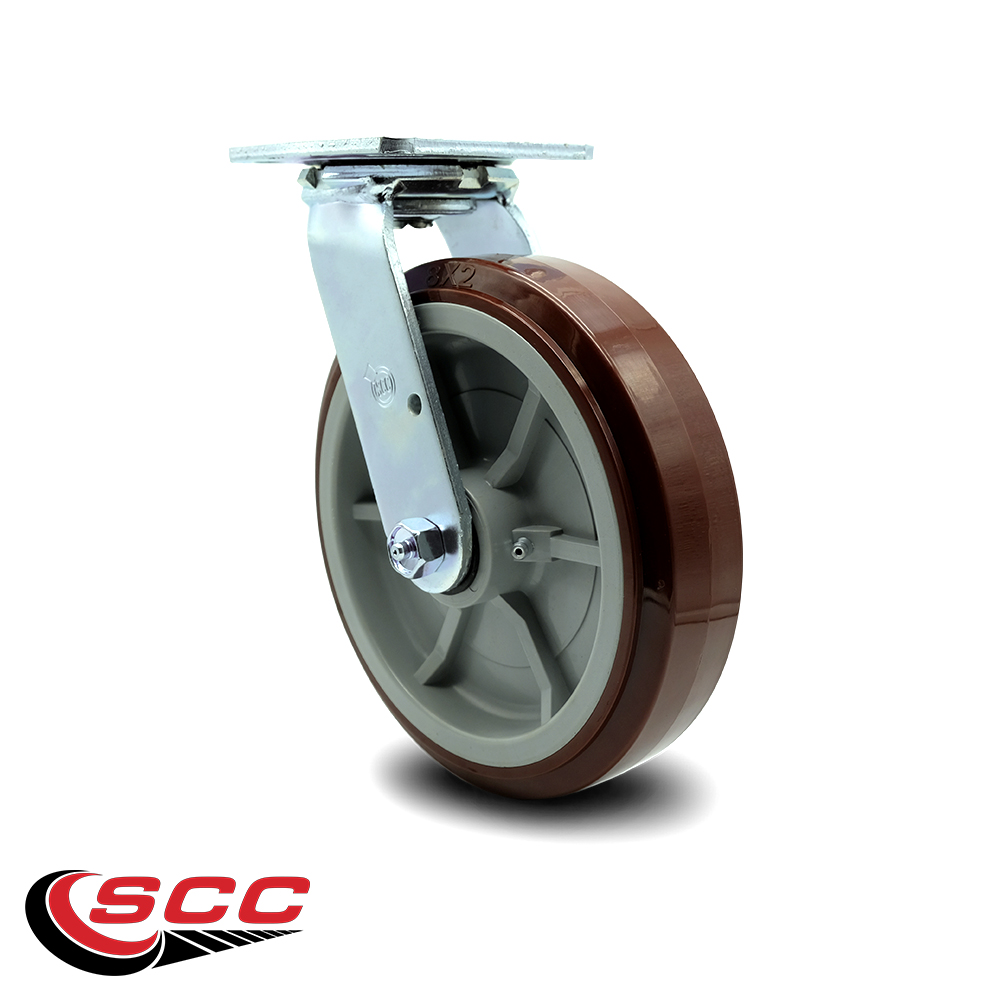

Listing is for one (1) Service Caster Series #30 swivel caster with a 8" diameter, 2" wide polyurethane tread set on a polyolefin core wheel. Supports 1,000 pounds (lbs) per caster. Non Marking/Non Marring. Introducing Service Caster's replacement caster, a perfect alternative to the Uline caster H-4943S. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 30 polyurethane wheel casters. The Service Caster Series #30 features heavy duty non-marking polyurethane tread on a polyolefin core wheel, providing a smooth roll over uneven surfaces without marking or marring floors. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Caster for Uline Caster: H-4943S • Weight Capacity: 800 lbs. • Compatible with Uline Platform, U-Boat and Panel Trucks H-4148 • HARDWARE NOT INCLUDED
