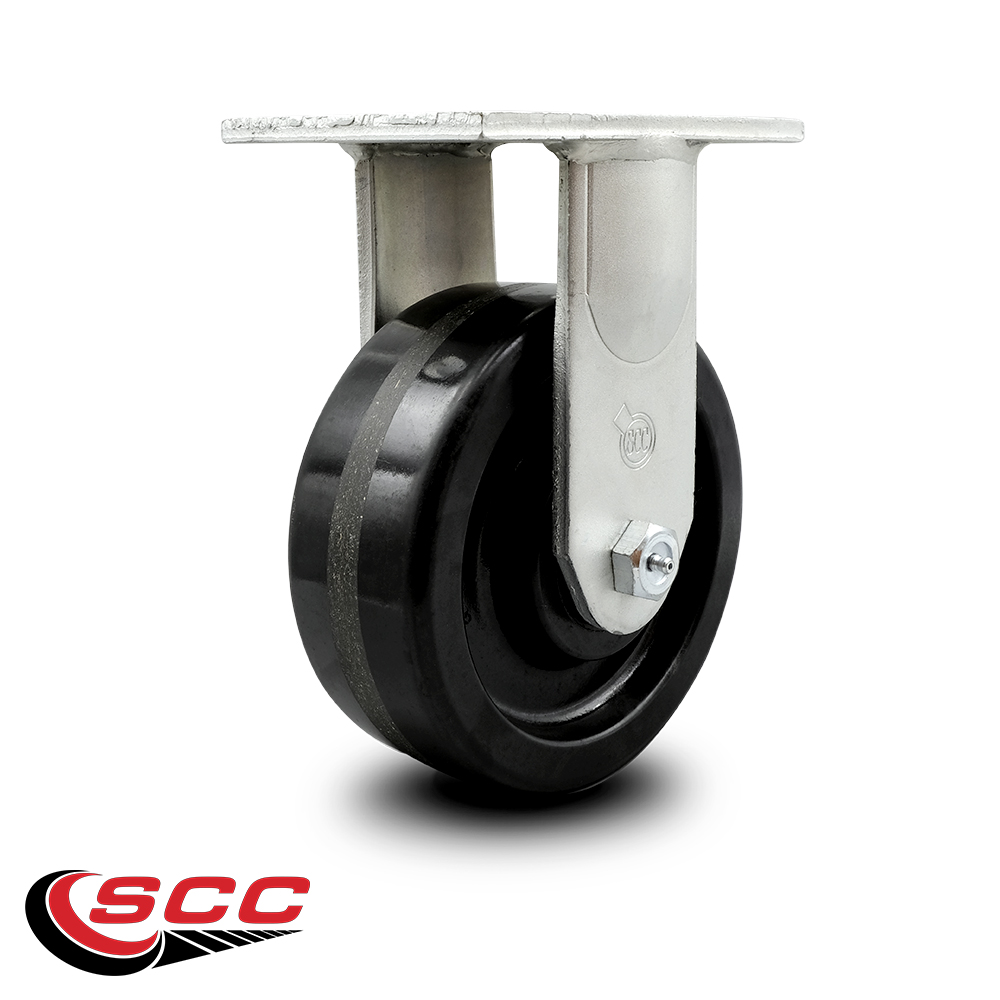

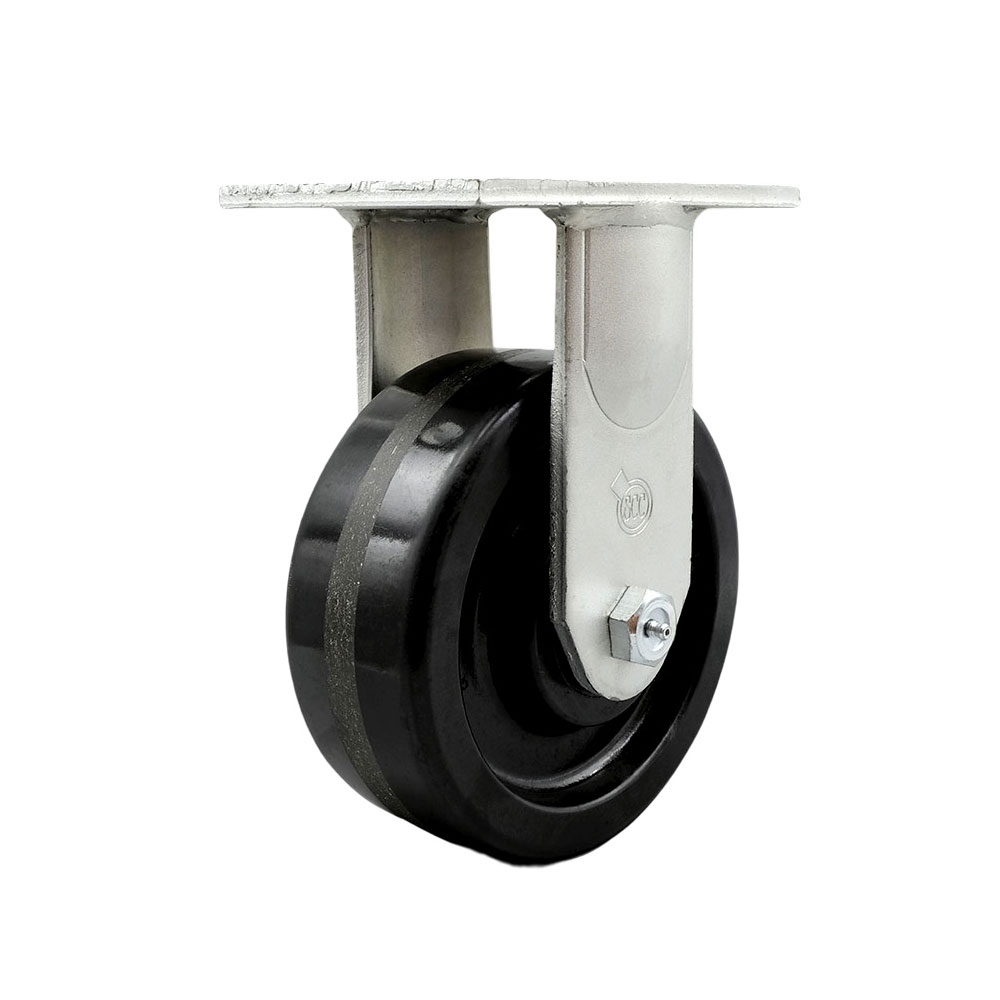

Service Caster Brand Replacement Caster for McMaster Carr Caster 2293T66 - Rigid Top Plate Extra Heavy Duty Caster with 8 Inch Phenolic Wheel - 2,500 lbs. Capacity/Caster

Details

Manufacturer

Service Caster

Model

Series #92

SKU

MCM-SCC-KP92R830-PHR

Condition

new

Quantity

1

UPC

734005547009

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

20 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"

Bolt Size

1/2" (hardware not included)

Capacity

2500

Color

Rigid - No Brake - Black

Durometer

90D

Heat Capacity

-50 degrees F to 250 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

10-1/2"

Lower Temperature

-50

Lower Temperature UofM

F

Material Type

Phenolic

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

10-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Size

2293T66

Top Plate Size

5-1/4" x 7-1/4"

Tread Width

3

Tread Width UofM

inches

Type

Rigid caster

Wheel Bearing

Roller Bearing

Wheel Diameter

8

Wheel Diameter UofM

inches

Wheel Material

Phenolic

Wheel Size

8" x 3"

Wheel Type

Phenolic

Description

High quality replacement caster for McMaster Carr caster 2293T66. Listing is for one (1) Service Caster Series #92 rigid caster with a 8" diameter by 3" wide phenolic wheel capable of supporting 2,500 lbs. per caster. When searching for a reliable and durable solution to your McMaster Carr replacement caster needs, rely on Service Caster’s Series 92 top plate phenolic casters. The Service Caster Series #92 is ideal for material handling, carts, equipment, and shop projects. The phenolic wheels roll easier and quieter than comparable steel wheels, and are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Additionally, they are resistant to water, oil, grease, and are non-metallic, providing spark proof protection. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features ½” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • The Kingpinless Series 92 phenolic casters offer various wheel sizes and mounting heights – 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height) and are made of a phenolic material that is highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, are also spark proof. • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”. • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on. • HARDWARE NOT INCLUDED
