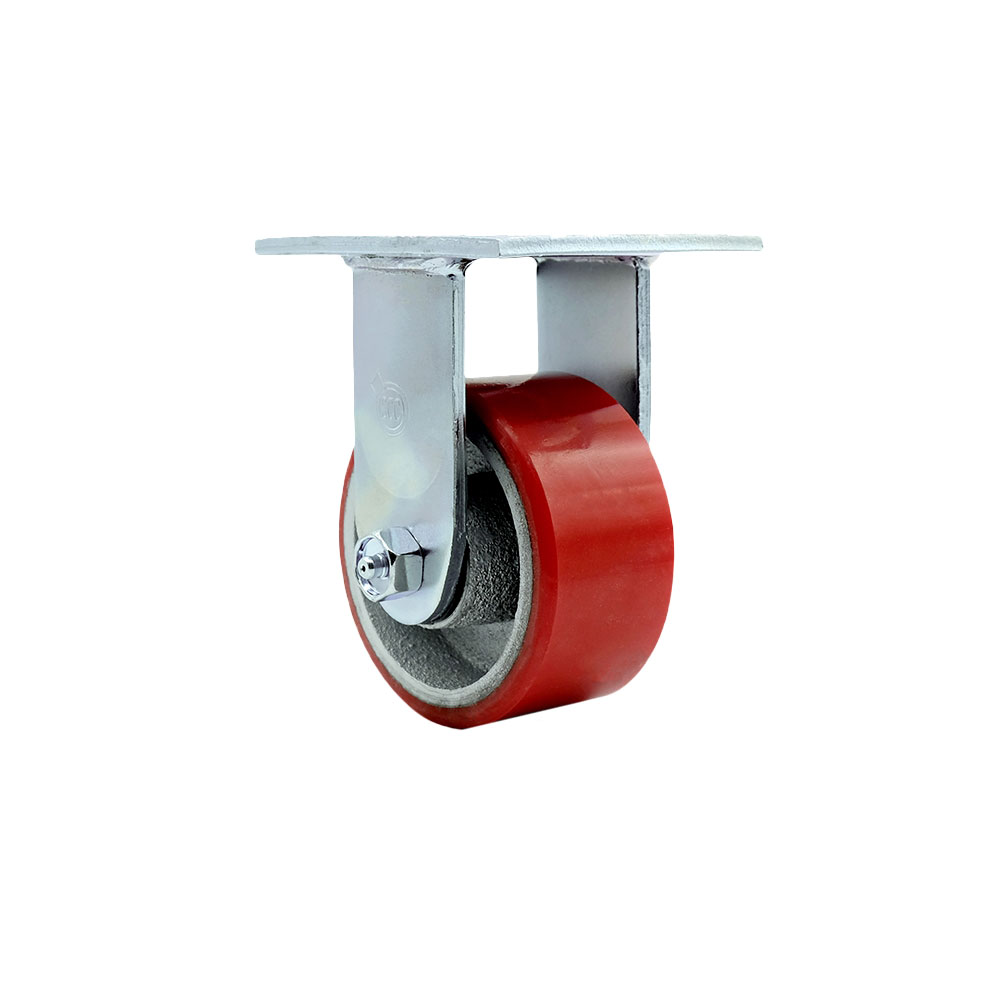

Service Caster Brand Replacement Caster for McMaster Carr Caster 22455T35 - Rigid Top Plate Caster with 4 Inch Red Polyurethane on Cast Iron Wheel - 700 lbs. Capacity/Caster

Details

Manufacturer

Service Caster

Model

Series #30

SKU

MCM-SCC-30R420-PUR-RS

Condition

new

Quantity

1

UPC

734005546880

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

9 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

2-5/8" x 3-5/8" to 3" x 3"

Bolt Size

3/8" (hardware not included)

Capacity

700

Color

Rigid - No Brake - Red

Durometer

95A

Heat Capacity

-40 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

5-5/8"

Lower Temperature

-40

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Cast Iron Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

5-5/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Size

22455T35

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Rigid caster

Wheel Bearing

Roller Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Cast Iron Core

Wheel Size

4" x 2"

Wheel Type

Polyurethane Tread on Cast Iron Core

Description

High quality replacement caster for McMaster Carr caster 22455T35. Listing is for one (1) Service Caster Series #30 rigid caster with a 4" diameter by 2" wide red polyurethane on cast iron wheel capable of supporting 700 lbs. per caster. When searching for a reliable and durable solution to your McMaster Carr replacement caster needs, rely on Service Caster’s Series 30 top plate polyurethane casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Service Caster’s Red Polyurethane on Silver Cast Iron core wheels come in four sizes – 4" x 2", 5” x 2", 6” x 2", and 8” x 2". • Weight capacity ranges from 700 lbs. on the 4" wheel, 1000 lbs. on the 5”, 1200 lbs. on the 6”, and 1250 lbs. on the 8”. • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • HARDWARE NOT INCLUDED
