Browse / Parts & Components / Service Caster Brand Replacement Caster for Magliner Platform Truck and Hand Truck Caster 131040 - Swivel Round Stem Caster with 5" Gray Polyurethane Wheel - 1” x 2-1/2” Stem

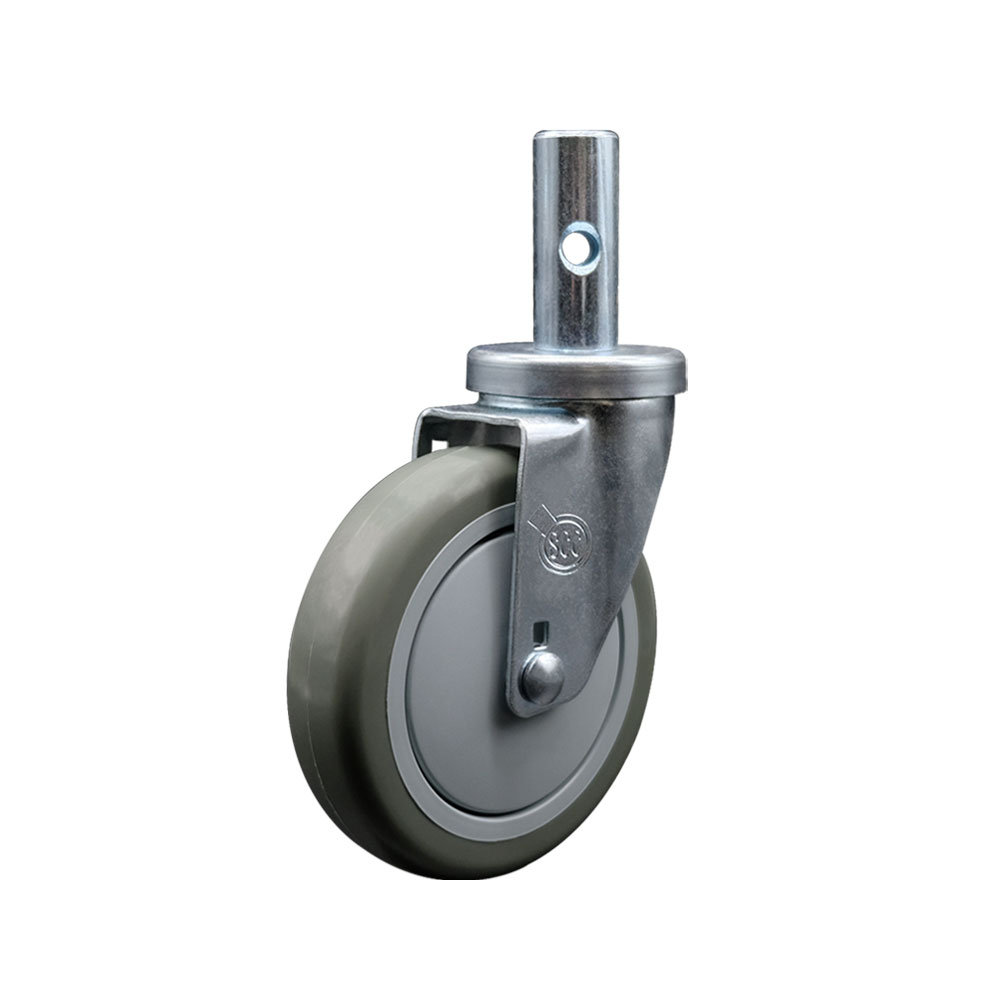

Service Caster Brand Replacement Caster for Magliner Platform Truck and Hand Truck Caster 131040 - Swivel Round Stem Caster with 5" Gray Polyurethane Wheel - 1” x 2-1/2” Stem
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- MAG-SCC-RS20S514-PPUB-GRY-1-2HOLES
- Condition
- new
- Quantity
- 1
- UPC
- 734005415247
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 8 x 8 x 8 in
- Shipping weight
- 4 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Capacity
- 350
- Color
- 131040 - Gray
- Durometer
- 60D
- Heat Capacity
- -20 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 6-1/8"
- Lower Temperature
- -20
- Lower Temperature UofM
- F
- Material Type
- Polyurethane Tread on Polyolefin Core
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 6-1/8"
- Mounting Type
- Round Stem
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Stem
- Swivels
- Yes
- Size
- Platform Truck and Hand Truck
- Stem

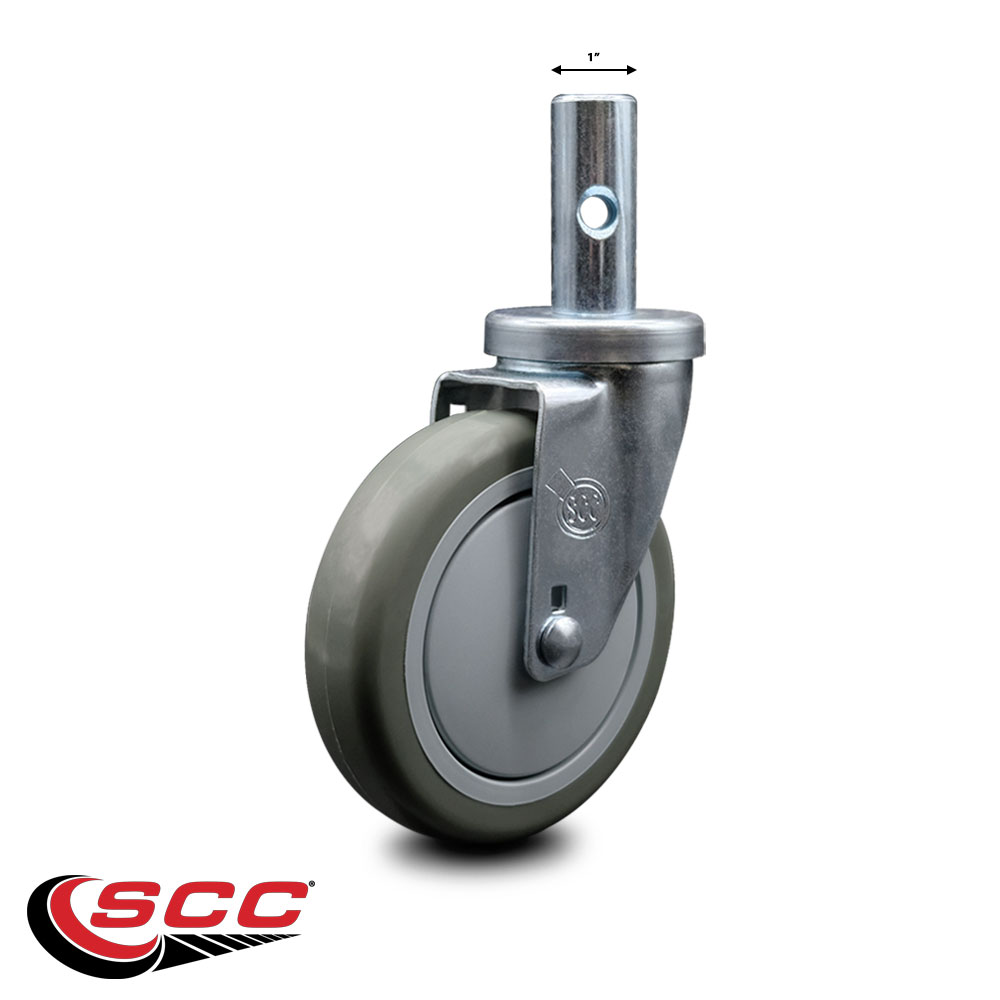

- 1" x 2-1/2" Round Stem
- Stem Diameter
- 1"
- Stem Length
- 2.5
- Stem Length UofM
- inches
- Stem Type
- Round Stem
- Tread Width
- 1.25
- Tread Width UofM
- inches
- Type
- Swivel caster
- Wheel Bearing
- Precision Ball Bearing
- Wheel Diameter
- 5
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyurethane Tread on Polyolefin Core
- Wheel Size
- 5" x 1-1/4"
- Wheel Type
- Polyurethane Tread on Polyolefin Core
Description
High quality replacement caster for Magliner Platform Truck and Hand Truck caster 131040. Listing is for one (1) Service Caster Series #20 swivel caster with a 5" diameter, 1-1/4" wide gray polyurethane wheel. Supports 350 pounds (lbs) per caster. When searching for a reliable and durable solution for your Magliner Platform Truck and Hand Truck replacement needs, consider Service Caster’s Series 20 round stem polyurethane casters.The Service Caster Series 20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood. All rolling on a finely crafted ball bearing design that keeps you moving forward. • Replacement Caster for Magliner Caster: 131040 • Weight Capacity: 350 lbs • Compatible with Magliner Platform Trucks and Three-Position Hand Trucks: MT-TA, MT1TA, TPAUAC3, TPAUA4, TPAUAC, TPAUA3, TPAUAE, TPAUAB, TPAAAB-B, TPAE1B3B and STA8AA1. • HARDWARE NOT INCLUDED
