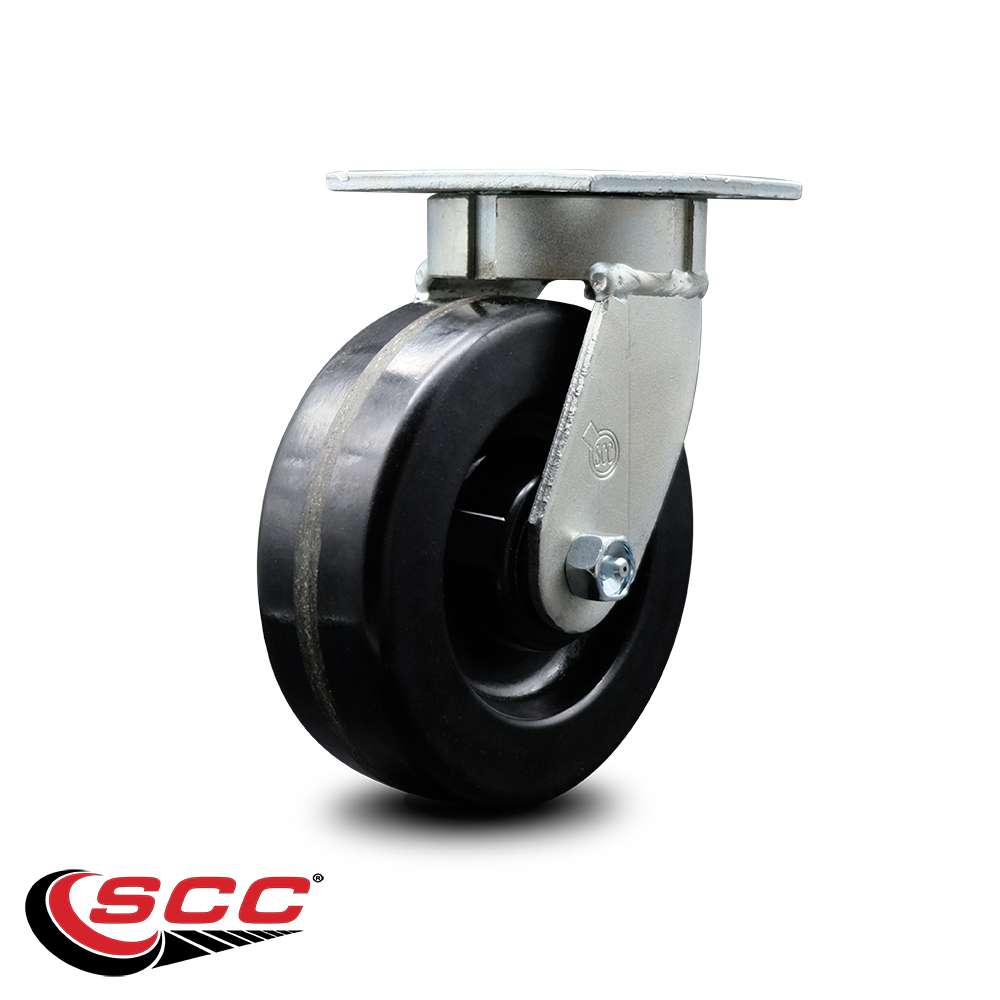

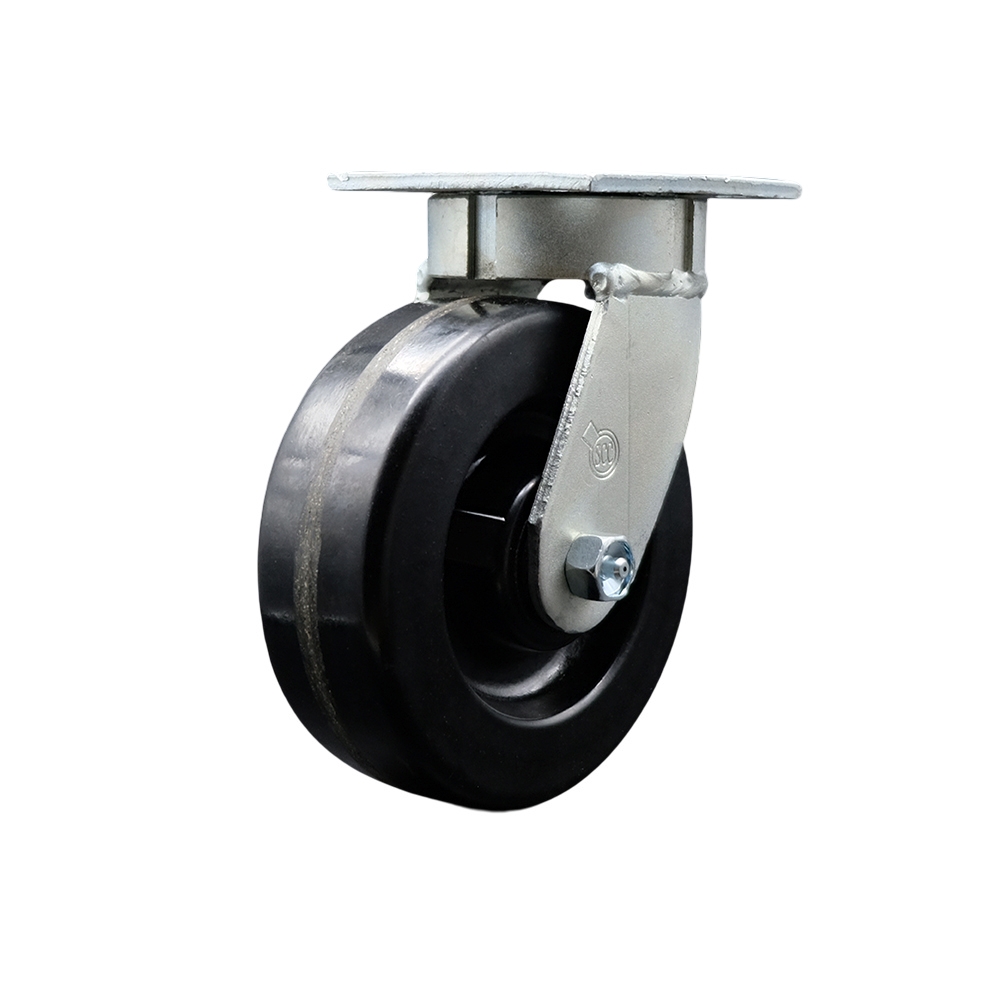

Service Caster Brand Replacement Caster for Grainger Caster 489D64 P25S-PH060R-14-Swivel Kingpinless Top Plate Caster with 6 Inch Phenolic Wheel-Fits Material Handling Containers&Waste Disposal Trucks

Details

Manufacturer

Service Caster

Model

Series#KP30

SKU

GRA-SCC-KP30S620-PHR

Condition

new

Quantity

1

UPC

734005482997

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

9 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

2-5/8" x 3-5/8" to 3" x 3"

Bolt Size

3/8" (hardware not included)

Capacity

1200

Color

Swivel - No Brake - Black

Durometer

95A

Heat Capacity

-50 degrees F to 250 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Lower Temperature

-50

Lower Temperature UofM

F

Material Type

Phenolic

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

489D64 and P25S-PH060R-14

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Phenolic

Wheel Size

6" x 2"

Wheel Type

Phenolic

Description

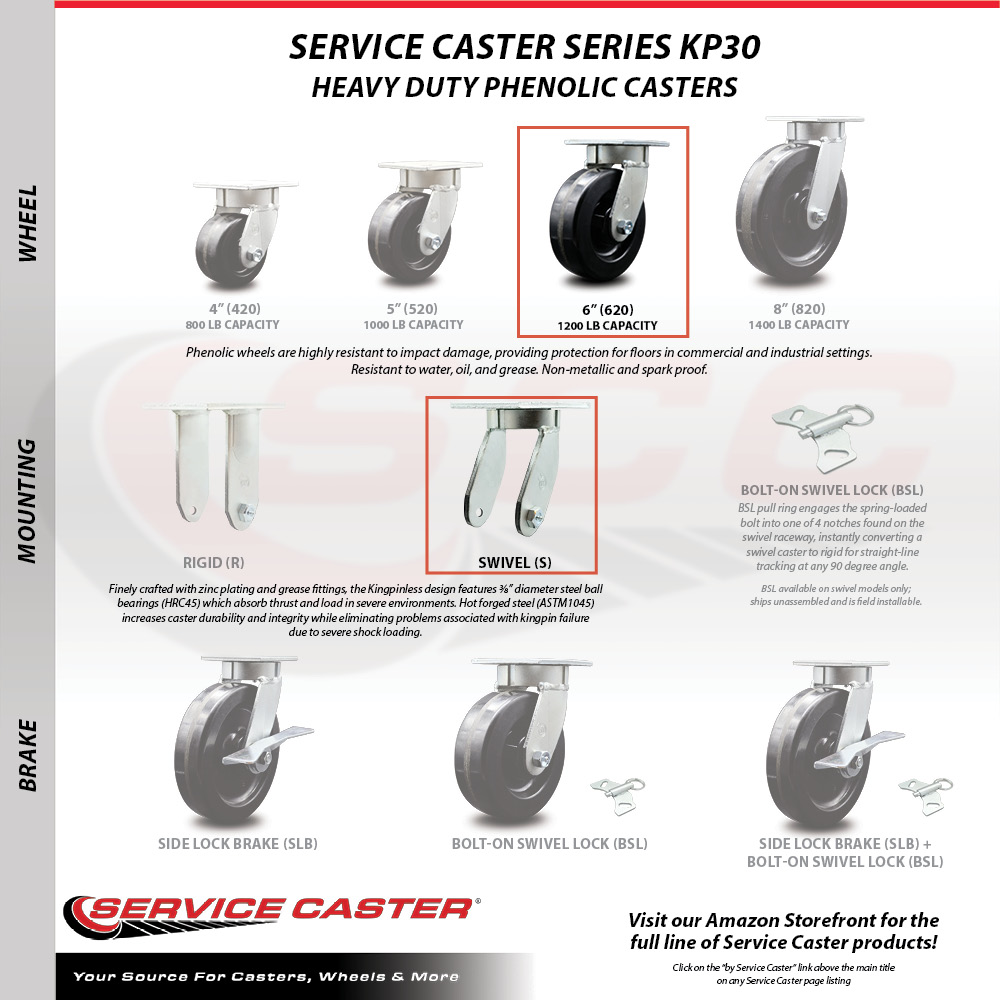

Listing is for one (1) Service Caster Series #KP30 swivel caster with a 6" diameter by 2" wide phenolic wheel capable of supporting 1,200 lbs./caster. Introducing Service Caster's replacement caster, a perfect alternative to the Grainger caster 489D64 P25S-PH060R-14. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 phenolic wheel casters. The Service Caster Series KP30 is ideal for material handling, carts, shop projects and industrial equipment. The phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, are also spark proof. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward. • Replacement Caster for Grainger Caster: 489D64 P25S-PH060R-14 • Weight Capacity: 1200 lbs. • Compatible with Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks and Waste Disposal Trucks • HARDWARE NOT INCLUDED
