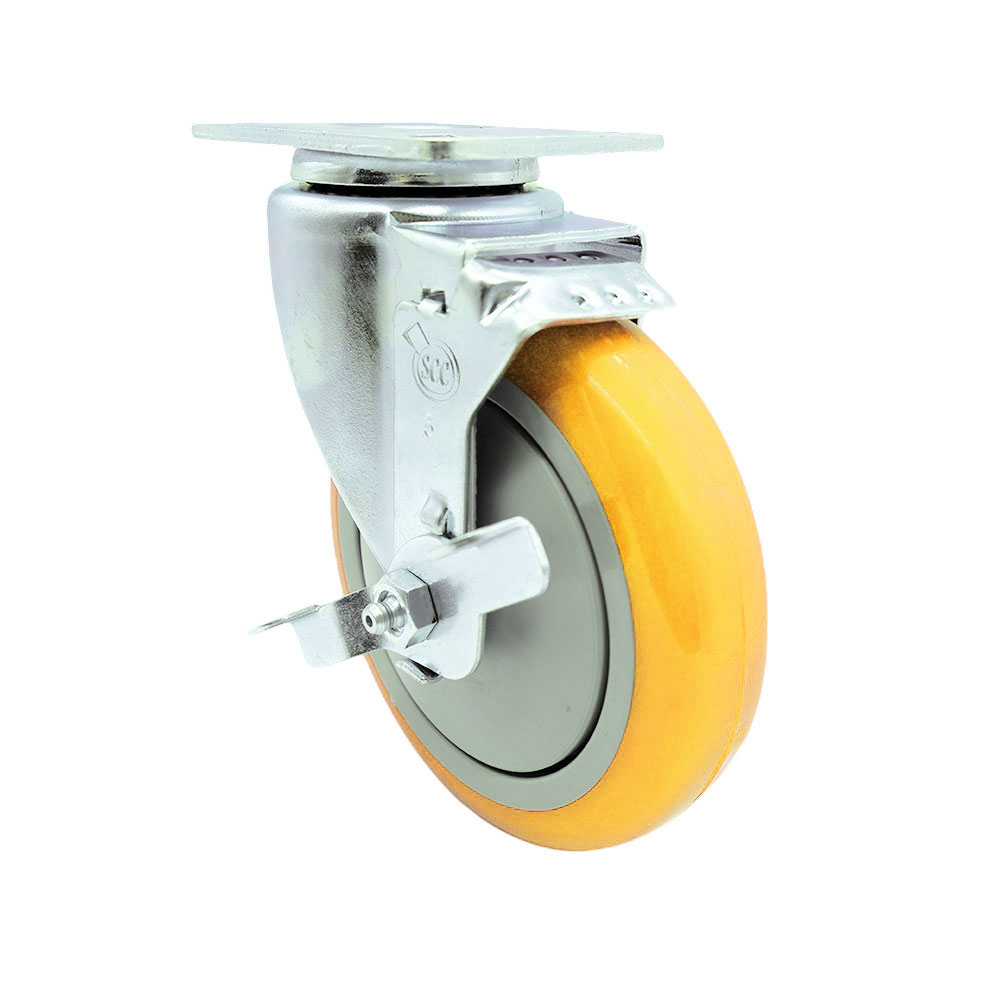

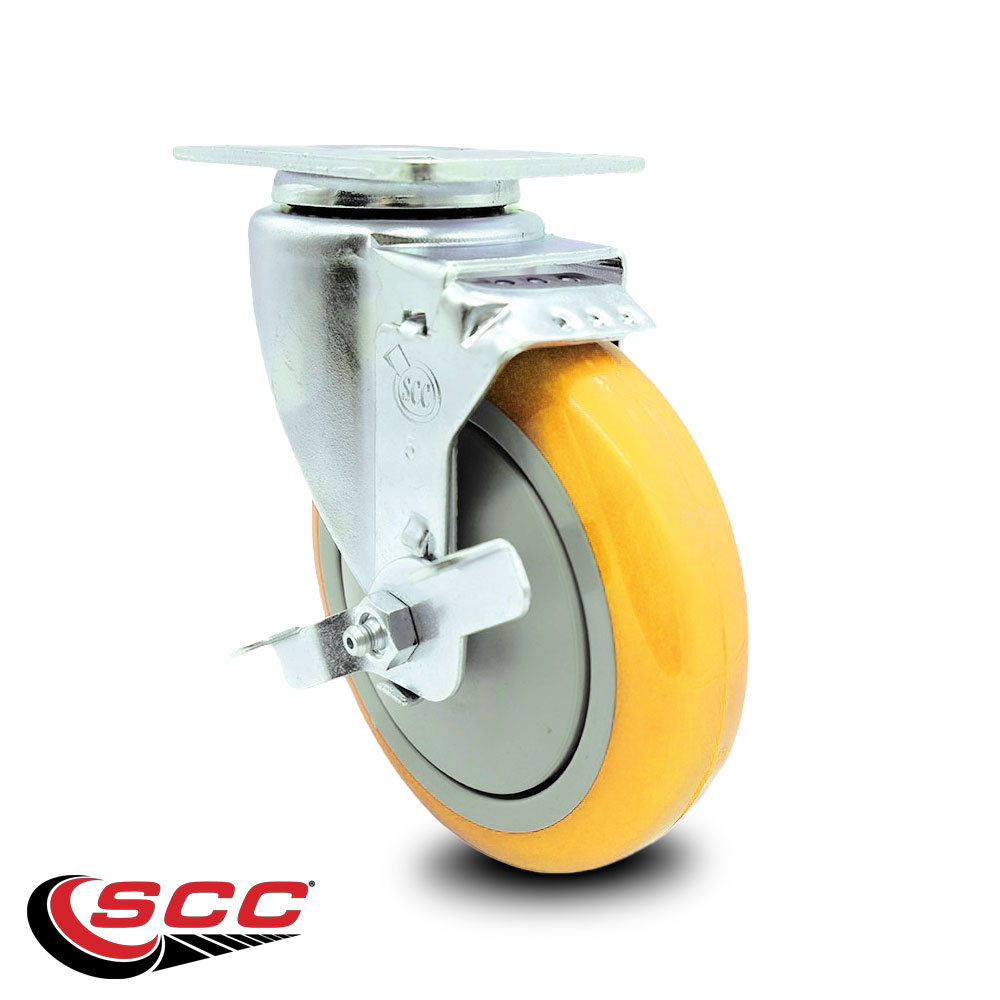

Service Caster Brand Replacement Caster for Genie Caster 57735GT - Swivel Top Plate Casters Caster with 5 Inch Yellow Polyurethane Wheel and Top Lock Brake - 4 Inch x 4-1/2 Inch Overall Top Plate

Details

Manufacturer

Service Caster

Model

Series #20

SKU

GEN-SCC-20S514-PPUB-YEL-TLB-TP3

Condition

new

Quantity

1

UPC

734005546408

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

2-5/8" x 3-5/8" to 3" x 3"

Bolt Size

3/8" (hardware not included)

Capacity

350

Color

Swivel - Top Lock Brake - Yellow

Durometer

60D

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Top Lock Brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

1.25

Tread Width UofM

inches

Type

Swivel caster w/top lock brake

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

5" x 1-1/4"

Wheel Type

Polyurethane Tread on Polyolefin Core

Description

High quality replacement caster for Genie caster 57735GT. Listing is for one (1) Service Caster Series #20 swivel caster with a 5" diameter by 1-1/4" wide yellow polyurethane wheel and a top locking brake capable of supporting 350 lbs./caster. When searching for a reliable and durable solution to your Genie replacement caster needs, look no further than the Service Caster Series 20 top plate polyurethane casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood- rolling on a finely crafted ball bearing design that keeps you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Replacement Caster for Genie Lift • Weight Capacity: 350 lbs. • Compatible with Genie Lift: 57735GT • HARDWARE NOT INCLUDED
