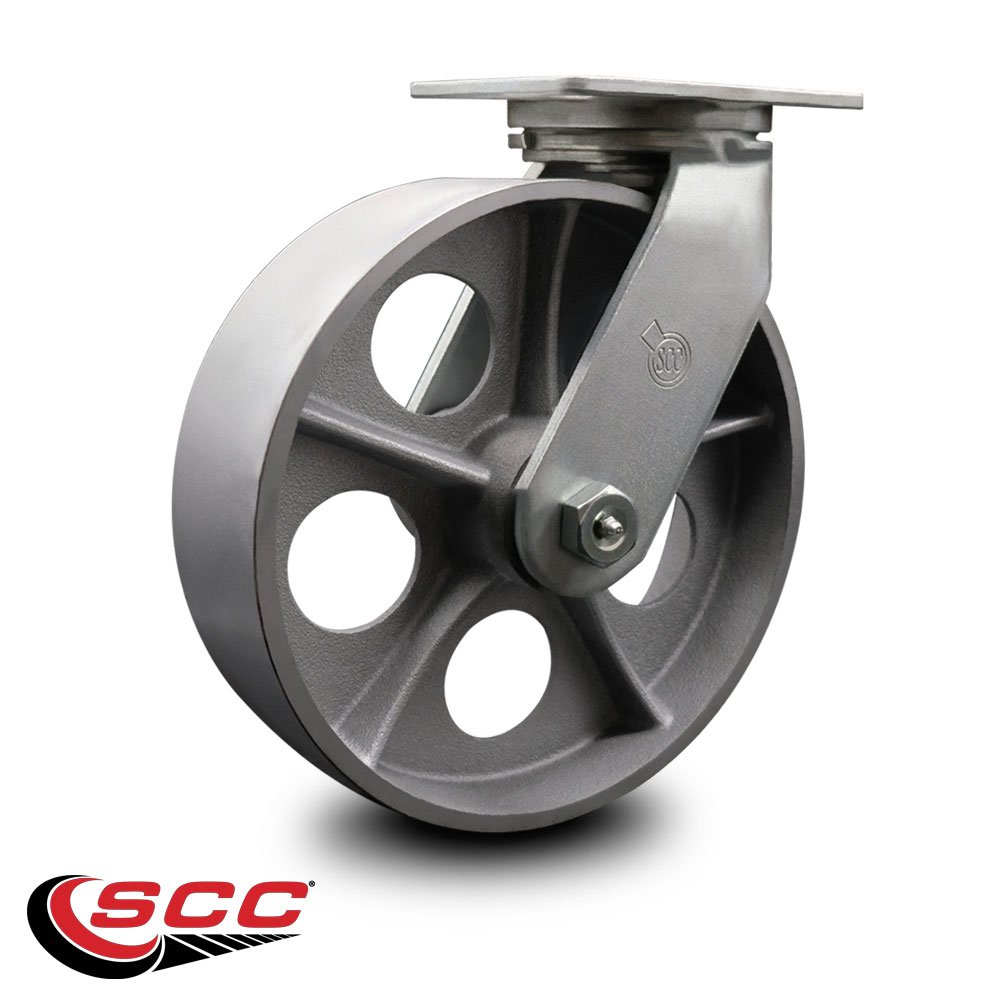

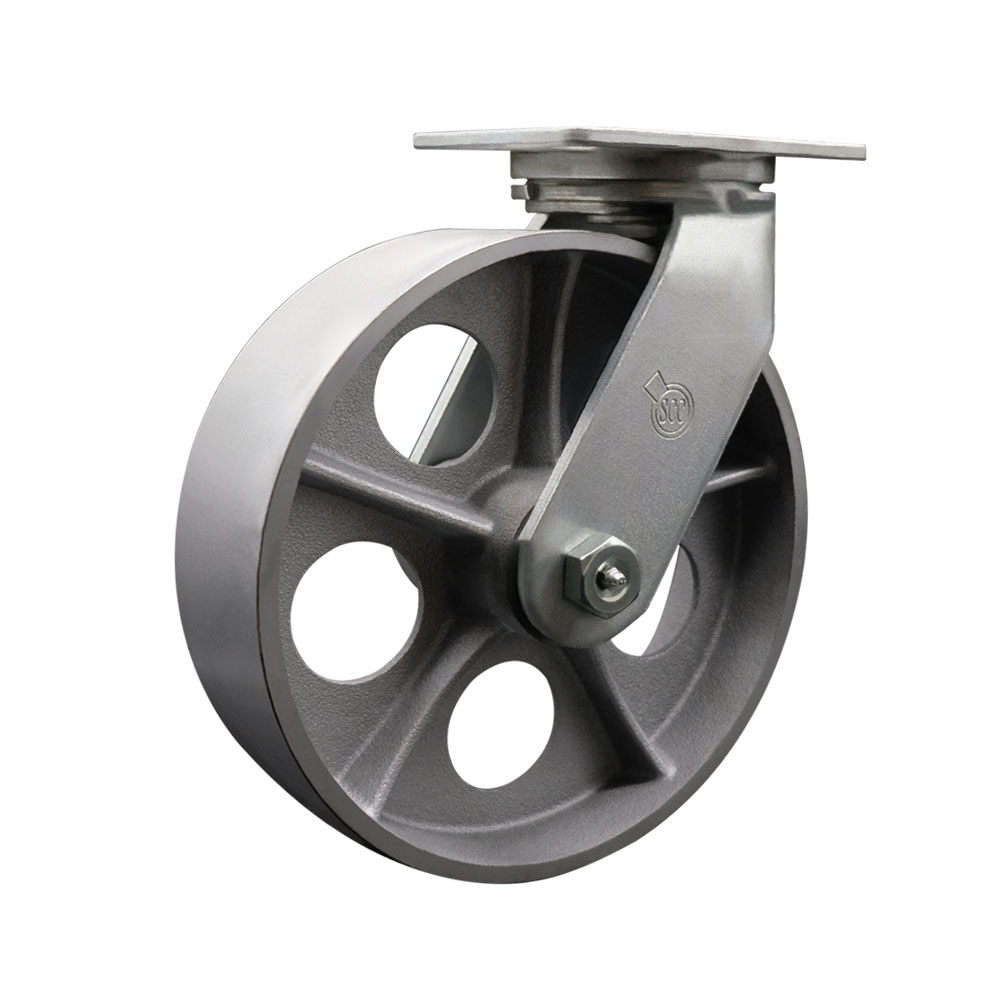

Semi Steel Cast Iron Swivel Top Plate Heavy Duty Caster with 10 Inch Wheel – 2,500 lbs. Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series#60

SKU

SCC-60S1030-SSR

Condition

new

Quantity

1

UPC

734005551280

Harmonized code

8302.20.0000

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

14 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Pattern

2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"

Bolt Size

1/2" (hardware not included)

Capacity

2500

Color

Swivel - 1 PC - Silver

Heat Capacity

-45 degrees F to 600 degrees F

Item Weight Unit of Measure

pounds

Load Height

11-1/2"

Lower Temperature

-45

Lower Temperature UofM

F

Material Type

Semi Steel Cast Iron

Maximum Temperature

600

Maximum Temperature UofM

F

Mounting Height

11-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Swivels

Yes

Size

10" Wheel

Top Plate Size

4-1/2" x 6-1/4"

Tread Width

3

Tread Width UofM

inches

Type

Swivel caster

Wheel Bearing

Roller Bearing

Wheel Diameter

10

Wheel Diameter UofM

inches

Wheel Material

Semi Steel Cast Iron

Wheel Size

10" x 3"

Wheel Type

Semi Steel Cast Iron

Description

Listing is for one (1) Service Caster Series #60 swivel caster with a 10" diameter, 3" wide semi steel cast iron wheel. Supports 2,500 pounds (lbs) per caster. When searching for a reliable and durable solution for heavy duty projects, consider Service Caster’s Series 60 top plate semi steel cast iron wheel casters. The Service Caster Series #60 is ideal for material handling, carts, equipment, and shop projects. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 2,500 lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Finely crafted with a machined hub, wheel face and double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 60, keeping you moving forward.Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #60 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 4" Wheel: 5-1/2" mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 10-1/8” mounting height; 10” wheel: 11-1/2” mounting height; 12” wheel: 13-1/2” mounting height. • Weight Capacity: 4": 2,500 lbs Capacity/Caster, 5": 2,000 lbs Capacity/Caster, 6": 2,500 lbs Capacity/Caster, 8": 2,500 lbs. Capacity/Caster, 10": 2,500 lbs Capacity/Caster, and 12": 2,500 lbs Capacity/Caster • Weight Capacity: 2,500 lbs. • Overall Top Plate Dimensions: 4-1/2" x 6-1/4"; Mounting Hole Dimensions: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
