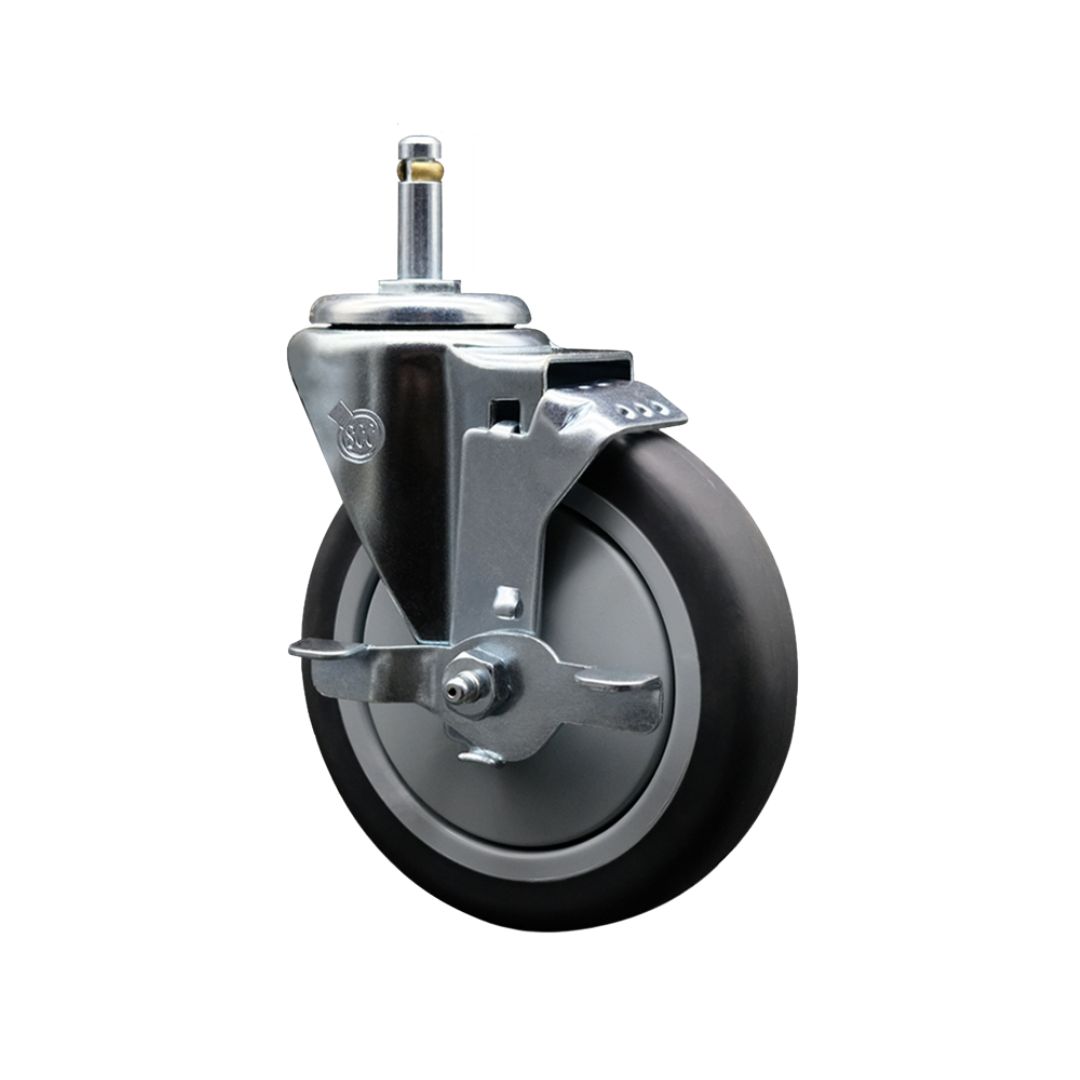

Rubbermaid Mobile Shelf Truck 5 Inch Replacement Swivel Caster with Brake - Fits Rubbermaid Mobile Shelf Truck FG9T4200BLA FG9T4300BLA and FG9T4400BLA - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

RUB-SCC-GR20S514-TPRB-TLB-716138

Condition

new

Quantity

1

UPC

734005082715

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

2 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

300

Color

Swivel - Side Lock Brake - Gray

Durometer

75A

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Top Lock Brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Thermoplastic Rubber

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Grip Ring Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

Fits Rubbermaid Mobile Shelf Truck

Stem

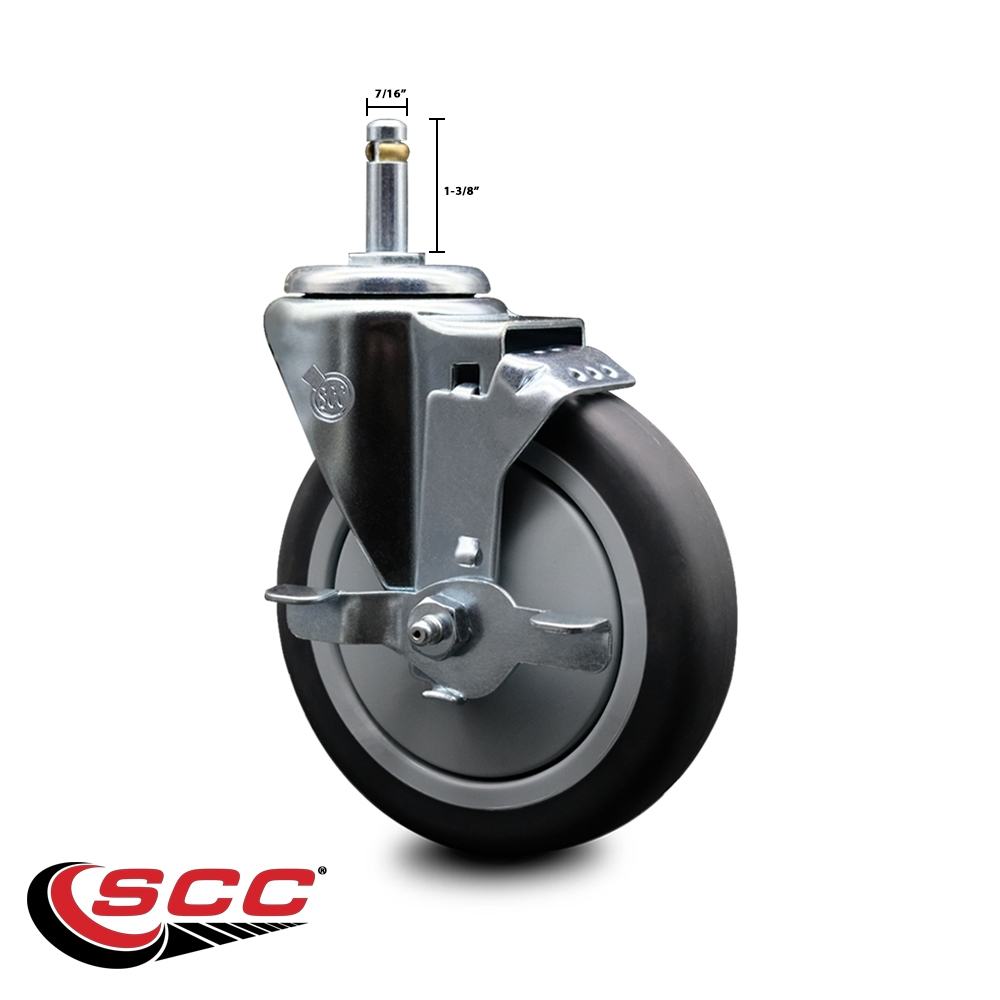

7/16" diameter x 1-3/8" length grip ring stem

Stem Diameter

7/16"

Stem Type

Grip Ring Stem

Tread Width

1.25

Tread Width UofM

inches

Type

(1) swivel caster with brake

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Thermoplastic Rubber Tread on Polyolefin Core

Wheel Size

5"

Wheel Type

Thermoplastic Rubber

Description

Listing is for one (1) Service Caster Series #20 swivel caster with a brake and a 5" diameter by 1-1/4" wide thermoplastic rubber wheel capable of supporting 300 lbs. per caster. Replacement part fits Rubbermaid Mobile Shelf Truck FG9T4200BLA, FG9T4300BLA and FG9T4400BLA. When searching for a reliable and durable solution to your Rubbermaid Mobile Shelf Truck caster needs, consider Service Caster’s Series 20 thermoplastic rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, shop projects and is the perfect solution as new or replacement parts for Rubbermaid Mobile Shelf Trucks. The zinc plated finish provides durability under any condition, and the soft, quiet and non-marking thermoplastic rubber wheels perform especially well on hard surfaces such as concrete, tile, and wood. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Rubbermaid Mobile Shelf Truck: FG9T4200BLA, FG9T4300BLA & FG9T4400BLA • Rubbermaid Mobile Shelf Truck Replacement Caster - Service Caster Brand • Weight Capacity: 300 lbs. Capacity Per Caster • Grip Ring Stem: 7/16" diameter x 1-3/8" length
