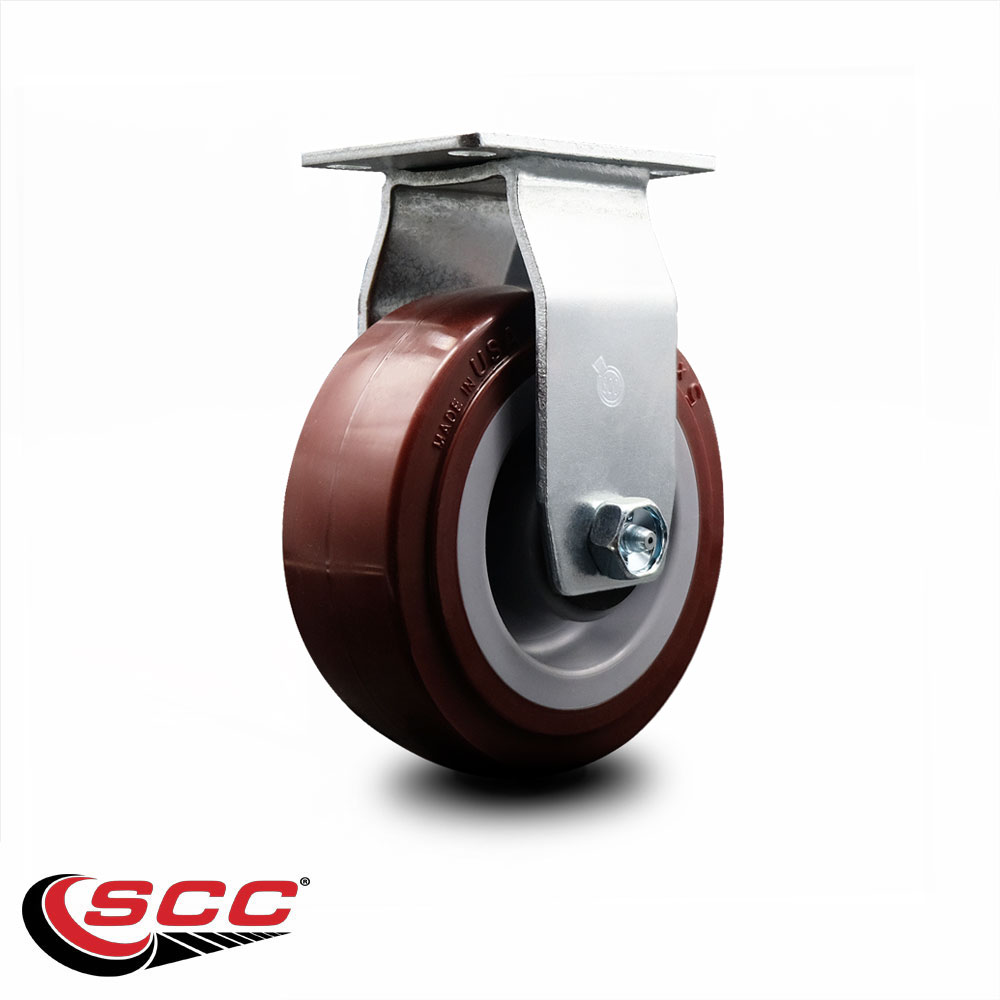

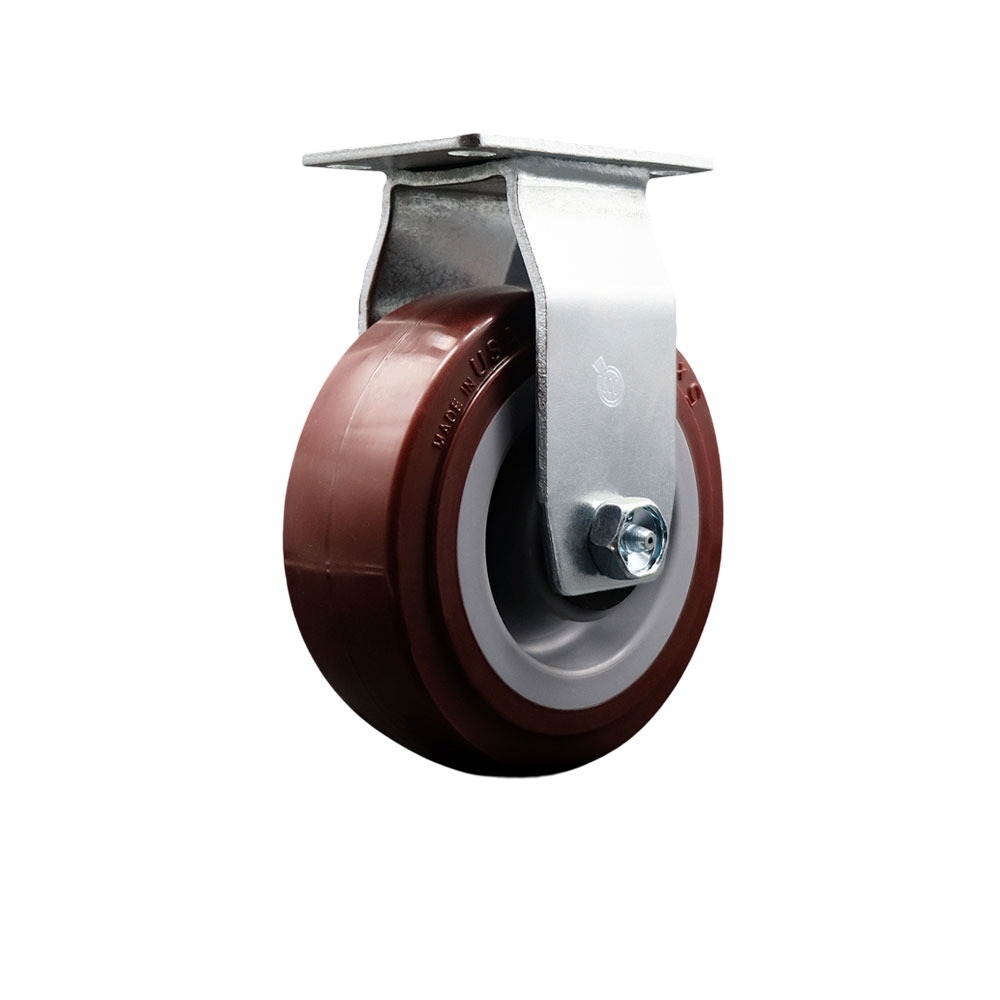

Browse / Parts & Components / Rigid Top Plate Caster – Maroon 5 Inch by 2 Inch Polyurethane on Polyolefin Wheel – Roller Bearing – 450 lbs. Capacity Per Caster – Service Caster Brand
Rigid Top Plate Caster – Maroon 5 Inch by 2 Inch Polyurethane on Polyolefin Wheel – Roller Bearing – 450 lbs. Capacity Per Caster – Service Caster Brand
Seller
Sign in to see direct contact details and connect off-platform, or message through CynchUp.
View seller's listingsDetails
- Manufacturer
- Service Caster
- Model
- Series #20
- SKU
- SCC-20R520-PPUR
- Condition
- new
- Quantity
- 1
- UPC
- 734005072785
- Harmonized code
- 8302.20.0000
- Dimensions (L x W x H)
- 12 x 12 x 7.5 in
- Shipping weight
- 5 lb
- Posted
- Sep 17, 2026, 7:00 PM CDT
Specifications
- Bolt Pattern
- 1-3/4" x 2-7/8" to 3"
- Bolt Size
- 5/16" (hardware not included)
- Capacity
- 450
- Color
- Rigid - No Brake - Maroon
- Durometer
- 60D
- Heat Capacity
- -20 degrees F to 180 degrees F
- Item Dimension Unit of Measure
- inches
- Item Weight Unit of Measure
- pounds
- Load Height
- 6-1/8"
- Lower Temperature
- -20
- Lower Temperature UofM
- F
- Material Type
- Polyurethane on Polyolefin
- Maximum Temperature
- 180
- Maximum Temperature UofM
- F
- Mounting Height
- 6-1/8"
- Mounting Type
- Top Plate
- Plating/Coating
- Bright Zinc Plated Finish
- Casters Mounting Method
- Plate
- Size
- 5" Wheel
- Top Plate Size
- 2-3/8" x 3-5/8"
- Tread Width
- 2
- Tread Width UofM
- inches
- Type
- Rigid caster
- Wheel Bearing
- Roller Bearing
- Wheel Diameter
- 5
- Wheel Diameter UofM
- inches
- Wheel Material
- Polyurethane Tread on Polyolefin Core
- Wheel Size
- 5" x 2"
- Wheel Type
- Polyurethane on Polyolefin
Description

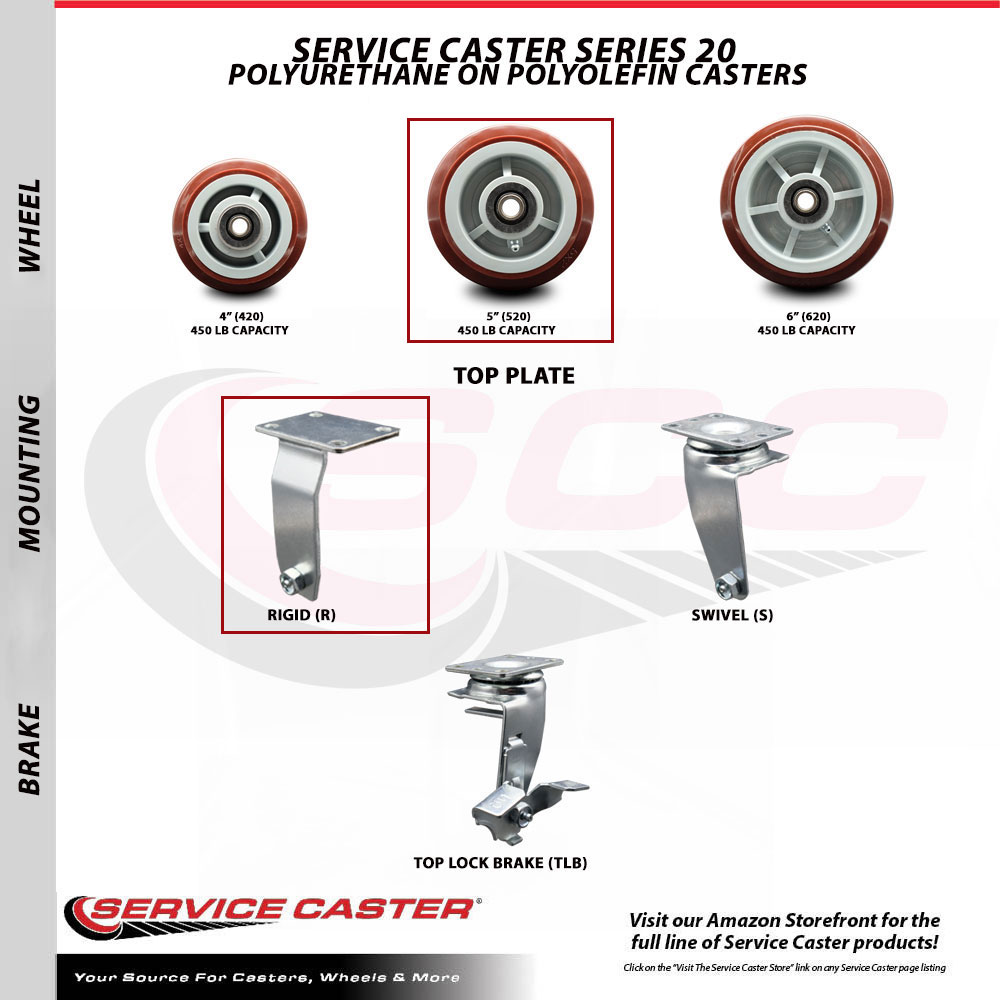

Listing is for one (1) Service Caster Series #20 rigid caster with a 5" diameter by 2" wide polyurethane on polyolefin wheel and roller bearing capable of supporting 450lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 20 polyurethane wheel casters. The Service Caster Series #20 features heavy duty non-marking polyurethane tread on a polyolefin core wheel, providing a smooth roll over uneven surfaces without marking or marring floors. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 20, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Polyurethane on Polyolefin casters offer various wheel sizes and mounting heights: 4” Wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/2” mounting height. • Weight Capacity: 4": 450 lbs Capacity Per Caster; 5": 450 lbs Capacity Per Caster; 6": 450 lbs Capacity Per Caster • Top plate measures at 2-3/8" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.
