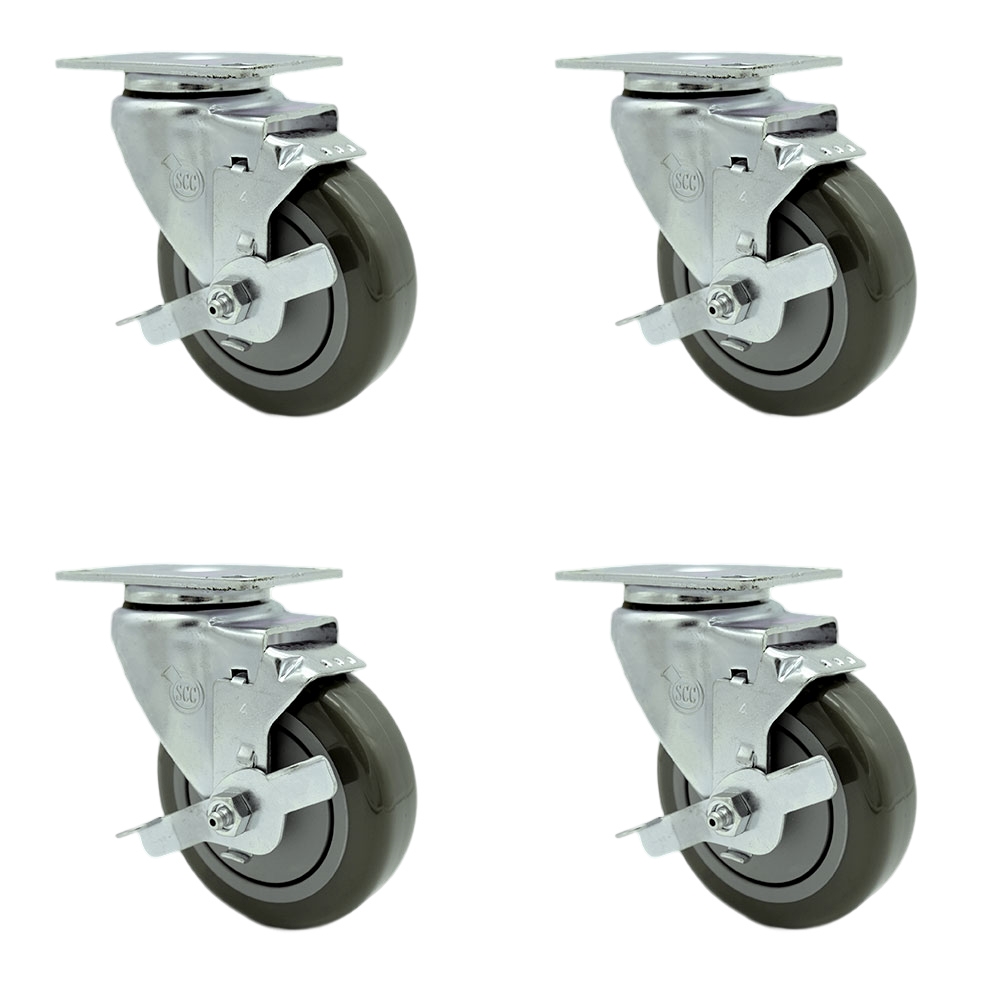

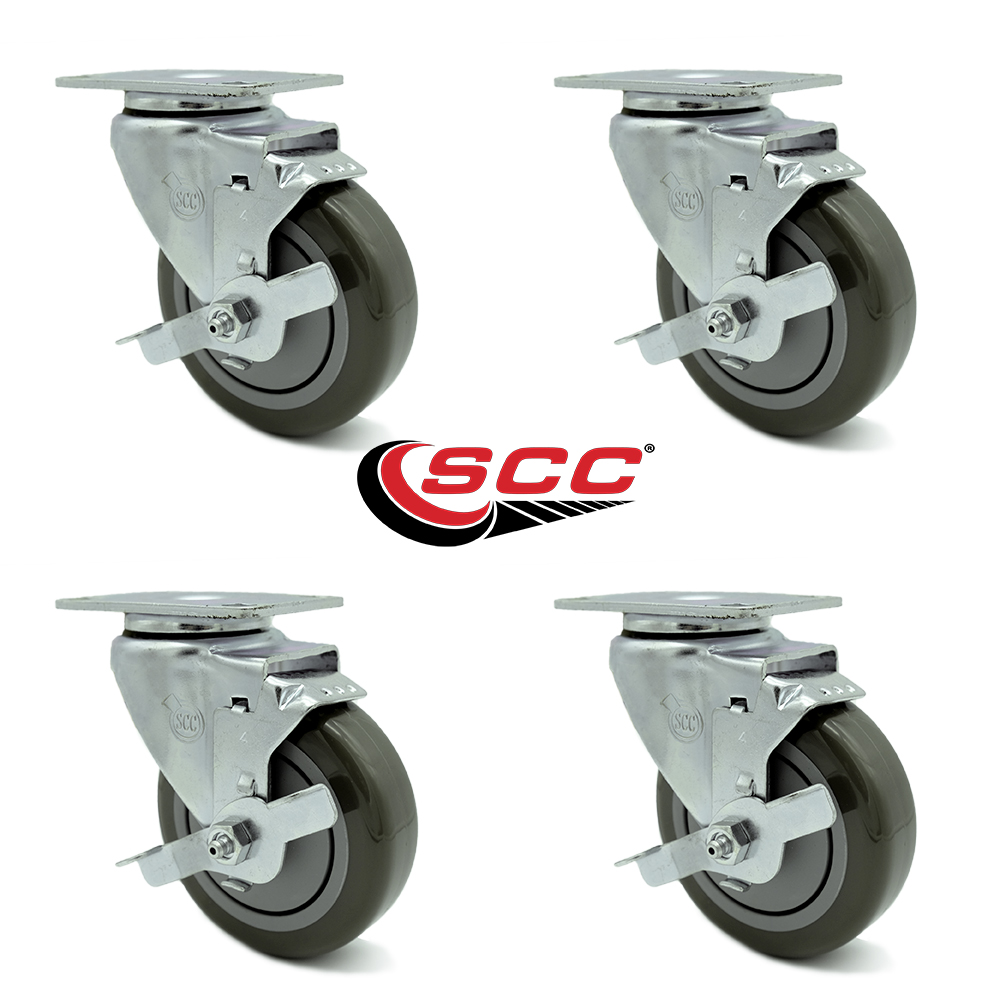

Regency 600CSW415WB U-Boat Utility Cart Replacement Caster Set – 4 Inch Gray Poly Wheel - Includes 4 Swivel Casters with Brakes - Set of 4 - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

REG-SCC-20S414-PPUB-TLB-TP2-4

Condition

new

Quantity

4

UPC

734005057447

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

11 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

5/16" (hardware not included)

Bore Diameter UofM

inches

Capacity

1400

Color

4 Swivel - Brakes - Top Plate

Durometer

60D

Feature

4 casters with top lock brakes

Heat Capacity

-20 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

5-1/8"

Locking Type

(4) Top lock brakes

Lower Temperature

-20

Lower Temperature UofM

F

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

5-1/8"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

4" Gray Polyurethane Wheel

Top Plate Size

2-1/2" x 3-5/8"

Tread Width UofM

inches

Type

(4) swivel casters w/top lock brakes

Wheel Bearing

Sealed Precision Ball Bearing

Wheel Diameter

4

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

4" x 1.25"

Wheel Type

Polyurethane on Polyolefin

Description

High quality casters for Regency U-Boat utility carts. Listing is for a set of four (4) Service Caster Series #20 swivel casters with brakes and 4 inch diameter by 1-1/4 inch wide gray polyurethane tread on gray polyolefin core wheels. These Regency replacement casters are non-marking and non-marring. Supports 1,400 total pounds (lbs.) at 350 pounds (lbs.) per caster. When searching for a reliable and durable solution to your Regency Utility Cart replacement caster needs, consider Service Caster Series 20 top plate polyurethane tread on polyolefin core wheel casters. The Service Caster Series #20 features polyurethane tread on polyolefin core wheels that offer a softer tread for smoother travel while also resisting damage from debris. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these Service Caster high performance Regency Utility Cart replacement casters balance high pay loads with smooth and quiet operation. These versatile casters are ideal for a wide range of applications, but are commonly used on Regency Utility Carts. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • Fits Regency U-Boat Utility Carts • Floor Safe Wheels - Non-marking & Non-marring • Weight Capacity: 1400 • Overall Top Plate Dimensions: 3-1/8" x 4-1/8"; Mounting Hole Dimensions: 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"
