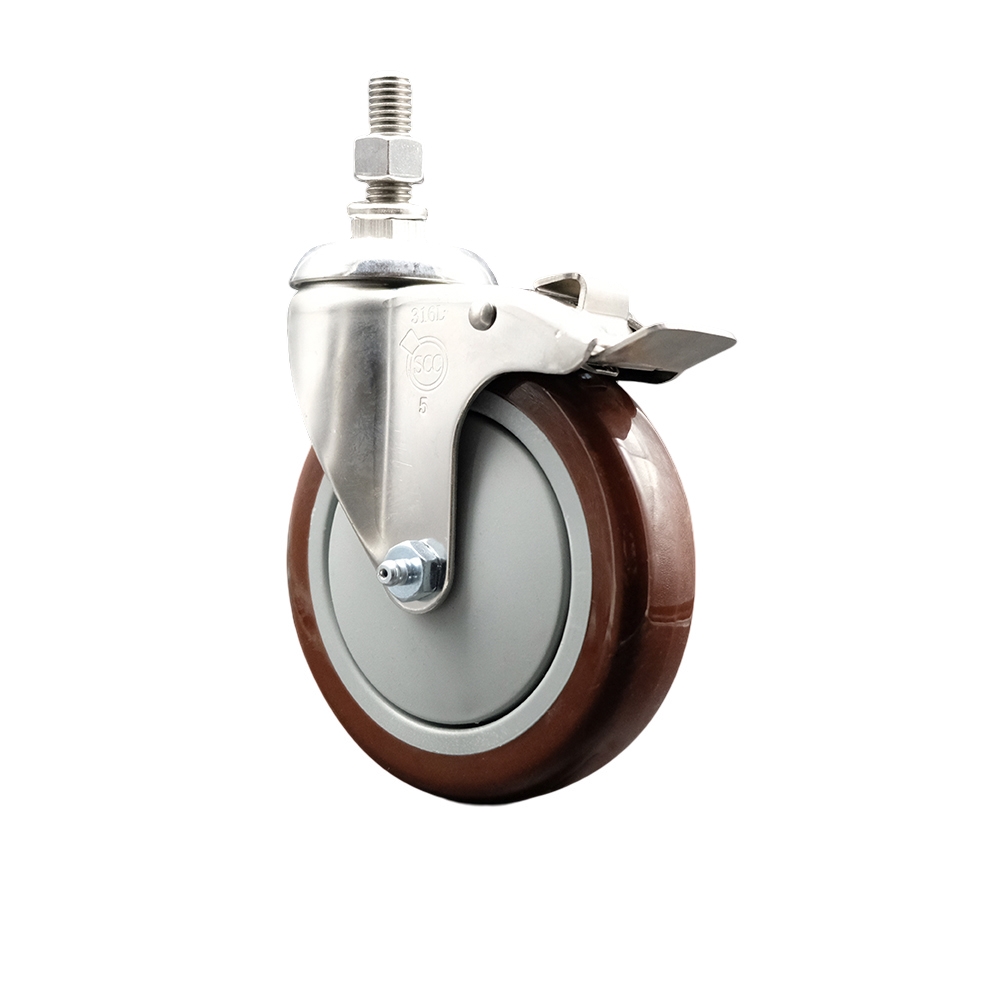

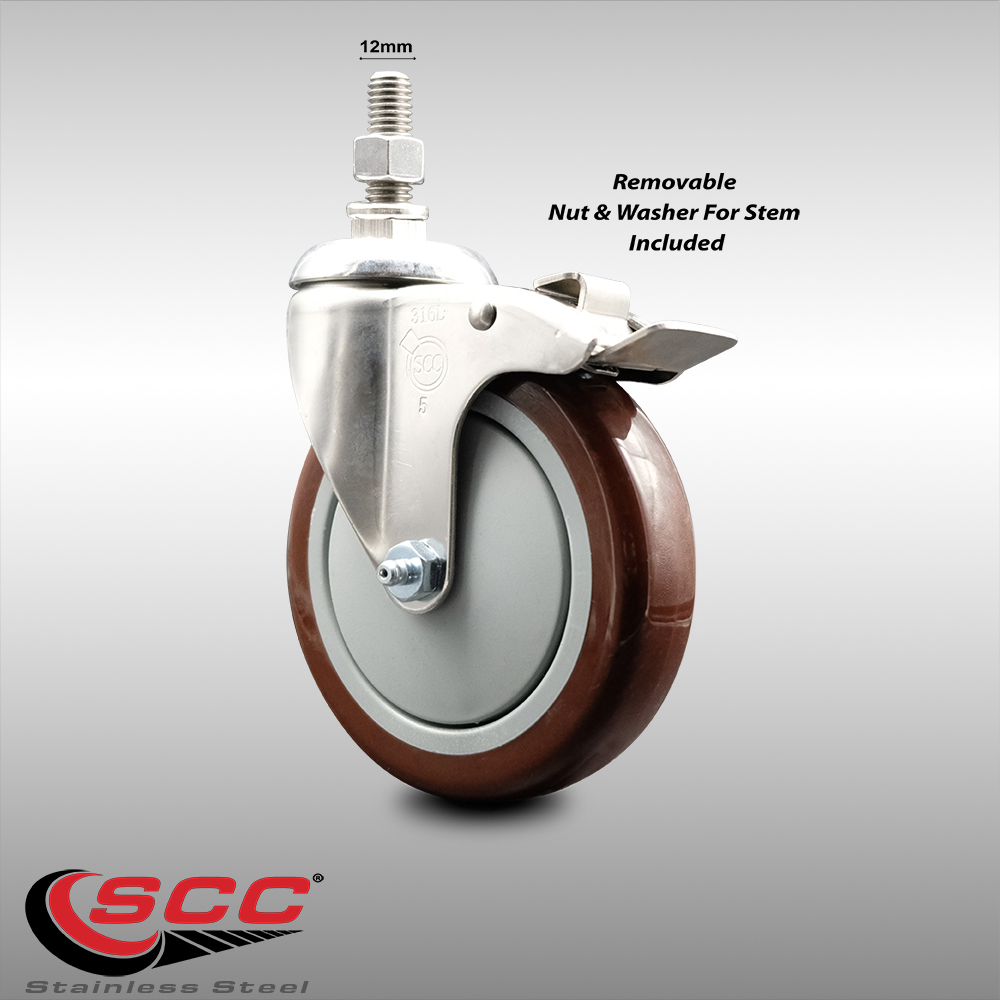

Polyurethane Swivel Stem Caster with 5 Inch Maroon Caster Wheel and Total Lock Brake - 12mm Metric Threaded Stem - 316 Stainless Steel Caster - 350 lbs. Capacity Per Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-SS316TSTTL20S514-PPUB-MRN-M1215

Condition

new

Quantity

1

UPC

734005014006

Dimensions (L x W x H)

5 x 5 x 5 in

Shipping weight

4 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

350

Color

Swivel - Total Lock Brake - 12MM Stem

Durometer

60D

Feature

Total lock brake

Heat Capacity

-20 degrees F to 180 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

6-1/8"

Locking Type

Total lock brake

Lower Temperature

-20

Lower Temperature UofM

F

Material Type

Polyurethane Tread on Polyolefin Core

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/8"

Mounting Type

Threaded Stem

Plating/Coating

316 Polished Stainless Steel

Casters Mounting Method

Stem

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Wheel

Stain Resistant

Yes

Stem

12MM-1.75 x 1-1/2" Threaded Stem

Stem Diameter

12MM

Stem Length

1.5

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

1.5

Tread Width

1.25

Tread Width UofM

inches

Type

swivel caster w/ total lock brake

Wheel Bearing

Precision Ball Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Polyolefin Core

Wheel Size

5" x 1-1/4"

Wheel Type

Polyurethane Tread on Polyolefin Core

Description

Listing is for one (1) Service Caster Series #20 stainless steel swivel caster with a 5" diameter by 1-1/4" wide maroon polyurethane wheel and a 12mm-1.75 X 1-1/2" threaded stem with total lock brake capable of supporting 350 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s 316 stainless steel polyurethane wheel casters. SS316 casters are ideal for light and medium duty material handling, carts, equipment, and shop projects. Built with 316 stainless steel, which contains additional molybdenum and nickel content, making it more corrosion resistant than standard 304 stainless steel. The non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Stainless Steel Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. Wheels are offered in five different colors – Gray, Blue, Black, Maroon, and Red. • Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster • All casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
