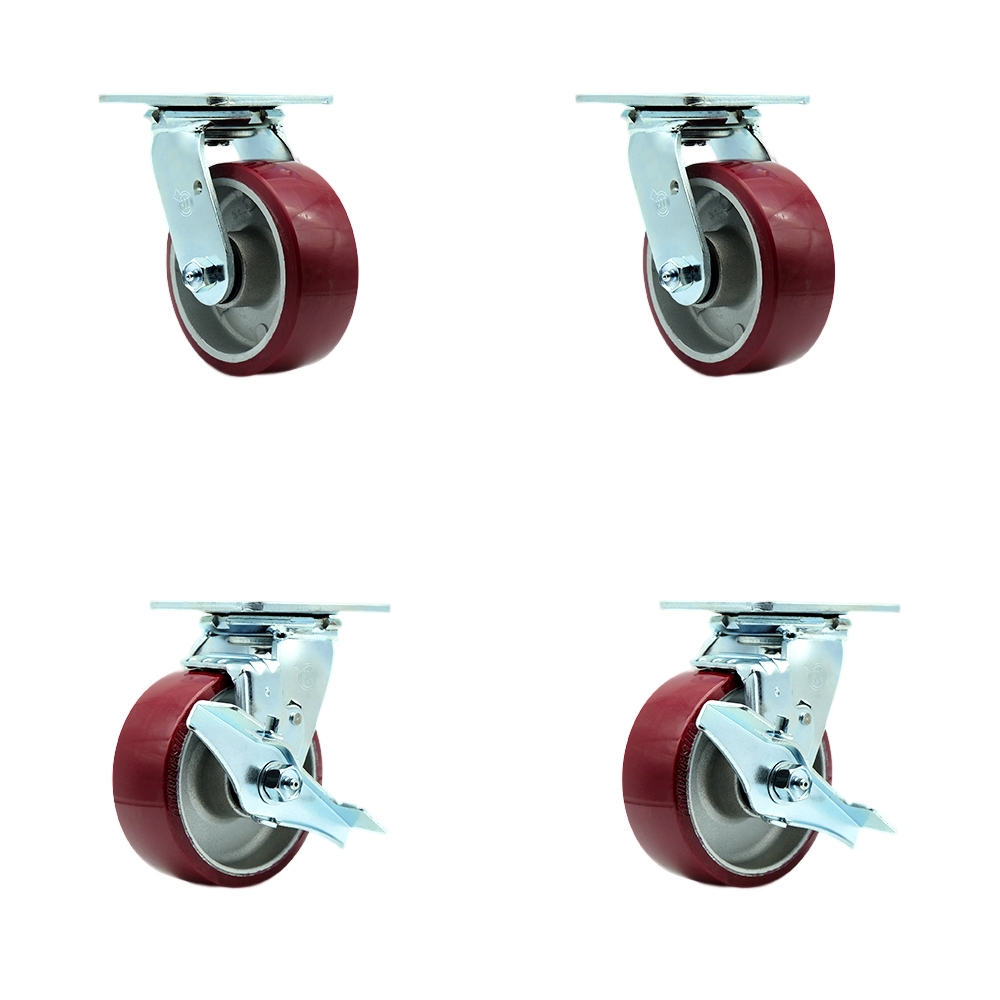

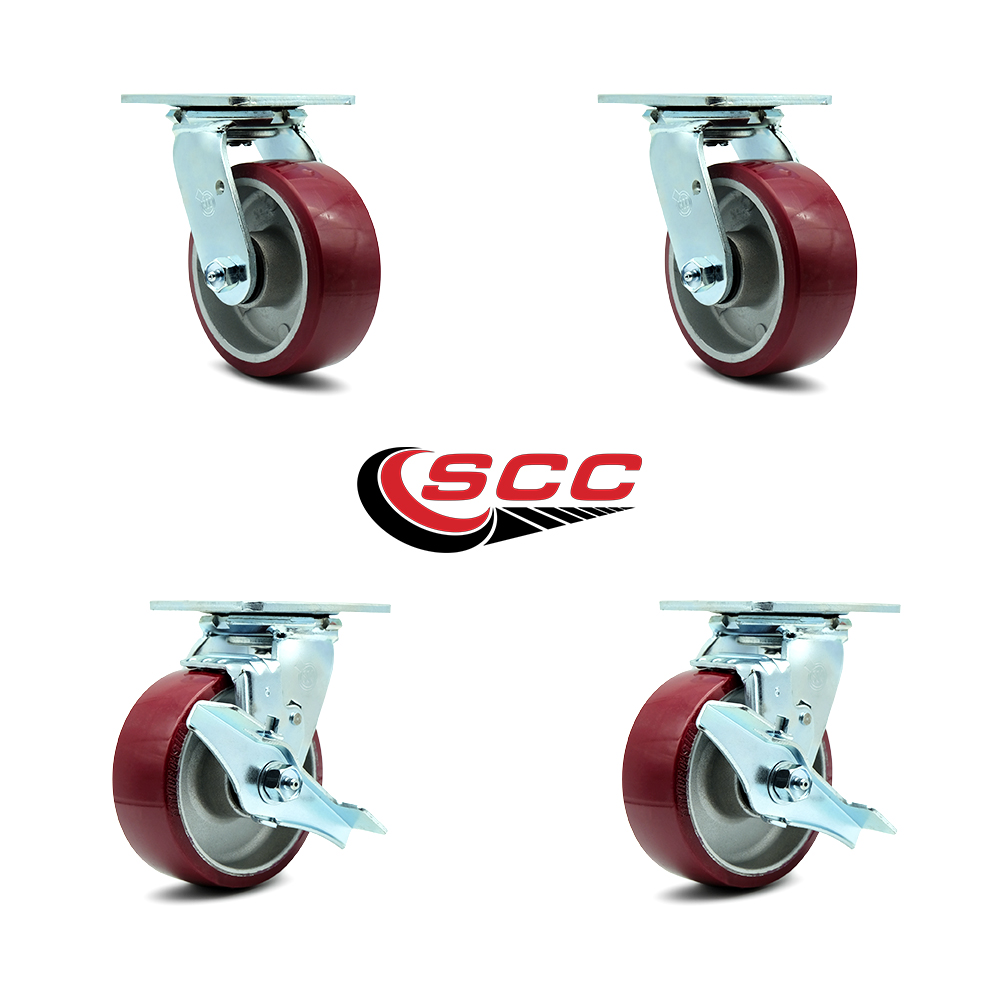

Polyurethane on Aluminum Swivel Top Plate Casters Set of 4 Heavy Duty with 5 Inch Wheels - Includes 2 Swivel with Brakes and 2 Swivel – 3,600 lbs. Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-30CS520-PAR-2-TLB-2

Condition

new

Quantity

4

UPC

670533872865

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

23 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

900

Color

4 Swivel w/2 Top Lock Brakes

Durometer

95A

Feature

2 casters with top lock brakes

Heat Capacity

-45 degrees F to 180 degrees F

Item Weight Unit of Measure

pounds

Load Height

6-1/2"

Locking Type

(2) Top lock brakes

Lower Temperature

-45

Lower Temperature UofM

F

Maximum Temperature

180

Maximum Temperature UofM

F

Mounting Height

6-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

5" Maroon Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

(2) swivel casters & (2) swivel casters w/top lock brakes

Wheel Bearing

Roller Bearing

Wheel Diameter

5

Wheel Diameter UofM

inches

Wheel Material

Polyurethane Tread on Aluminum Core

Wheel Size

5" x 2"

Wheel Type

Polyurethane tread on aluminum core

Description

Listing is for a set of four (4) Service Caster Series #30 swivel casters, two (2) with top locking brakes, with 5" diameter by 2" wide maroon polyurethane tread on silver aluminum core wheels capable of supporting a total weight of 3,600 lbs. (900 lbs. per caster).When searching for a reliable and durable solution to your caster needs, rely on Service Caster Series 30 polyurethane aluminum wheel casters. The Series #30 features heavy duty polyurethane wheels that are chemically bonded to an aluminum core, providing a smooth roll over uneven surfaces without marking or marring floors. Finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway, these versatile casters are ideal for a wide range of applications. Use on dollies, platform trucks, warehouse carts and freight terminals, or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 Polyurethane on Aluminum casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 4": 700 lbs Capacity/Caster, 5": 900 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
