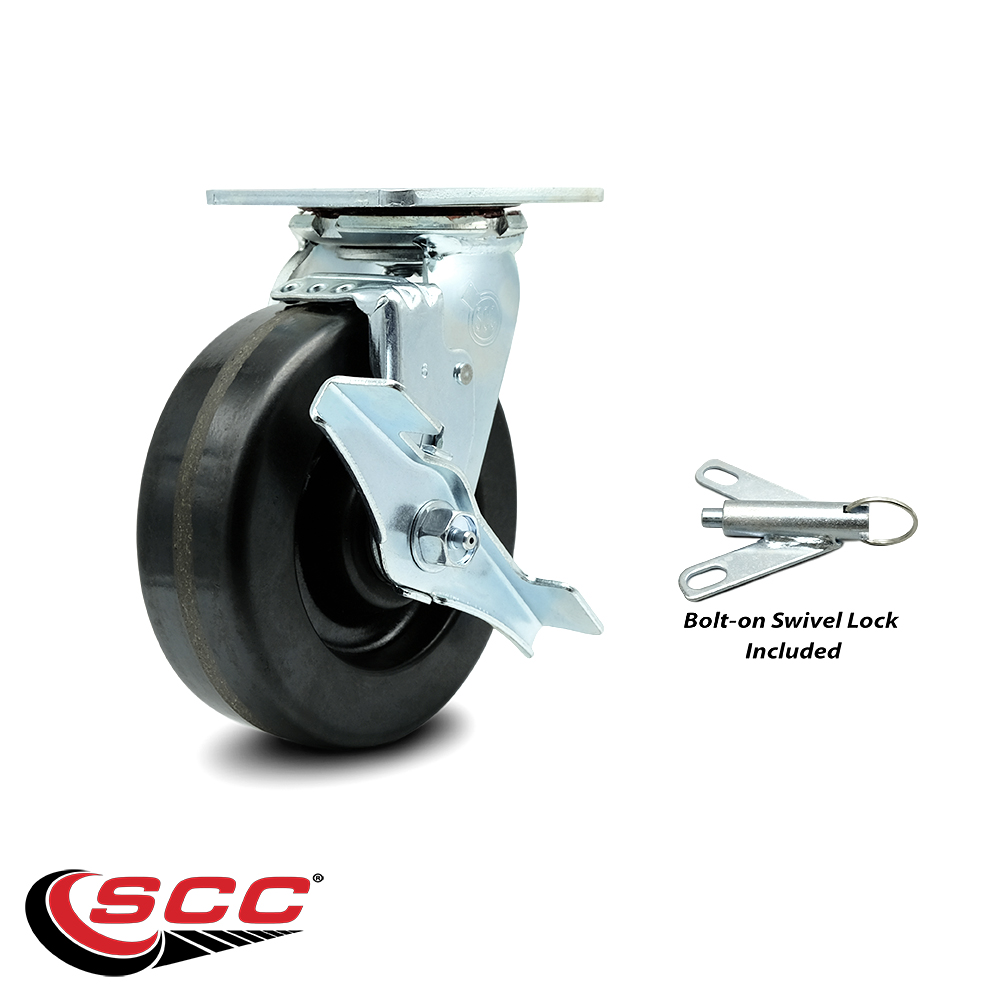

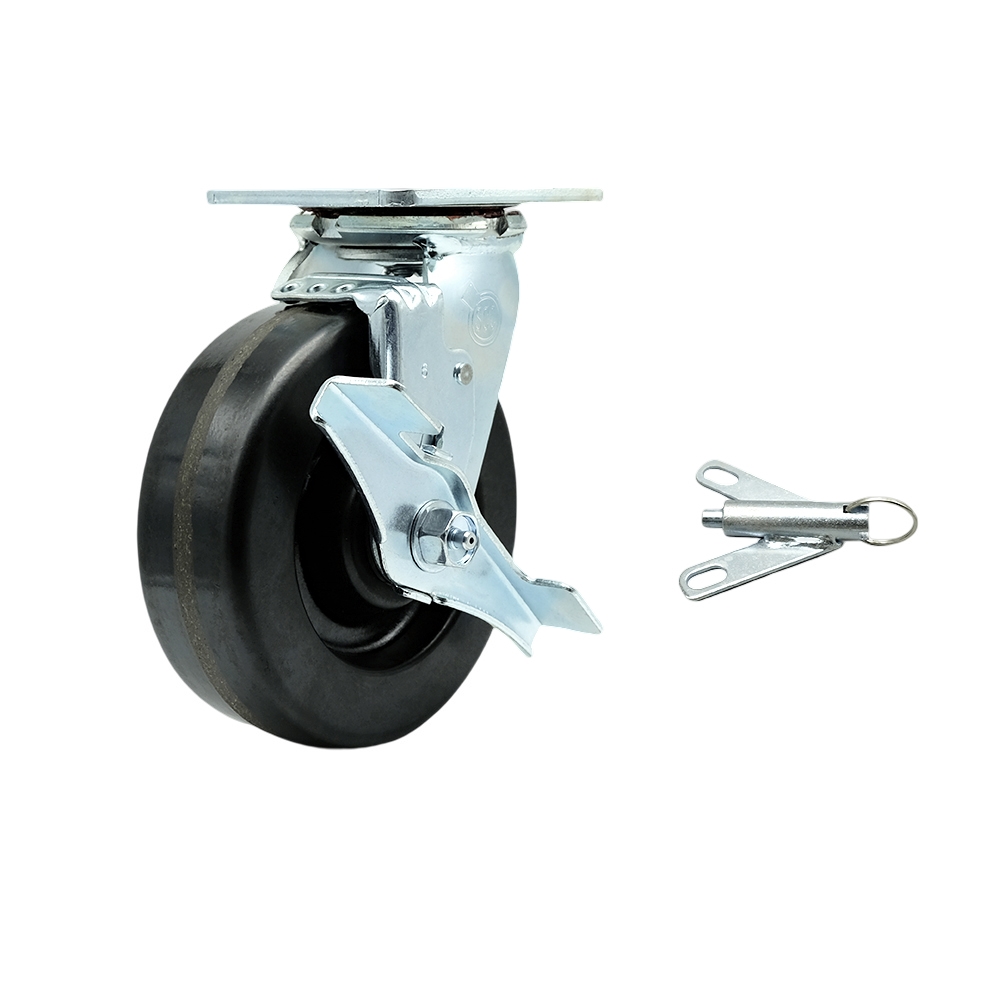

Phenolic Swivel Top Plate Heavy Duty Caster with 6 Inch Wheel and Top Lock Brake and Bolt on Swivel Lock – 1,200 lbs. Capacity/Caster - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #30

SKU

SCC-30CS620-PHR-TLB-BSL

Condition

new

Quantity

1

UPC

670533935799

Dimensions (L x W x H)

12 x 12 x 7.5 in

Shipping weight

6.8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

3/8" (hardware not included)

Capacity

1200

Color

Swivel - Brake & Bolt on Swivel Lock - Black

Durometer

90D

Heat Capacity

-50 degrees F to 250 degrees F

Item Weight Unit of Measure

pounds

Load Height

7-1/2"

Locking Type

Top Lock Brake & Bolt on Swivel Lock

Lower Temperature

-50

Lower Temperature UofM

F

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

7-1/2"

Mounting Type

Top Plate

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Plate

Locking Castersor Wheels

Yes

Swivels

Yes

Size

6" Wheel

Top Plate Size

4" x 4-1/2"

Tread Width

2

Tread Width UofM

inches

Type

Swivel caster w/top lock brake & bolt on swivel lock

Wheel Bearing

Roller Bearing

Wheel Diameter

6

Wheel Diameter UofM

inches

Wheel Material

Phenolic

Wheel Size

6" x 2"

Wheel Type

Phenolic

Description

Listing is for one (1) Service Caster Series #30 swivel caster with a 6" diameter by 2" wide phenolic wheel with a side lock brake & bolt on swivel lock capable of supporting 1,200 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 30 phenolic wheel casters. The Service Caster Series #30 is ideal for medium and heavy duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #30 Phenolic casters offer various wheel sizes and mounting heights: 3-1/4" Wheel: 4-1/4" mounting height; 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. • Weight Capacity: 3-1/4": 700 lbs Capacity/Caster, 4": 800 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. • Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position.
