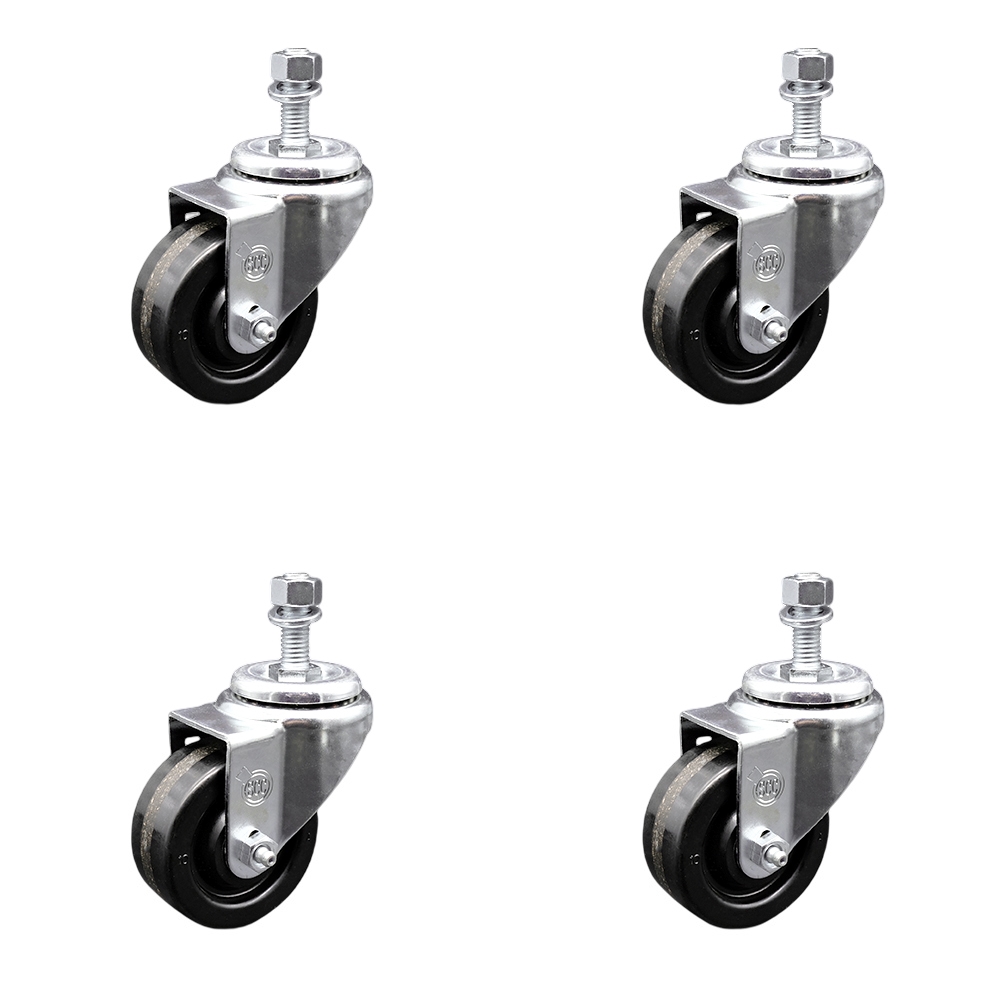

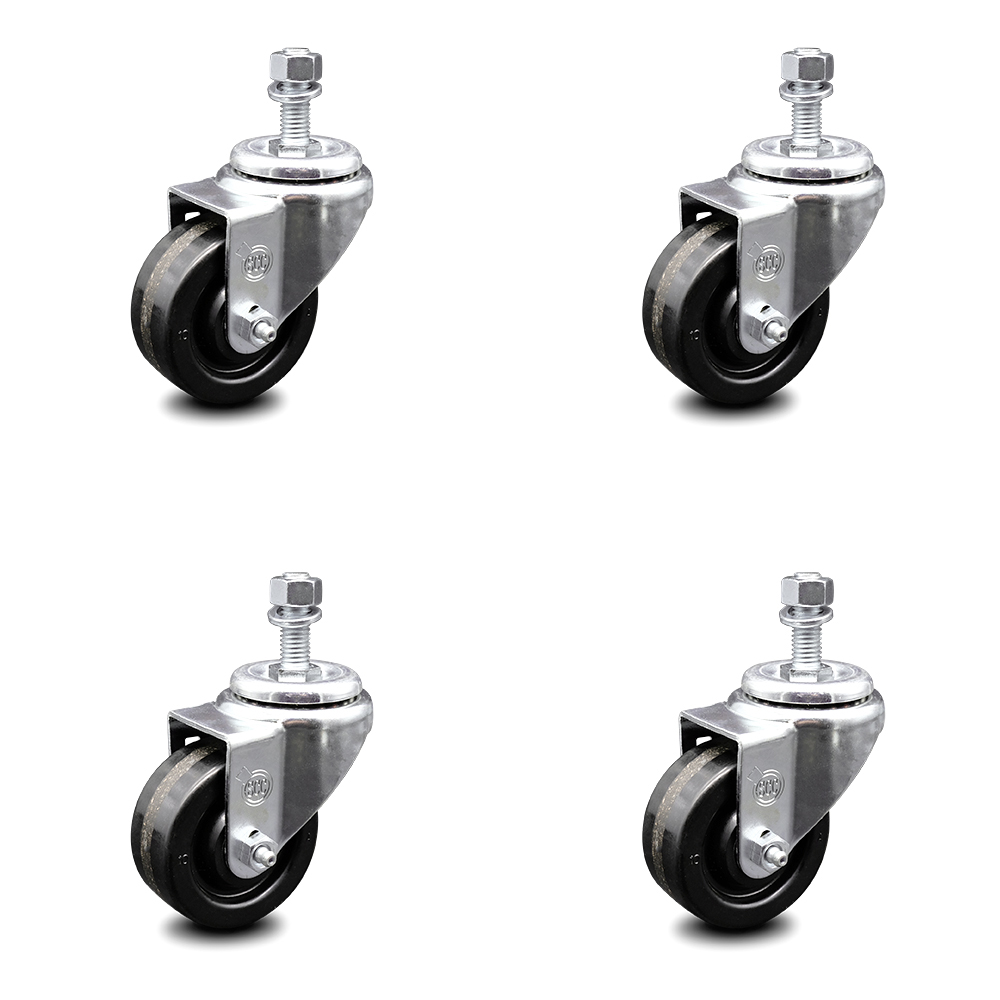

Phenolic Swivel Threaded Stem Caster Set of 4 w/3.5" x 1.25" Black Wheels and 12mm Stems - Includes 4 Swivel - 1200 lbs Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

Model

Series #20

SKU

SCC-TS20S3514-PHS-M1215-4

Condition

new

Quantity

4

UPC

011586532618

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

8 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Capacity

300

Color

4 Swivel - No Brakes - Black

Durometer

90D

Heat Capacity

-50 degrees F to 250 degrees F

Item Dimension Unit of Measure

inches

Item Weight Unit of Measure

pounds

Load Height

4-5/8"

Lower Temperature

-50

Lower Temperature UofM

F

Material Type

Phenolic

Maximum Temperature

250

Maximum Temperature UofM

F

Mounting Height

4-5/8"

Mounting Type

Threaded Stem

Plating/Coating

Bright Zinc Plated Finish

Casters Mounting Method

Stem

Swivels

Yes

Size

3.5" Wheel

Stem

12MM-1.75 x 1-1/2" Threaded Stem

Stem Diameter

12MM

Stem Length

1.5

Stem Length UofM

inches

Stem Type

Threaded Stem

Thread Length

1.5

Tread Width

1.25

Tread Width UofM

inches

Type

(4) swivel casters

Wheel Bearing

Plain Bore

Wheel Diameter

3.5

Wheel Diameter UofM

inches

Wheel Material

Phenolic

Wheel Size

3-1/2" x 1-1/4"

Wheel Type

Phenolic

Description

Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) swivel 12mm threaded stem casters with 3.5” diameter by 1-1/4” wide phenolic wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 phenolic casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward. • These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height. • Weight Capacity: 3",3.5", 4", 5", and 6": 300 lbs Capacity/Caster • All casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. • Brake options include a posi lock brake (PLB) or a total lock brake (TTL). The posi lock brake (PLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
