Nylon Swivel Top Plate Light Duty Floor Leveling Caster w/2" Diameter Black Wheel - 220 lbs Total Capacity - Service Caster Brand

Details

Manufacturer

Service Caster

SKU

SCC-TPLV20S50-NYR-220-ZC

Condition

new

Quantity

1

UPC

011586525535

Harmonized code

8302.20.0000

Dimensions (L x W x H)

8 x 8 x 8 in

Shipping weight

1.3 lb

Posted

Sep 17, 2026, 7:00 PM CDT

Specifications

Bolt Size

6mm - 1.00 x 15mm

Capacity

220

Color

Top Plate - 2.87" x 2.87"

Durometer

75D

Item Weight Unit of Measure

pounds

Load Height

2.85"

Mounting Height

2.85"

Mounting Type

Top Plate

Plating/Coating

Diecast Aluminum Powder Coat

Casters Mounting Method

Plate

Locking Castersor Wheels

No

Swivels

Yes

Size

2" Wheel - 1 PC

Top Plate Size

2.87" x 2.87"

Type

Leveling Caster

Wheel Bearing

Plain Bore

Wheel Diameter

2

Wheel Diameter UofM

inches

Wheel Material

Nylon

Wheel Size

2"

Wheel Type

Nylon

Description

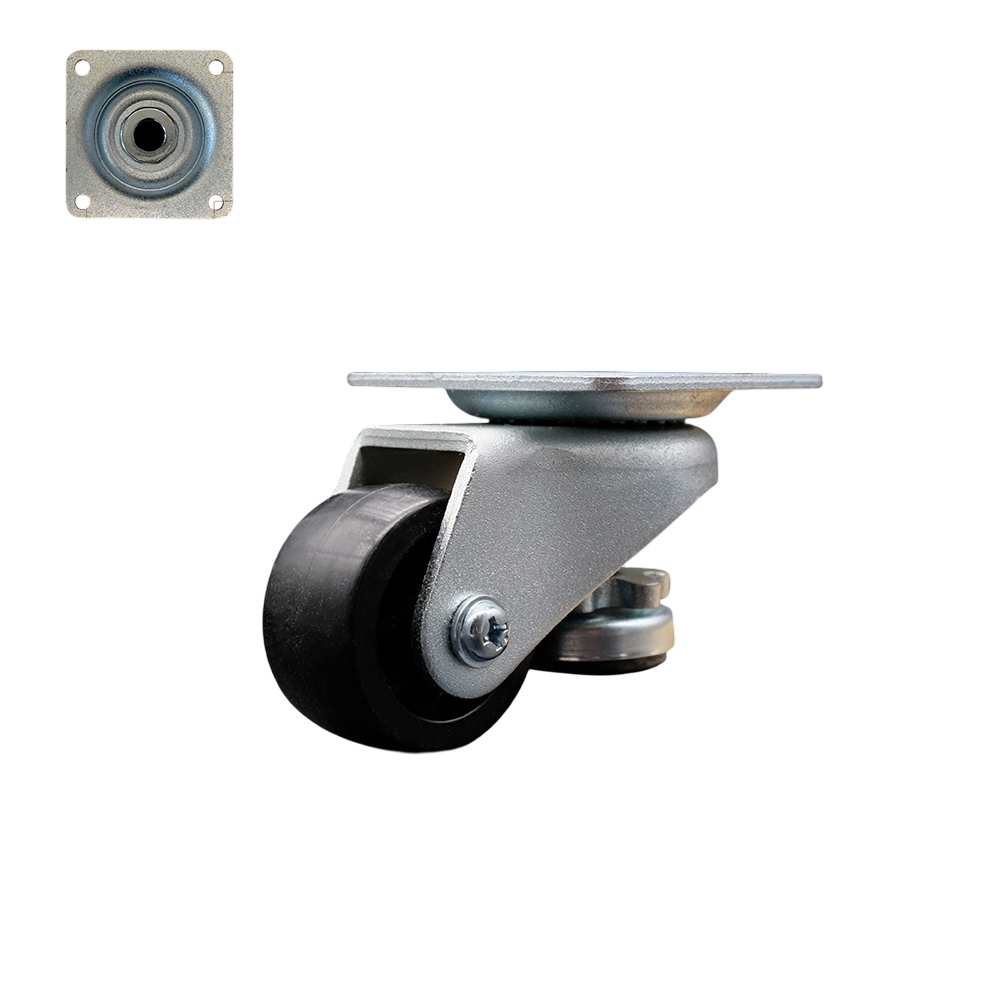

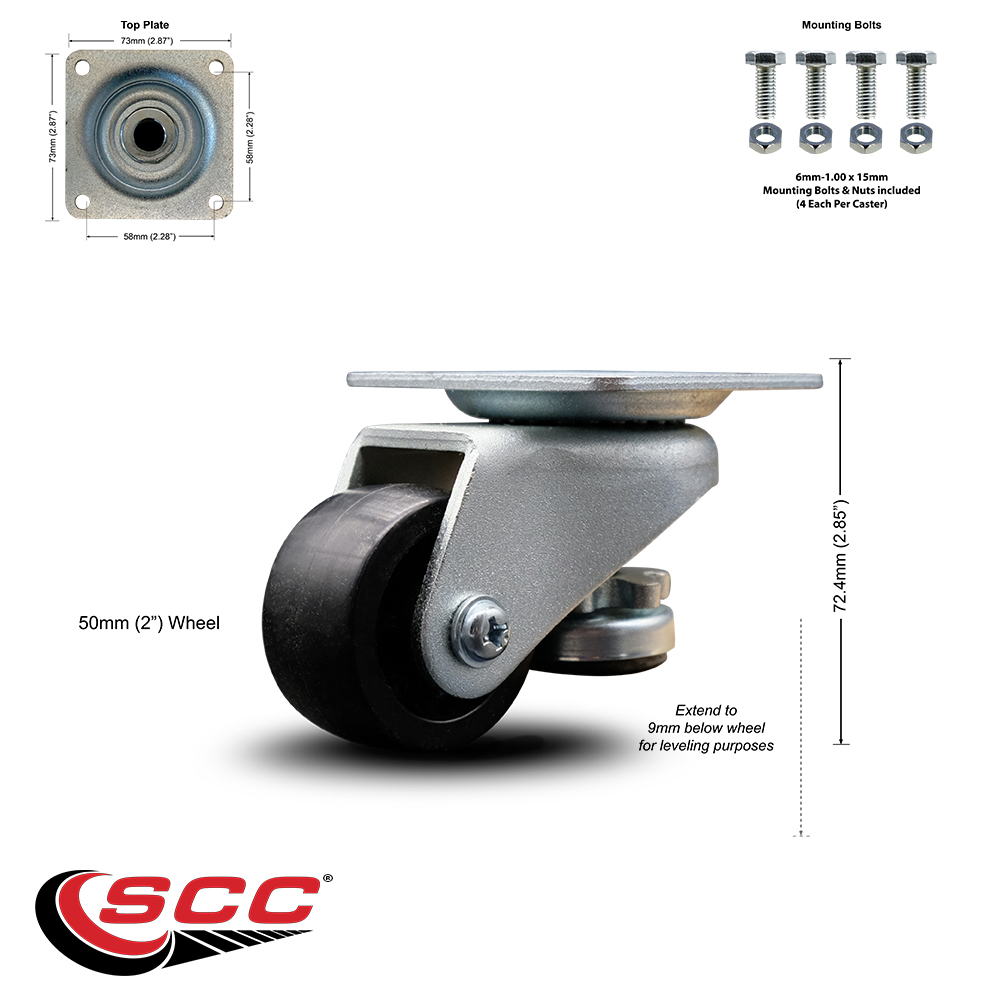

Listing is for one (1) Service Caster leveling caster with top plate and a 2” diameter black nylon wheel. Supports up to 220lbs per caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s adjustable leveling casters. Adjustable leveling casters are ideal for light, medium and heavy duty applications and are used in a broad range of institutional and commercial applications, as well as in the home and office. These casters support heavy computer and medical equipment, industrial tables, display cases, and other furniture that require a level, stable platform while retaining the ability to roll. Simply roll into position then engage the leveling foot by hand or wrench to make completely stationary. Leveling casters have a high quality, die cast aluminum powder coated body and a non-marking nylon wheel. Mounting options include threaded stem bolts and top plates, which include additional fastening bolts to ensure a stable and secure attachment. • These Service Caster Floor Leveling Nylon casters offer various wheel sizes and mounting heights: 1.65” Wheel: 2.8” mounting height; 1.97"” wheel: 3.27” mounting height; 2” wheel: 2.85” mounting height; 2.8” wheel: 3.94” mounting height; 2.44” wheel: 4.02” mounting height; 2.83” wheel: 4.72” mounting height. • Weight capacity ranges from 55 lbs on the 1.65” caster, 330 lbs on the 1.97”, 220 lbs on the 2”, 660 lbs. on the 2.44”, 1100 lbs. on the 2.8” & 2.83". • Top plate measures at 73mm x 73mm (2.87" x 2.87") with a bolt hole pattern of 58mm x 58mm (2.28" x 2.28") and can either be bolted or welded on. • The leveling foot can be raised by hand or wrench. Foot extends up to 9mm (.35")below wheel for leveling purposes.
